White 160
The White 160 is a tractor produced by White. It is equipped with a 504.5 ci 8.3 L engine. The rated power output is 162.47 hp 121.2 kW. Transmission: 3x6 Over/Under. Operating weight: 13300 to 17290 pounds.
Engine Power
162.47 hp
121.2 kW
Fuel & Capacities
74 gal
280.1 L
Transmission
3x6 Over/Under
Operating Weight
13300 to 17290 pounds
White 160 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1987 - 1989
100 SeriesRow-Crop tractor |
|---|---|
1987 - 1989 | |
100 Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | White |
Row-Crop tractor | |
Built in Coldwater, Ohio, USA | |
Original price was $55,000 in 1989 | |
White 160 Engine | |
|---|---|
CDC-Cummins 8.3L 6-cyl diesel | |
Engine details ...  |
White 160 Transmission | |
|---|---|
18-speed partial powershift | |
Transmission details ...  |
White 160 Power | |
|---|---|
PTO (claimed) | 160 hp
119.3 kW |
Drawbar (tested) | 140.37 hp
104.7 kW |
PTO (tested) | 162.47 hp
121.2 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Final drives | planetary |
Differential lock | hydraulic rear |
Power steering | |
Independent hydraulic wet disc brakes | |
Cab standard with air-conditioning. | |
Capacity | |
|---|---|
Fuel | 74 gal
280.1 L |
Hydraulic system | 23 gal
87.1 L |
Hydraulics | |
|---|---|
Type | closed center pressure compensated |
Capacity | 23 gal
87.1 L |
Pressure | 2250 psi
155.1 bar |
Valves | 2 or 3 |
Pump flow | 22 gpm
83.3 lpm |
Tractor hitch | |
|---|---|
Rear Type | III/II |
Control | position and draft control |
Rear lift | 7035 lbs
3191 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | hydraulic wet disc |
Rear PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 112 inches
284 cm |
4WD Wheelbase | 91 inches
231 cm |
Weight | 13300 to 17290 pounds |
Front tire | 11.00-16 |
Rear tire | 18.4R-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 62 |
Batteries | 2 |
Battery volts | 12 |
References | |
|---|---|
 | |
White 160 published in 1987 |
Engine
Engine Detail — 504.5 ci / 8.3 L Diesel
Manufacturer | CDC-Cummins |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled inline |
Displacement | 504.5 ci
8.3 L |
Bore/Stroke | 4.49x5.32 inches
114 x 135 mm |
Fuel system | direct injection |
Air cleaner | dual paper elements |
Compression | 17.3:1 |
Rated RPM | 2200 |
Starter volts | 12 |
Oil capacity | 23.5 qts
22.2 L |
Coolant capacity | 26.6 qts
25.2 L |
Transmission

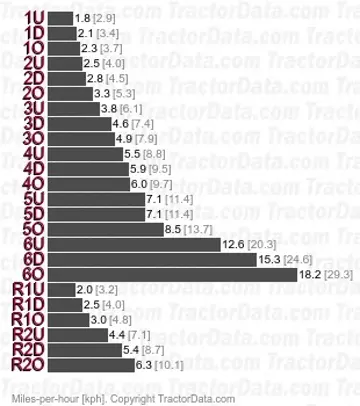

Transmission — 3x6 Over/Under
Transmission | 3x6 Over/Under |
Type | partial powershift |
Gears | 18 forward and 6 reverse |
Clutch | 330.2 dry discs |
Six forward and two reverse gears with an over and under powershift for each gear. | |
 | |
Dimensions
White 160 Tires | |
|---|---|
Ag front | 11.00-16 |
Ag rear | 18.4R-38 |
Dimensions | |
|---|---|
2WD Wheelbase | 112 inches
284 cm |
4WD Wheelbase | 91 inches
231 cm |
Length | 180 inches
457 cm |
Width | 115 inches
292 cm |
2WD Height | 120 inches
304 cm |
4WD Height | 122 inches
309 cm |
Bar rear axle | 3.75 by 96 inches
95 by 2438 mm |
Bar rear axle | 3.75 by 115 inches
95 by 2921 mm |
2WD Front tread | 60 to 80 inches
152 to 203 cm |
Front tread | 63.1 to 80.8 inches
160 to 205 cm |
Rear tread | 60 to 106 inches
152 to 269 cm |
Rear tread | 65 to 126 inches
165 to 320 cm |
White 160 Weight | |
|---|---|
2WD Shipping | 13300 lbs
6032 kg |
4WD Shipping | 14800 lbs
6713 kg |
Operating | 17290 lbs
7842 kg |
Ballasted | 18850 lbs
8550 kg |
Tests
Nebraska Tractor Test 1607 | |
|---|---|
Diesel 18-speed 4WD
April 5 - 19, 1988
Link: Nebraska Tractor Test 1607 file | |
PTO performance | |
Power at rated engine speed | 162.47 hp
121.2 kW |
Fuel use | 9.2 gal/hour
34.8 l/hour |
Power at rated PTO speed | 165.97 hp
123.8 kW |
Fuel use | 9.3 gal/hour
35.2 l/hour |
Drawbar performance | |
Max power | 140.37 hp
104.7 kW |
Fuel use | 9.1 gal/hour
34.4 l/hour |
Gear 4-direct used for power test. | |
Max pull | 18055 lbs
8189 kg |
Gear 2D used for pull test. | |

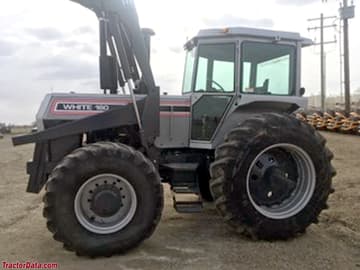

Photos
