White 2-55

The White 2-55 is a tractor produced by White. It is equipped with a 199.4 ci 3.3 L engine. The rated power output is 53.32 hp 39.8 kW. Transmission: 16 forward and 4 reverse. Drive type: 4x2 2WD. Operating weight: 5072 to 6195 pounds.

Engine Power
53.32 hp 39.8 kW
Drive & Traction
4x2 2WD
Fuel & Capacities
15.9 gal 60.2 L
Transmission
16 forward and 4 reverse
Operating Weight
5072 to 6195 pounds

White 2-55 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

White 2-55 tractor photo
1982 - 1987 Field Boss SeriesUtility tractorIseki built
1982 - 1987
Field Boss Series
Utility tractor
Iseki built
1982 - 1987
Field Boss Series
Utility tractor
Iseki built
Production
Distributor
White
Manufacturer
Iseki
Utility tractor
Built in Japan
Variants
Iseki T6000
similar tractor
White 2-55 Engine
Isuzu 3.3L 4-cyl diesel
Engine details ...
White 2-55 Transmission
16-speed synchromesh
Transmission details ...
White 2-55 Power
PTO (claimed)
53.32 hp 39.8 kW
Drawbar (tested)
47.40 hp 35.3 kW
PTO (tested)
53.32 hp 39.8 kW
Performance test details ...
Mechanical
Drive
4x2 2WD
4x4 MFWD 4WD (optional)
Differential lock
foot-activated standard
Steering
power
Wet disc brakes
Two-post ROPS. Optional canopy.
Capacity
Fuel
15.9 gal 60.2 L
Hydraulic system
8.8 gal 33.3 L
Hydraulics
Type
open center
Capacity
8.8 gal 33.3 L
Pressure
2415 psi 166.5 bar
Valves
1 to 3
Total flow
11.9 gpm 45.0 lpm
Tractor hitch
Rear Type
II/I
Rear lift
3,641 lbs 1651 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540/ground
Dimensions & Tires
Wheelbase
80.3 inches 203 cm
Weight
5072 to 6195 pounds
Front tire
6.50-16
Rear tire
14.9-28 (2WD)
Full dimensions and tires ...
Electrical
Charging system
alternator
Charging amps
35
Batteries
2
Battery volts
12
References
2-55 references literature
1100 Series Front End Loaders published in 1987, by White
2-55/2-65/2-75 Field Boss Tractors published in 1986, by White

Engine

White 2-55 tractor photo
1982 - 1987 Field Boss SeriesUtility tractorIseki built
1982 - 1987
Field Boss Series
Utility tractor
Iseki built
1982 - 1987
Field Boss Series
Utility tractor
Iseki built

Engine Detail — 199.4 ci / 3.3 L Diesel

Manufacturer
Isuzu
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
199.4 ci 3.3 L
Bore/Stroke
4.016x3.937 inches 102 x 100 mm
Air cleaner
dry with pre-cleaner
Pre-heating
glow plugs
Rated RPM
2200
Idle RPM
675-2420
Starter volts
12
Oil capacity
10.5 qts 9.9 L
Coolant capacity
14.9 qts 14.1 L

Transmission

White 2-55 tractor photo
1982 - 1987 Field Boss SeriesUtility tractorIseki built
1982 - 1987
Field Boss Series
Utility tractor
Iseki built
1982 - 1987
Field Boss Series
Utility tractor
Iseki built

Transmission — 16 forward and 4 reverse synchromesh

Type
synchromesh
Gears
16 forward and 4 reverse
Oil capacity
35.3 qts 33.4 L

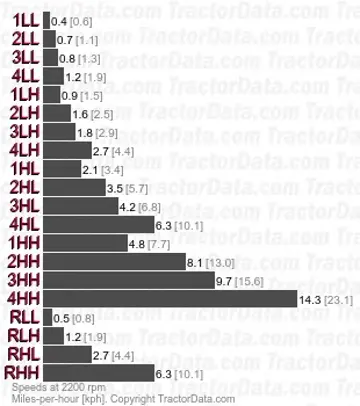

Three gears, plus reverse, with high-low creeper and high-low auxiliary ranges.
With 14.9-28 rear tires. Speeds expressed as gear-creeper-auxiliary.
2-55 synchromesh speeds

Dimensions

White 2-55 tractor photo
1982 - 1987 Field Boss SeriesUtility tractorIseki built
1982 - 1987
Field Boss Series
Utility tractor
Iseki built
1982 - 1987
Field Boss Series
Utility tractor
Iseki built
White 2-55 Tires
Standard tires (ag)
Front: 6.50-16. Rear: 14.9-28 (2WD)
Front: 9.50-24. Rear: 16.9-30 (4WD)
Dimensions
Wheelbase
80.3 inches 203 cm
Length
137.4 inches 348 cm
Width
71.6 inches 181 cm
Height (exhaust)
94 inches 238 cm
Clearance (front axle)
16.9 inches 42 cm
White 2-55 Weight
Shipping
5,072 lbs (2WD) 2300 kg
Operating
6,195 lbs (4WD) 2810 kg
Ballasted
7,055 lbs 3200 kg

Tests

White 2-55 tractor photo
1982 - 1987 Field Boss SeriesUtility tractorIseki built
1982 - 1987
Field Boss Series
Utility tractor
Iseki built
1982 - 1987
Field Boss Series
Utility tractor
Iseki built
Nebraska Tractor Test 1466
Diesel 16-speed 4WD March 17 - April 21, 1983 Link: Nebraska Tractor Test 1466 file
PTO performance
Power at rated engine speed
53.32 hp 39.8 kW
Fuel use
3.6 gal/hour 13.6 l/hour
Power at rated PTO speed
45.74 hp 34.1 kW
Fuel use
3.1 gal/hour 11.7 l/hour
Drawbar performance
Max power
47.40 hp 35.3 kW
Fuel use
3.6 gal/hour 13.6 l/hour
Gear 1HH used for power test.
Max pull
4,521 lbs 2050 kg
Gear 2HL used for pull test.

Attachments

White 2-55 tractor photo
1982 - 1987 Field Boss SeriesUtility tractorIseki built
1982 - 1987
Field Boss Series
Utility tractor
Iseki built
1982 - 1987
Field Boss Series
Utility tractor
Iseki built

Photos

White 2-55 tractor photo

White 2-55 tractor photo
