White 6175

The White 6175 is a tractor produced by White. It is equipped with a 505 ci 8.3 L engine. The rated power output is 175.48 hp 130.9 kW. Transmission: 18 forward and 9 reverse. Operating weight: 16750 to 18556 pounds.

Overview

	1993 - 1999 Workhorse 6100 SeriesRow-Crop tractor
1993 - 1999
Workhorse 6100 Series
Row-Crop tractor

Production
Manufacturer	White (a part of AGCO)
Row-Crop tractor
Built in Coldwater, Ohio, USA
Original price was $91,000 in 1999

White 6175 Engine
CDC-Cummins 8.3L 6-cyl diesel
Fuel tank	91 gal 344.4 L
Engine details ...

White 6175 Transmission
18-speed full power shift
Transmission details ...

White 6175 Power
PTO (claimed)	175 hp 130.5 kW
Drawbar (tested)	154.72 hp 115.4 kW
PTO (tested)	192.94 hp 143.9 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Differential hydraulic wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Type	closed center
Pressure	2800 psi 193.1 bar
Valves	3
Pump flow	26 gpm 98.4 lpm

Tractor hitch
Rear Type	III/II
Control	electronic lower-link draft sensing
Rear lift (at 24"/610mm)	8500 lbs 3855 kg
	10800 lbsOptOptional 4898 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000

Dimensions & Tires
Wheelbase	12.5 inches 31 cm
Weight	16750 to 18556 pounds
Front tire	11.00-16
Rear tire	20.8R38D
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

References
Powershift Tractors published in 1996, by White

Engine

Engine Detail — 505 ci / 8.3 L Diesel

Manufacturer	CDC-Cummins 6CT8.3
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	505 ci 8.3 L
Bore/Stroke	4.49x5.32 inches 114 x 135 mm
Fuel system	direct injection
Air cleaner	dual elements with aspirator
Compression	17.3:1
Rated RPM	2200
Starter volts	12

White 6175 Engine

Transmission

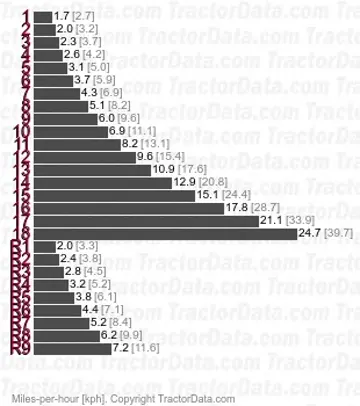

Transmission — 18 forward and 9 reverse full power shift

Manufacturer	Funk-Deere
Type	full power shift
Gears	18 forward and 9 reverse
Clutch	hydraulic wet disc

Dimensions

White 6175 Tires
Ag front	11.00-16
Ag rear	20.8R38D

Dimensions
Wheelbase	12.5 inches 31 cm
Length	188.9 inches 479 cm
Height	119 inches 302 cm
Bar rear axle	98 inch length 2489 mm
Bar rear axle	115 inch length 2921 mm

White 6175 Weight
Shipping	16750 lbs 7597 kg
Operating	18,556 lbs 8417 kg
Ballasted	22,172 lbs 10057 kg

Tests

OCED Tractor Test 1685
Diesel 18-speed 4WD October 16 - 27, 1994 Link: OCED Tractor Test 1685 file
PTO performance
Max power	192.94 hp 143.9 kW
Fuel use	10.8 gal/hour 40.9 l/hour
Power at rated engine speed	175.48 hp 130.9 kW
Fuel use	10.5 gal/hour 39.7 l/hour
Power at rated PTO speed	186.75 hp 139.3 kW
Fuel use	10.8 gal/hour 40.9 l/hour
Drawbar performance
Max power	154.72 hp 115.4 kW
Fuel use	10.6 gal/hour 40.1 l/hour
Gear 8 used for power test.
Max pull	23,273 lbs 10556 kg
Gear 4 used for pull test.

Photos

White 6175 tractor photo
