White 8410

The White 8410 is a tractor produced by White. It is equipped with a 359 ci 5.9 L engine. The listed engine power is 14.21 hp 10.6 kW. Transmission: Quadrashift. Operating weight: 15500 to 16715 pounds.

Engine Power
14.21 hp 10.6 kW
Fuel & Capacities
100 gal 378.5 L
Transmission
Quadrashift
Operating Weight
15500 to 16715 pounds

Overview

White 8410 tractor photo
1998 - 2001 Row-Crop tractor
Production
Manufacturer
White (a part of AGCO)
Row-Crop tractor
Factories
Coldwater, Ohio, USA
Beauvais, France
Original price
$80,000 (1999)
Variants
9745
similar AGCO Allis model
White 8410 Engine
Cummins 5.9L 6-cyl diesel
Fuel tank
100 gal 378.5 L
Engine details ...
White 8410 Power
PTO (claimed)
145 hp 108.1 kW
Drawbar (tested)
127.52 hp 95.1 kW
PTO (tested)
155.91 hp 116.3 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Steering
hydrostatic power
Differential hydraulic wet disc brakes
Cab standard.
Hydraulics
Type
closed center
Valves
3
Pump flow
28 gpm 106.0 lpm
Tractor hitch
Rear Type
II/IIIN
Rear lift
10,400 lbs 4717 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540/1000
Engine RPM
540@1990
1000@2100
Dimensions & Tires
Wheelbase
109 inches 276 cm
Weight
15500 to 16715 pounds
Front tire
11.00-16
Rear tire
18.4R38
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
8410 references literature
White Loaders published in 1999, by AGCO

Engine

Engine Detail — 359 ci / 5.9 L Diesel

Manufacturer
Cummins
Configuration
turbocharged diesel, 6-cylinder, liquid-cooled
Displacement
359 ci 5.9 L
Bore/Stroke
4.016x4.724 inches 102 x 120 mm
Compression
17.4:1
Rated RPM
2200
Starter volts
12

Transmission

Transmission options
32-speed partial power shift
18-speed full power shift

Transmission — Quadrashift

Transmission
Quadrashift
Type
partial power shift
Gears
32 forward and reverse

Transmission — 18 forward and 6 reverse full power shift

Manufacturer
Funk-Deere
Type
full power shift
Gears
18 forward and 6 reverse
Clutch
electro-hydraulic wet disc

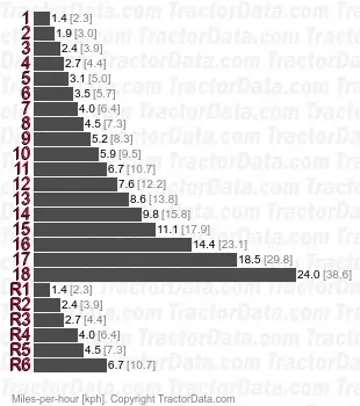

8410 full power shift speeds

Dimensions

White 8410 Tires
Ag front
11.00-16
Ag rear
18.4R38
Dimensions
Wheelbase
109 inches 276 cm
Front tread
60.3 to 88.3 inches 153 to 224 cm
Rear tread
62.1 to 107.6 inches 157 to 273 cm
White 8410 Weight
Shipping
15,500 lbs 7030 kg
Operating
16,715 lbs 7581 kg
Ballasted
18,860 lbs 8554 kg

Tests

OCED Tractor Test 1753
Diesel 18-speed 4WD September 22 - October 8, 1998 Link: OCED Tractor Test 1753 file
PTO performance
Max power
155.91 hp 116.3 kW
Fuel use
8.6 gal/hour 32.6 l/hour
Power at rated engine speed
14.21 hp 10.6 kW
Fuel use
0.8 gal/hour 3.0 l/hour
Power at rated PTO speed
153.34 hp 114.3 kW
Fuel use
8.8 gal/hour 33.3 l/hour
Drawbar performance
Max power
127.52 hp 95.1 kW
Fuel use
8.6 gal/hour 32.6 l/hour
Gear 10 used for power test.
Max pull
18,036 lbs 8181 kg
Gear 4 used for pull test.

Attachments

Attachment overview
White 688 loader
White 688 SL loader

Photos

White 8410

White 8410

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for White 8410.

Estimated Continuous Field Runtime: 135.3 hrs

Approximately 135.3 hours of continuous field operation at ~75% rated power on a full tank (100 gal / 378.5 L).

Estimated 75% Load Fuel Burn~0.7 gal/hr (2.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

White 8410 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for White 8410.

Converted Equivalents:

Horsepower (HP)14.2 hp
Kilowatts (kW)10.6 kW
Metric Horsepower (PS / CV)14.4 PS
