White 8710

The White 8710 is a tractor produced by White. It is equipped with a 505 ci 8.3 L engine. The rated power output is 204.33 hp 152.4 kW. Transmission: 18 forward and 6 reverse. Operating weight: 18800 to 19630 pounds.

Overview

	1998 - 2001 FieldMaster 8010 Series
1998 - 2001
FieldMaster 8010 Series

Production
Manufacturer	White (a part of AGCO)
Factories	Coldwater, Ohio, USA
	Beauvais, France
Original price was $120,000 in 1999

Variants
9775	similar AGCO Allis model

White 8710 Engine
Cummins 8.3L 6-cyl diesel
Fuel tank	120 gal 454.2 L
Engine details ...

White 8710 Transmission
18-speed full power shift
Transmission details ...

White 8710 Power
PTO (claimed)	200 hp 149.1 kW
Drawbar (tested)	177.14 hp 132.1 kW
PTO (tested)	225.28 hp 168.0 kW
Performance test details ...

Mechanical
Four-wheel drive
Power steering
Hydraulic wet disc brakes
Cab standard.

Hydraulics
Type	closed center pressure-flow compensated (PFC)
Pressure	2900 psi 200.0 bar
Valves	4
Pump flow	29 gpm 109.8 lpm
	39 gpmOptOptional 147.6 lpm

Tractor hitch
Rear Type	III/IIIN
Rear lift (at 24"/610mm)	14000 lbs 6350 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000
Engine RPM	1000@2100

Dimensions & Tires
Wheelbase	121 inches 307 cm
Weight	18800 to 19630 pounds
Front tire	16.9-28
Rear tire	18.4R42
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

References
White Loaders published in 1999, by AGCO
Field Master New Generation published in 1998, by AGCO

Engine

Engine Detail — 505 ci / 8.3 L Diesel

Manufacturer	Cummins C8.3A
Configuration	turbocharged aftercooled diesel, 6-cylinder, liquid-cooled
Displacement	505 ci 8.3 L
Bore/Stroke	4.488x5.315 inches 114 x 135 mm
Air cleaner	dual paper elements
Compression	17.3:1
Rated RPM	2200
Starter	electric
Starter volts	12

Transmission

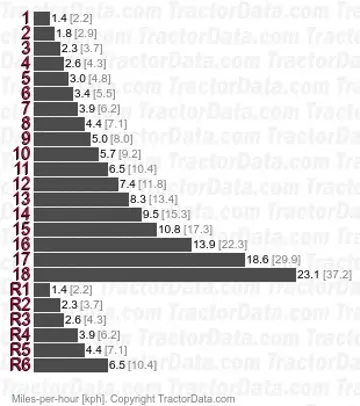

Transmission — 18 forward and 6 reverse full power shift

Manufacturer	Funk-Deere
Type	full power shift
Gears	18 forward and 6 reverse
Clutch	electro-hydraulic wet disc

Dimensions

White 8710 Tires
Ag front	16.9-28
Ag rear	18.4R42

Dimensions
Wheelbase	121 inches 307 cm
Length	203 inches 515 cm
Width	98.2 inches*Minimum width. 249 cm
Height (cab)	121 inches 307 cm
Front tread	60 to 88 inches 152 to 223 cm
Rear tread	64.1 to 128.9 inches 162 to 327 cm

White 8710 Weight
Shipping	18800 lbs 8527 kg
Operating	19630 lbs 8904 kg
Ballasted	26880 lbs 12192 kg

Tests

OCED Tractor Test 1794
Diesel 18-speed 4WD May 7 - 18, 2001 Link: OCED Tractor Test 1794 file
PTO performance
Max power	225.28 hp 168.0 kW
Fuel use	13.5 gal/hour 51.1 l/hour
Power at rated engine speed	204.33 hp 152.4 kW
Fuel use	13.0 gal/hour 49.2 l/hour
Power at rated PTO speed	221.42 hp 165.1 kW
Fuel use	13.4 gal/hour 50.7 l/hour
Drawbar performance
Max power	177.14 hp 132.1 kW
Fuel use	13.0 gal/hour 49.2 l/hour
Gear 11 used for power test.
Max pull	24,468 lbs 11098 kg
Gear 4 used for pull test.

Photos

White 8710 tractor photo
