White FR-180 Turf Boss

The White FR-180 Turf Boss is a tractor produced by White Lawn Tractors. The listed engine power is Gasoline (listed): 18 hp / 13.4 kW. Transmission: infinite forward and reverse. Drive type: 3x2 2WD. Operating weight: 735 lbs 333 kg.

Engine Power

Gasoline (listed): 18 hp / 13.4 kW

Drive & Traction

3x2 2WD

Fuel & Capacities

5 gal 18.9 L

Transmission

infinite forward and reverse

Operating Weight

735 lbs 333 kg

Overview

	1994 - 1995 FR SeriesFront-mount mower FR Series Front-mount mower

Production
Manufacturer	White (a part of MTD)
Front-mount mower

Variants
FR-180C	power-lift deck

White FR-180 Engine
18HP Briggs & Stratton 2-cyl gasoline
Fuel tank	5 gal 18.9 L
Engine details ...

White FR-180 Transmission
hydrostatic
Transmission details ...

Mechanical
Drive	3x2 2WD
Power steering
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	electro-magnetic

Dimensions & Tires
Wheelbase	42 inches 106 cm
Weight	735 lbs 333 kg
Front tire	18x9.50-8
Rear tire	16x6.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery CCA	160
Battery volts	12

References

Riding Mowers - Lawn Tractors - Garden Tractors - FR Series published in 1994, by White

Engine

Engine Detail — Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft V-Twin
Power	18 hp 13.4 kW
Air cleaner	dry
Starter	electric
Starter volts	12

Transmission

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

White FR-180 Tires
Lawn/turf front	18x9.50-8
Lawn/turf rear	16x6.50-8

Dimensions
Wheelbase	42 inches 106 cm
Length	57 inches 144 cm
Width	50 inches 127 cm
Height	45 inches 114 cm
Shipping weight	735 lbs 333 kg

Attachments

Attachment overview
42" front-mount mower deck
52" front-mount mower deck
62" front-mount mower deck
Snowblower
Blade

Photos

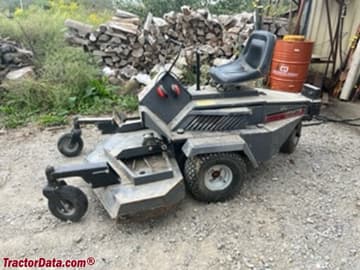

White FR-180 Turf Boss

Recommended Implements & Sizing Guide

Engineering recommendations for White Lawn Tractors White FR-180 Turf Boss based on its 18 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for White Lawn Tractors White FR-180 Turf Boss.

Estimated Continuous Field Runtime: 5.3 hrs

Approximately 5.3 hours of continuous field operation at ~75% rated power on a full tank (5 gal / 18.9 L).

Estimated 75% Load Fuel Burn~0.9 gal/hr (3.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

White Lawn Tractors White FR-180 Turf Boss Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for White Lawn Tractors White FR-180 Turf Boss.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)18 hp

Kilowatts (kW)13.4 kW

Metric Horsepower (PS / CV)18.2 PS
