White GT-1655 Yard Boss
The White GT-1655 Yard Boss is a tractor produced by White Lawn Tractors. It is equipped with a 655 cc 40 ci engine. The rated power output is 16 hp 11.9 kW. Transmission: Eaton 11. Operating weight: 669 lbs 303 kg.
Engine Power
16 hp
11.9 kW
Fuel & Capacities
2.5 gal
9.5 L
Transmission
Eaton 11
Operating Weight
669 lbs
303 kg
White Lawn Tractors White GT-1655 Yard Boss Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.

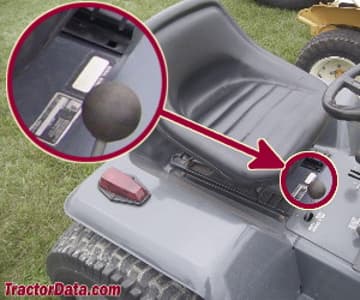

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1980 - 1985
GT SeriesGarden tractor |
|---|---|
1980 - 1985 | |
GT Series | |
Garden tractor | |
Production | |
|---|---|
Manufacturer | White (a part of MTD) |
Garden tractor | |
White GT-1655 Engine | |
|---|---|
16HP Briggs & Stratton 655cc 2-cyl gasoline | |
Fuel tank | 2.5 gal
9.5 L |
Engine details ...  | |
White GT-1655 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | manual |
Front PTO Type | pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 51 inches
129 cm |
Weight | 669 lbs
303 kg |
Front tire | 16x6.50 |
Rear tire | 27x9.50 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 3 (battery) |
Battery volts | 12 |
References | |
|---|---|
 | |
Garden Tractors - Yard Boss GT Series published in 1980, by White* | |
Instruction Manual GT-1655 GT-1855 (4770-3581) published in 1984 | |
Yard-Boss GT-1655 (432 816) published in 1979 | |
1979 Farm Equipment Line published by White | |
*Publication contains known errors. |
Engine
Engine Detail — 655 cc / 40 ci Gasoline
Manufacturer | Briggs & Stratton 401417 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled horizontal-shaft opposed-twin |
Displacement | 655 cc
40 ci |
Bore/Stroke | 3.44x2.16 inches
87 x 55 mm |
Power (gross) | 16 hp
11.9 kW |
Rated RPM | 3500 |
Torque | 25.8 lb-ft
35.0 Nm |
Torque RPM | 2700 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.75 qts
1.7 L |
Oil change | 25 h |
Transmission
Transmission — Eaton 11
Transmission | Eaton 11 |
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse (two-range) |
Oil type | SAE 20SE |
Oil change | 200 h |
Eaton 11 hydrostatic unit with Peerless 2526 two-speed transaxle. | |
 | |

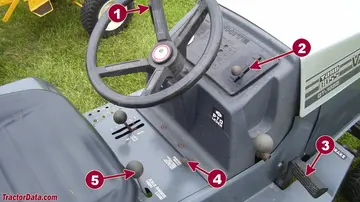

GT-1655 Transmission Controls | |
|---|---|
 | |
1 | Forward/Reverse lever |
2 | Throttle |
3 | Brake |
4 | Parking brake |
5 | Range shift |
Dimensions
White GT-1655 Tires | |
|---|---|
Lawn/turf front | 16x6.50 |
Lawn/turf rear | 27x9.50 |
Dimensions | |
|---|---|
Wheelbase | 51 inches
129 cm |
Height (steering wheel) | 44 inches
111 cm |
Shipping weight | 669 lbs
303 kg |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
50" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

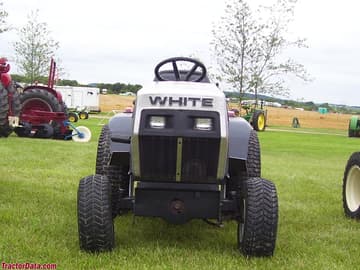

White GT-1655 Yard Boss
White GT-1655 Yard Boss
White GT-1655 Yard Boss
White GT-1655 Yard Boss
White GT-1655 Yard Boss
White GT-1655 operator station and controls.
