White GT-180

The White GT-180 is a tractor produced by White Lawn Tractors. It is equipped with a 693 cc 42.3 ci engine. The rated power output is 18 hp 13.4 kW. Transmission: MTD CruiseMatic. Operating weight: 669 lbs 303 kg.

Overview

	1989 - 1993 GT SeriesGarden tractor
1989 - 1993
GT Series
Garden tractor

Production
Manufacturer	White (a part of MTD)
Garden tractor
Built in Willard, Ohio, USA
Original price was $2,899 in 1990

Variants
GT-180	CVT
GT-185	hydrostatic
840	similar MTD model

White GT-180 Transmission
14-speed CVT
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual (early)
	electric (late)
Mid PTO Type	pulley

Dimensions & Tires
Wheelbase	46 inches 116 cm
Weight	669 lbs 303 kg
Front tire	16x6.5
Rear tire	23x9.5
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery CCA	275
Battery volts	12

References
Owner's Guide GT-180 (770-6693) published in 1989
Owner's Guide GT-180 (770-7892) published in 1993
Lawn & Garden Tractors published in 1990, by White
Tractors - Lawn Mower - Tillers - Chipper/Shredders - Edgers - Multi-Vacs published in 1994, by White
Outdoor Power published in 1995, by White
Outdoor Power published in 1996, by White

Engine

Engine options
18HP Briggs & Stratton 693cc 2-cyl gasoline
18HP Vanguard 2-cyl gasoline

Engine Detail — 693 cc / 42.3 ci Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft opposed-twin
Displacement	693 cc 42.3 ci
Bore/Stroke	3.44x2.28 inches 87 x 58 mm
Power (gross)	18 hp 13.4 kW
Starter	electric
Starter volts	12

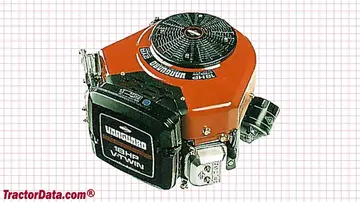

White GT-180 Engine

Engine Detail — Gasoline

Manufacturer	Vanguard
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Power (gross)	18 hp 13.4 kW
Starter	electric
Starter volts	12

White GT-180 Engine

Transmission

Transmission — MTD CruiseMatic

Transmission	MTD CruiseMatic
Type	belt-driven CVT
Gears	14 forward and 7 reverse
Oil capacity	1 qts 0.9 L
Oil type	Shell Darina
Oil change	sealed unit, owner service is not recommended
Continuously-variable belt/pulley transmission with 7 speed limit settings. Transaxle provides two geared forward ranges, plus reverse.

	Shell Darina

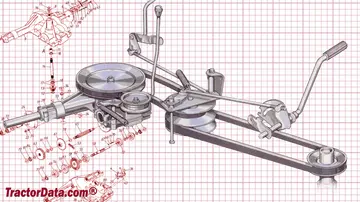

White GT-180 Transmission

Dimensions

White GT-180 Tires
Lawn/turf front	16x6.5
Lawn/turf rear	23x9.5

Dimensions
Wheelbase	46 inches 116 cm
Length	70 inches 177 cm
Height	39 inches 99 cm
Weight	669 lbs 303 kg

Attachments

Attachment overview
46" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

46" Mower deck
Type	mid-mount White
	3-blade with manual lift
Cutting width	46 inches 116 cm

Photos

White GT-180 tractor photo
