White GT-1822

The White GT-1822 is a tractor produced by White Lawn Tractors. It is equipped with a 693 cc 42.3 ci engine. The rated power output is 18 hp 13.4 kW. Transmission: Peerless 2337. Operating weight: 850 lbs 385 kg.

Overview

	1980 Garden tractorMTD built
1980
Garden tractor
MTD built

1980
Garden tractor
MTD built

Production
Distributor	White
Manufacturer	MTD
Garden tractor

White GT-1822 Engine
18HP Briggs & Stratton 693cc 2-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

White GT-1822 Transmission
16-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.

Tractor hitch
Rear Type	0 OptOptional

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual
Mid PTO Type	pulley

Dimensions & Tires
Wheelbase	48.5 inches 123 cm
Weight	850 lbs 385 kg
Front tire	16x6.50
Rear tire	23x8.50
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

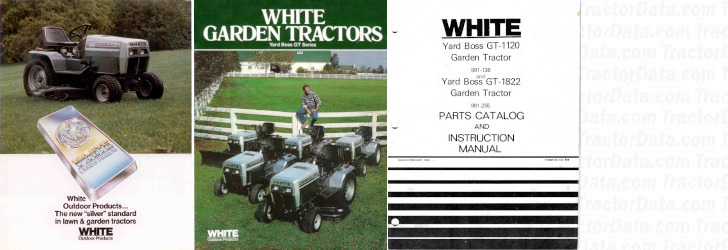

References
The new silver standard in lawn & garden tractors published in 1980, by White
Garden Tractors - Yard Boss GT Series published in 1980, by White*
GT 1120 Yard Boss Facts and Features Guide (432 819) published in 1980
*Publication contains known errors.

Engine

	1980 Garden tractorMTD built
1980
Garden tractor
MTD built

1980
Garden tractor
MTD built

Engine Detail — 693 cc / 42.3 ci Gasoline

Manufacturer	Briggs & Stratton 421417
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft opposed-twin
Displacement	693 cc 42.3 ci
Bore/Stroke	3.44x2.28 inches 87 x 58 mm
Power (gross)	18 hp 13.4 kW
Rated RPM	3500
Torque	28.5 lb-ft 38.6 Nm
Torque RPM	2700
Starter	electric
Starter volts	12
Sparkplug	Champion J-8
Sparkplug gap	0.030 inches 0.762 mm
Point gap	0.020 inches 0.508 mm
Oil capacity	1.5 qts 1.4 L
Oil change	25 h

Transmission

	1980 Garden tractorMTD built
1980
Garden tractor
MTD built

1980
Garden tractor
MTD built

Transmission — Peerless 2337

Transmission	Peerless 2337
Type	belt-driven gear
Gears	16 forward and 4 reverse
Oil capacity	2 qts 1.9 L
Oil type	SAE EP 90
Oil change	every two years
Four-speed gear transmission with four-position variator.

Dimensions

	1980 Garden tractorMTD built
1980
Garden tractor
MTD built

1980
Garden tractor
MTD built

White GT-1822 Tires
Lawn/turf front	16x6.50
Lawn/turf rear	23x8.50

Dimensions
Wheelbase	48.5 inches 123 cm
Height	42 inches 106 cm
Shipping weight	850 lbs 385 kg
Front axle	Steel

Attachments

	1980 Garden tractorMTD built
1980
Garden tractor
MTD built

1980
Garden tractor
MTD built

Attachment overview
42" mid-mount mower deck
50" mid-mount mower deck
Snowblower
Blade
A 40-inch three-point hitch mount tiller was available, model 991-124. The tiller and snowblower required the front/rear PTO shaft kit, 991-219.

Photos

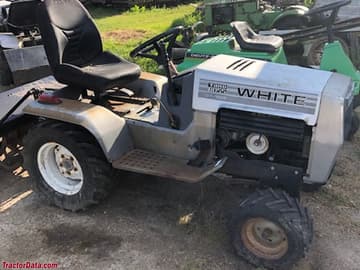

White GT-1822

White GT-1822
