White LGT-1610
The White LGT-1610 is a tractor produced by White Lawn Tractors. It is equipped with a 655 cc 40 ci engine. The rated power output is 16 hp 11.9 kW. Transmission: 4 forward and 1 reverse. Operating weight: 625 lbs 283 kg.
Engine Power
16 hp
11.9 kW
Fuel & Capacities
2 gal
7.6 L
Transmission
4 forward and 1 reverse
Operating Weight
625 lbs
283 kg
White Lawn Tractors White LGT-1610 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1979 - 1981
Lawn tractorMTD built |
|---|---|
1979 - 1981 | |
Lawn tractor | |
MTD built | |
1979 - 1981 | |
|---|---|
Lawn tractor | |
MTD built |
Production | |
|---|---|
Distributor | White |
Manufacturer | MTD |
Lawn tractor | |
White LGT-1610 Engine | |
|---|---|
16HP Briggs & Stratton 655cc 2-cyl gasoline | |
Fuel tank | 2 gal
7.6 L |
Engine details ...  | |
White LGT-1610 Transmission | |
|---|---|
4-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Tractor hitch | |
|---|---|
Type | sleeve hitch OptOptional |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | mechanical idler pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 46 inches
116 cm |
Weight | 625 lbs
283 kg |
Front tire | 15x6.00 |
Rear tire | 22x7.5 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
The new silver standard in lawn & garden tractors published in 1980, by White | |
White Lawn and Garden Tractors published in 1980 | |
1979 Farm Equipment Line published by White |
Engine
| 1979 - 1981
Lawn tractorMTD built |
|---|---|
1979 - 1981 | |
Lawn tractor | |
MTD built | |
1979 - 1981 | |
|---|---|
Lawn tractor | |
MTD built |

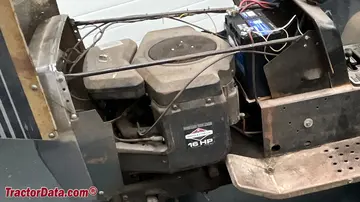

Engine Detail — 655 cc / 40 ci Gasoline
Manufacturer | Briggs & Stratton 402707 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft |
Displacement | 655 cc
40 ci |
Bore/Stroke | 3.44x2.16 inches
87 x 55 mm |
Power | 16 hp
11.9 kW |
Starter | electric |
Starter volts | 12 |
White LGT-1610 Engine | |
|---|---|
 |
Transmission
| 1979 - 1981
Lawn tractorMTD built |
|---|---|
1979 - 1981 | |
Lawn tractor | |
MTD built | |
1979 - 1981 | |
|---|---|
Lawn tractor | |
MTD built |
Transmission — 4 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 4 forward and 1 reverse |
Dimensions
| 1979 - 1981
Lawn tractorMTD built |
|---|---|
1979 - 1981 | |
Lawn tractor | |
MTD built | |
1979 - 1981 | |
|---|---|
Lawn tractor | |
MTD built |
White LGT-1610 Tires | |
|---|---|
Lawn/turf front | 15x6.00 |
Lawn/turf rear | 22x7.5 |
Dimensions | |
|---|---|
Wheelbase | 46 inches
116 cm |
Height (steering wheel) | 39 inches
99 cm |
Shipping weight | 625 lbs
283 kg |
Attachments
| 1979 - 1981
Lawn tractorMTD built |
|---|---|
1979 - 1981 | |
Lawn tractor | |
MTD built | |
1979 - 1981 | |
|---|---|
Lawn tractor | |
MTD built |
Attachment overview | |
|---|---|
44" mid-mount mower deck | |
Snowblower | |
Blade |
44" Mower deck | |
|---|---|
Type | mid-mount White |
2-blade with manual lift | |
Cutting width | 44 inches
111 cm |
Photos
White LGT-1610 lawn tractor.
