Wingin 554

The Wingin 554 is a tractor produced by Wingin. It is equipped with a 210.9 ci 3.5 L engine. The listed engine power is Diesel (listed): 55 hp / 41.0 kW. Transmission: 8 forward and 2 reverse. Operating weight: 4,770 lbs 2163 kg.

Engine Power
Diesel (listed): 55 hp / 41.0 kW
Fuel & Capacities
Diesel
Transmission
8 forward and 2 reverse
Operating Weight
4,770 lbs 2163 kg

Overview

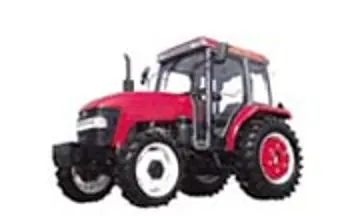

Wingin 554 tractor photo
Jinma built
Jinma built
Jinma built
Production
Distributor
Wingin
Manufacturer
Jinma
Built in China
Wingin 554 Engine
3.5L 4-cyl diesel
Engine details ...
Wingin 554 Power
Engine
55 hp 41.0 kW
Mechanical
Four-wheel drive
Power Take-off (PTO)
Rear PTO Type
540/720/1000
Dimensions & Tires
Wheelbase
81.6 inches 207 cm
Weight
4,770 lbs 2163 kg
Front tire
8.3-20
Rear tire
12.4-28
Full dimensions and tires ...

Engine

Wingin 554 tractor photo
Jinma built
Jinma built
Jinma built

Engine Detail — 210.9 ci / 3.5 L Diesel

Manufacturer
SL4105BT
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
210.9 ci 3.5 L
Bore/Stroke
3.937x4.331 inches 100 x 110 mm
Power
55 hp 41.0 kW
Rated RPM
2300

Transmission

Wingin 554 tractor photo
Jinma built
Jinma built
Jinma built
Transmission options
6-speed
8-speed

Transmission — 6 forward and 2 reverse

Gears
6 forward and 2 reverse

Transmission — 8 forward and 2 reverse

Gears
8 forward and 2 reverse

Dimensions

Wingin 554 tractor photo
Jinma built
Jinma built
Jinma built
Wingin 554 Tires
Ag front
8.3-20
Ag rear
12.4-28
Dimensions
Wheelbase
81.6 inches 207 cm
Length
155.7 inches 395 cm
Width
64 inches 162 cm
Height
97.8 inches 248 cm
Weight
4,770 lbs 2163 kg
Ground clearance
12.8 inches 32 cm

Photos

Wingin 554 tractor photo

Wingin 554 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Wingin 554 based on its 55 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
3 to 4 Bottom (16")3 - 4 铧 (40 cm)Heavy DutySuitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing
6 ft (72 in)1.8 mMedium DutyMedium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep
66 to 72 in165 - 180 cmMedium DutyStandard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage
7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙Medium DutyField leveling and clod breaking behind plows.
Hay BalerHay & Forage
Small Square Baler (14x18")小方捆打捆机 (36x46 cm)Medium DutyClassic 2-string baler for horse and small livestock hay.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Wingin 554.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Wingin 554 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Wingin 554.

Converted Equivalents:

Horsepower (HP)55 hp
Kilowatts (kW)41 kW
Metric Horsepower (PS / CV)55.8 PS

Direct Competitor Comparison

Compare Wingin 554 against same-era industry alternatives in the same horsepower class.

Current Model
Wingin

Wingin 554

Engine Power:Diesel (listed): 55 hp / 41.0 kW
★ Baseline Reference
KubotaMarket Competitor

Kubota M4970

Engine Power:49.5
Production Years:1986 - 1988
Deutz-FahrMarket Competitor

Deutz-Fahr Agrokid 230

Engine Power:49.6
Production Years:2007 - 2017
FendtMarket Competitor

Fendt Farmer 250V

Engine Power:49.6
Production Years:1987 - 2002
Massey FergusonMarket Competitor

Massey Ferguson 147

Engine Power:50
Production Years:1975 - 1985
