Woods 5215
The Woods 5215 is a tractor produced by Woods Lawn Tractors. It is equipped with a 719 cc 43.9 ci engine. The rated power output is 21 hp 15.7 kW. Transmission: infinite forward and reverse. Operating weight: 792 lbs 359 kg.
Engine Power
21 hp
15.7 kW
Fuel & Capacities
4.3 gal
16.3 L
Transmission
infinite forward and reverse
Operating Weight
792 lbs
359 kg
Woods Lawn Tractors Woods 5215 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1993 - 1994
5000 SeriesFront-mount mowerGrasshopper built |
|---|---|
1993 - 1994 | |
5000 Series | |
Front-mount mower | |
Grasshopper built | |
1993 - 1994 | |
|---|---|
5000 Series | |
Front-mount mower | |
Grasshopper built |
Production | |
|---|---|
Distributor | Woods |
Manufacturer | Grasshopper |
Front-mount mower | |
Woods 5215 Engine | |
|---|---|
21HP Kubota 719cc 3-cyl diesel | |
Fuel tank | 4.3 gal
16.3 L |
8 galOptOptional
30.3 L | |
Engine details ...  | |
Woods 5215 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Weight | 792 lbs
359 kg |
Front tire | 20x10.00-8 |
Rear tire | 13x5.00-6 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 12.5 |
Battery CCA | 450 |
Battery volts | 12 |
References | |
|---|---|
 | |
Mow'n Machines and Accessories published in 1994, by Woods |
Engine
| 1993 - 1994
5000 SeriesFront-mount mowerGrasshopper built |
|---|---|
1993 - 1994 | |
5000 Series | |
Front-mount mower | |
Grasshopper built | |
1993 - 1994 | |
|---|---|
5000 Series | |
Front-mount mower | |
Grasshopper built |
Engine Detail — 719 cc / 43.9 ci Diesel
Manufacturer | Kubota D722 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled horizontal-shaft inline |
Displacement | 719 cc
43.9 ci |
Bore/Stroke | 2.64x2.68 inches
67 x 68 mm |
Power (gross) | 21 hp
15.7 kW |
Compression | 23:1 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 3.1 qts
2.9 L |
Transmission
| 1993 - 1994
5000 SeriesFront-mount mowerGrasshopper built |
|---|---|
1993 - 1994 | |
5000 Series | |
Front-mount mower | |
Grasshopper built | |
1993 - 1994 | |
|---|---|
5000 Series | |
Front-mount mower | |
Grasshopper built |
Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
| 1993 - 1994
5000 SeriesFront-mount mowerGrasshopper built |
|---|---|
1993 - 1994 | |
5000 Series | |
Front-mount mower | |
Grasshopper built | |
1993 - 1994 | |
|---|---|
5000 Series | |
Front-mount mower | |
Grasshopper built |
Woods 5215 Tires | |
|---|---|
Lawn/turf front | 20x10.00-8 |
Lawn/turf rear | 13x5.00-6 |
Dimensions | |
|---|---|
Weight | 792 lbs
359 kg |
Attachments
| 1993 - 1994
5000 SeriesFront-mount mowerGrasshopper built |
|---|---|
1993 - 1994 | |
5000 Series | |
Front-mount mower | |
Grasshopper built | |
1993 - 1994 | |
|---|---|
5000 Series | |
Front-mount mower | |
Grasshopper built |
Attachment overview | |
|---|---|
48" front-mount mower deck | |
52" front-mount mower deck | |
61" front-mount mower deck | |
72" front-mount mower deck | |
Snowblower | |
Blade |
Photos

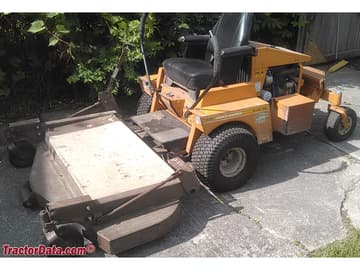

Woods 5215 with front mower.
Woods 5215 with snow blower.
Woods 5215 with snow blower.
