Yanmar 424
The Yanmar 424 is a tractor produced by Yanmar. It is equipped with a 77.2 ci 1.3 L engine. The rated power output is 21.7 hp 16.2 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 1830 lbs 830 kg.
Engine Power
21.7 hp
16.2 kW
Fuel & Capacities
6 gal
22.7 L
Transmission
infinite forward and reverse (2-range)
Operating Weight
1830 lbs
830 kg
Yanmar 424 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2014 - 2022
SA SeriesSub-Compact Utility tractor |
|---|---|
2014 - 2022 | |
SA Series | |
Sub-Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Yanmar |
Sub-Compact Utility tractor | |
Yanmar 424 Engine | |
|---|---|
Yanmar 1.3L 3-cyl diesel | |
Engine details ...  |
Yanmar 424 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Yanmar 424 Power | |
|---|---|
Engine (gross) | 23.9 hp
17.8 kW |
Engine (net) | 21.7 hp
16.2 kW |
PTO (claimed) | 18.1 hp
13.5 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Two-post foldable ROPS. | |
Capacity | |
|---|---|
Fuel | 6 gal
22.7 L |
Front axle | 3.2 qts
3.0 L |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2429 psi
167.5 bar |
Pump flow | 4.3 gpm
16.3 lpm |
Steering flow | 3.7 gpm
14.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | 1 (limited) |
Control | position control |
Rear lift (at 24"/610mm) | 1209 lbs
548 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | hydraulic |
Rear PTO Type | 540 (1.375) |
Engine RPM | 554@3200 |
Mid PTO | independent |
Clutch | 2057:3200 |
Mid PTO Type | 2000 (1.0) |
Dimensions & Tires | |
|---|---|
Wheelbase | 63 inches
160 cm |
Weight | 1830 lbs
830 kg |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery CCA | 540 |
Battery volts | 12 |
References | |
|---|---|
 | |
SA221/324/424 published in 2019, by Yanmar | |
424 Multi-purpose Compact Tractor published in 2019, by Yanmar |
Engine
Engine Detail — 77.2 ci / 1.3 L Diesel
Manufacturer | Yanmar 3TNV80F |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled inline |
Displacement | 77.2 ci
1.3 L |
Bore/Stroke | 3.15x3.30 inches
80 x 84 mm |
Emissions | Tier 4 |
Power (net) | 21.7 hp
16.2 kW |
Power (gross) | 23.9 hp
17.8 kW |
Rated RPM | 3200 |
Torque | 45.7 lb-ft
62.0 Nm |
Starter | electric |
Starter volts | 12 |
Oil capacity | 3.6 qts
3.4 L |
Coolant capacity | 3 qts
2.8 L |
Transmission
Transmission — infinite forward and reverse (2-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (2-range) |
Oil capacity | 16.4 qts
15.5 L |
 | |
Dimensions
Yanmar 424 Tires | |
|---|---|
Lawn/turf front | 24x8.50-14 |
Lawn/turf rear | 36x14.00-15 |
Industrial front | 23x8.50-12 |
Industrial rear | 14-17.5 |
Dimensions | |
|---|---|
Wheelbase | 63 inches
160 cm |
Length | 105.8 inches
268 cm |
Width | 54.6 inches
138 cm |
Weight | 1830 lbs
830 kg |
Ground clearance | 8.5 inches
21 cm |
Front tread | 37.8 inches
96 cm |
Rear tread | 40.5 inches
102 cm |
Yanmar 424 Height | |
|---|---|
Steering wheel | 55.3 inches
140 cm |
ROPS | 85.9 inches
218 cm |
70.4 inches (folded)
178 cm | |
Attachments
Attachment overview | |
|---|---|
60" mid-mount mower deck | |
Front-end loader |
60" Mower deck | |
|---|---|
Type | mid-mount Yanmar |
Cutting width | 60 inches
152 cm |
Photos

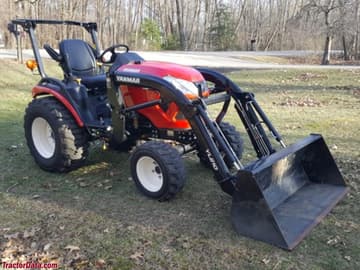

Yanmar 424
