Yanmar AF-18

The Yanmar AF-18 is a tractor produced by Yanmar. It is equipped with a 61.4 ci 1.0 L engine. The listed engine power is Diesel (listed): 17.8 hp / 13.3 kW. Transmission: 12 forward and reverse. Operating weight: 1653 lbs 749 kg.

Overview

	1992 AF SeriesCompact Utility tractor
1992
AF Series
Compact Utility tractor

Production
Manufacturer	Yanmar
Compact Utility tractor

Yanmar AF-18 Engine
Yanmar 1.0L 3-cyl diesel
Fuel tank	5.3 gal 20.1 L
Engine details ...

Yanmar AF-18 Power
Engine	17.8 hp 13.3 kW

Mechanical
Four-wheel drive
Two-post ROPS.

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	558@2500
	805@2500
	1228@2500
	-745@2500

Dimensions & Tires
Wheelbase	53.2 inches 135 cm
Weight	1653 lbs 749 kg
Front tire	6.00-12
Rear tire	8.3-22
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	45

Engine

Engine Detail — 61.4 ci / 1.0 L Diesel

Manufacturer	Yanmar 3TNE74
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	61.4 ci 1.0 L
Bore/Stroke	2.91x3.07 inches 74 x 78 mm
Power	17.8 hp 13.3 kW
Rated RPM	2500
Starter	electric
Starter volts	12

Transmission

Transmission options
8-speed
12-speed creeper

Transmission — 8 forward and reverse

Gears	8 forward and reverse
Transmission
Type	creeper
Gears	12 forward and reverse

Dimensions

Yanmar AF-18 Tires
Standard tires (ag)	Front: 6.00-12. Rear: 8.3-22

Dimensions
Wheelbase	53.2 inches 135 cm
Length	103.2 inches 262 cm
Width	43.3 inches 109 cm
Height	74.2 inches 188 cm
Weight	1653 lbs 749 kg
Ground clearance	13 inches 33 cm
Front tread	33.5 inches 85 cm
Rear tread	33.9 inches 86 cm

Photos

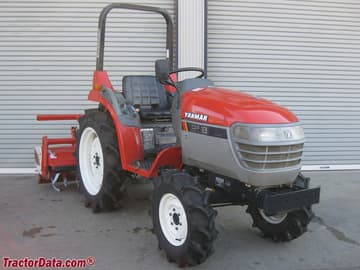

Yanmar AF-18 compact utility tractor.
