yanmar af 24
 | 1992 - 1997
AF SeriesCompact Utility tractor | 1992 - 1997 | AF Series | Compact Utility tractor |
|---|---|---|---|---|
1992 - 1997 | ||||
AF Series | ||||
Compact Utility tractor | ||||
1992 - 1997 | |
|---|---|
AF Series | |
Compact Utility tractor |

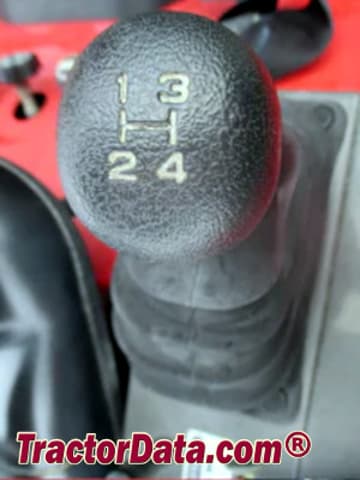

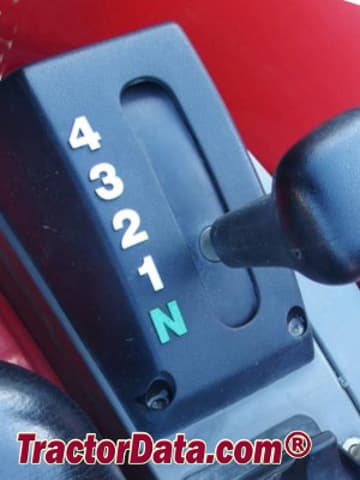

Transmission options | |
|---|---|
16-speed shuttle | |
16-speed four-speed power shift |
Transmission | |
|---|---|
Type | shuttle |
Gears | 16 forward and reverse |
Four gears in three ranges, plus creeper range with mechincal shuttle. | |

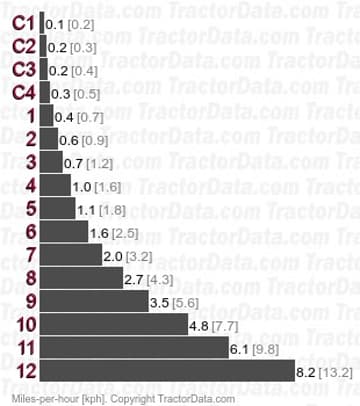

Speeds | |
|---|---|
 |
Shift Pattern | |
|---|---|
 |
Transmission | |
|---|---|
Type | four-speed power shift |
Gears | 16 forward and reverse |
Four power shift gears in three ranges, plus creeper range with power shuttle | |
Shift Pattern | |
|---|---|
 |
