Yanmar EF338V
The Yanmar EF338V is a tractor produced by Yanmar. It is equipped with a 133.6 ci 2.2 L engine. The rated power output is 37.4 hp 27.9 kW. Transmission: 16 forward and reverse. Operating weight: 3395 to 3726 pounds.
Engine Power
37.4 hp
27.9 kW
Fuel & Capacities
9.5 gal
36.0 L
Transmission
16 forward and reverse
Operating Weight
3395 to 3726 pounds
Yanmar EF338V Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2005 - 2009
EF300V SeriesCompact Utility tractor |
|---|---|
2005 - 2009 | |
EF300V Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Yanmar |
Compact Utility tractor | |
Variants | |
|---|---|
EF338V | ROPS |
EF338VQ | Cab |
EF338VJ | ROPS high-speed |
EF338VJQ | Cab high-speed |
Yanmar EF338V Engine | |
|---|---|
Yanmar 2.2L 4-cyl diesel | |
Fuel tank | 9.5 gal
36.0 L |
Engine details ...  | |
Yanmar EF338V Transmission | |
|---|---|
16-speed four-speed power shift | |
Transmission details ...  |
Yanmar EF338V Power | |
|---|---|
Engine | 37.4 hp
27.9 kW |
Mechanical | |
|---|---|
Four-wheel drive |
Tractor hitch | |
|---|---|
Rear Type | JIS1 |
Rear lift | 3307 lbs
1500 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | 540 (1.375) |
Engine RPM | 555@2700 |
784@2700 | |
991@2700 | |
1296@2700 | |
-622@27000 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 72.8 inches
184 cm |
Weight | 3395 to 3726 pounds |
Front tire | 8-16 |
Rear tire | 13.6-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
EF300V Series published in 2005, by Yanmar | |
EF300V Series (0A041-J00501) published in 2009 |
Engine
Engine Detail — 133.6 ci / 2.2 L Diesel
Manufacturer | Yanmar 4TNV88 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 133.6 ci
2.2 L |
Bore/Stroke | 3.46x3.54 inches
88 x 90 mm |
Power | 37.4 hp
27.9 kW |
Rated RPM | 2700 |
Starter | electric |
Starter volts | 12 |
Transmission

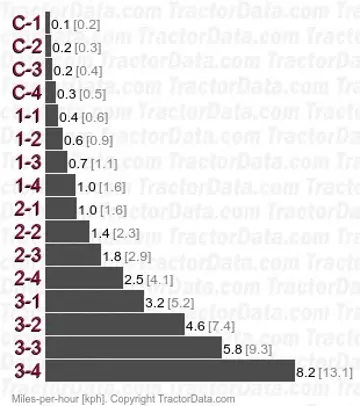

Transmission — 16 forward and reverse four-speed power shift
Type | four-speed power shift |
Gears | 16 forward and reverse |
Four power shift gears in four ranges, with shuttle. | |
 | |
Dimensions
Yanmar EF338V Tires | |
|---|---|
Standard tires (ag) | Front: 8-16. Rear: 13.6-24 |
Dimensions | |
|---|---|
Wheelbase | 72.8 inches
184 cm |
Length | 128.7 inches
326 cm |
Width | 58.3 inches
148 cm |
Height (ROPS) | 76.2 inches
193 cm |
Height (cab) | 77.6 inches
197 cm |
ROPS Weight | 3395 lbs
1539 kg |
Cab Weight | 3726 lbs
1690 kg |
Ground clearance | 13.4 inches
34 cm |
Front tread | 48.4 inches
122 cm |
Rear tread | 45.3 to 56.9 inches
115 to 144 cm |
