Yanmar YM1601
The Yanmar YM1601 is a tractor produced by Yanmar. It is equipped with a 60.7 ci 1.0 L engine. The listed engine power is Diesel (listed): 16 hp / 11.9 kW. Transmission: 12 forward and 4 reverse. Operating weight: 1477 to 1565 pounds.
Overview
 | 1979 - 1981
Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Yanmar |
Compact Utility tractor | |
Variants | |
|---|---|
YM1601 | 2WD gear |
YM1601D | 4WD gear |
YM1610 | 2WD power shift |
YM1610D | 4WD power shift |
Yanmar YM1601 Engine | |
|---|---|
Yanmar 1.0L 3-cyl diesel | |
Fuel tank | 5.4 gal
20.4 L |
Engine details ...  | |
Yanmar YM1601 Transmission | |
|---|---|
12-speed gear | |
Transmission details ...  |
Yanmar YM1601 Power | |
|---|---|
Engine | 16 hp
11.9 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 588@2500 |
769@2500 | |
1111@2500 | |
Dimensions & Tires | |
|---|---|
Weight | 1477 to 1565 pounds |
Front tire | 4.00-12 |
2WD Rear tire | 8.3-22 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 60.7 ci / 1.0 L Diesel
Manufacturer | Yanmar 3T75U |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 60.7 ci
1.0 L |
Bore/Stroke | 2.95x2.83 inches
75 x 72 mm |
Power | 16 hp
11.9 kW |
Rated RPM | 2500 |
Starter volts | 12 |
Transmission

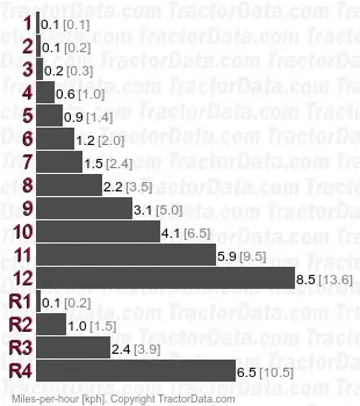

Transmission — 12 forward and 4 reverse gear
Type | gear |
Gears | 12 forward and 4 reverse |
 | |
Dimensions
Yanmar YM1601 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 4.00-12. Rear: 8.3-22 |
4WD Standard tires (ag) | Front: 5-14. Rear: 8.3-22 |
Dimensions | |
|---|---|
Length | 103 inches
261 cm |
Width | 44 inches
111 cm |
Height | 69 inches
175 cm |
2WD Weight | 1477 lbs
669 kg |
4WD Weight | 1565 lbs
709 kg |
Photos
Yanmar YM1601.
Yanmar YM1601D.
Yanmar YM1601D with front-end loader.
Yanmar YM1601D with front-end loader.
Yanmar YM1601D with front-end loader.
Recommended Implements & Sizing Guide
Engineering recommendations for Yanmar YM1601 based on its 16 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Yanmar YM1601.
Estimated Continuous Field Runtime: 6.5 hrs
Approximately 6.5 hours of continuous field operation at ~75% rated power on a full tank (5.4 gal / 20.4 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Yanmar YM1601 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Yanmar YM1601.
Converted Equivalents:
Direct Competitor Comparison
Compare Yanmar YM1601 against same-era industry alternatives in the same horsepower class.
Yanmar YM1601
