Yanmar YM165

The Yanmar YM165 is a tractor produced by Yanmar. It is equipped with a 40.4 ci 0.7 L engine. The rated power output is 16 hp 11.9 kW. Transmission: 6 forward and 2 reverse. Operating weight: 1109 to 1230 pounds.

Overview

	1980 - 1986 Compact Utility tractor
1980 - 1986
Compact Utility tractor

Production
Manufacturer	Yanmar
Compact Utility tractor
Original price was $6,500 in 1986

Variants
YM165	2WD
YM165D	4WD

Yanmar YM165 Engine
Yanmar 0.7L 2-cyl diesel
Engine details ...

Yanmar YM165 Transmission
6-speed gear
Transmission details ...

Yanmar YM165 Power
Engine	16 hp 11.9 kW

Mechanical
Two- or four-wheel drive
Final drives	bull gear
Differential lock	mechanical rear
Manual steering
Mechanical drum brakes
Open operator station. Two-post ROPS available (RB169)

Capacity
Fuel	4 gal 15.1 L
Hydraulic system	2.5 gal 9.5 L

Hydraulics
Type	open center
Capacity	2.5 gal 9.5 L
Pressure	1138 psi 78.5 bar
Valves	1
Pump flow	3.8 gpm 14.4 lpm

Tractor hitch
Rear Type	I
Rear lift (at ends)	772 lbs 350 kg
Front Hitch	530

Power Take-off (PTO)
Rear PTO	transmission
Clutch	overrunning mechanical dry disc
Rear PTO Type	540 (1.375)
Engine RPM	540@2540
	770@2540
Front PTO	independent OptOptional
Clutch	electro-magnetic
Front PTO Type	pulley

Dimensions & Tires
Wheelbase	48.8 inches 123 cm
Weight	1109 to 1230 pounds
Front tire	4.50-10
2WD Rear tire	8/8-16
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	7
Battery volts	12
Battery AH	35

References
16HP Diesel Tractor published in 1980, by Yanmar
Operation Manual YM165/YM165D (OME1650(1)-8801) published in 1980

Engine

Engine Detail — 40.4 ci / 0.7 L Diesel

Manufacturer	Yanmar 2TR13A
Fuel Type	Diesel
Configuration	2-cylinder, liquid-cooled inline
Displacement	40.4 ci 0.7 L
Bore/Stroke	2.95x2.95 inches 75 x 75 mm
Power	16 hp 11.9 kW
Air cleaner	dry
Pre-heating	coolant heater OptOptional
Compression	23:1
Rated RPM	2700
Operating RPM	2200-2700
Firing order	1-2
Starter volts	12
Coolant capacity	3.4 qts 3.2 L
Intake valve clearance	0.008 inches 0.203 mm
Exhaust valve clearance	0.008 inches 0.203 mm
Oil capacity	2.3 qts 2.2 L
Oil change	100 h

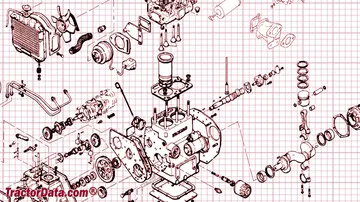

Yanmar YM165 Engine

Transmission

Transmission — 6 forward and 2 reverse gear

Type	gear
Gears	6 forward and 2 reverse
Clutch	dry disc
Oil capacity	10 qts 9.5 L
Three gears, plus reverse, in two ranges.

Dimensions

Yanmar YM165 Tires
2WD Standard tires (ag)	Front: 4.50-10. Rear: 8/8-16
4WD Standard tires (ag)	Front: 5-12. Rear: 8-16
Lawn/turf front	20.5x8.00-10
Lawn/turf rear	29x12.00-15
Lawn/turf front	6-12
Lawn/turf rear	8-16

Dimensions
Wheelbase	48.8 inches 123 cm
Length	95.3 inches 242 cm
Width	38.4 inches 97 cm
Height (steering wheel)	45.7 inches 116 cm
2WD Weight	1109 lbs 503 kg
4WD Weight	1230 lbs 557 kg
Clearance (rear axle)	13.4 inches 34 cm
Clearance (drawbar)	10.4 inches 26 cm
Flange rear axle
2WD Front tread	31 inches 78 cm
4WD Front tread	29.3 inches 74 cm
Rear tread	27.6/33.5 inches 70/85 cm

Photos

Yanmar YM165
