Yanmar YM2210
The Yanmar YM2210 is a tractor produced by Yanmar. It is equipped with a 69.9 ci 1.1 L engine. The listed engine power is Diesel (listed): 21.7 hp / 16.2 kW. Transmission: 15 forward and 5 reverse. Operating weight: 2094 to 2205 pounds.
Engine Power
Diesel (listed): 21.7 hp / 16.2 kW
Fuel & Capacities
6.3 gal
23.8 L
Transmission
15 forward and 5 reverse
Operating Weight
2094 to 2205 pounds
Overview
 | 1977 - 1981
YM10 SeriesCompact Utility tractor
YM10 Series
Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Yanmar |
Compact Utility tractor | |
Variants | |
|---|---|
YM2210 | 2WD power shift |
YM2210D | 4WD power shift |
Yanmar YM2210 Engine | |
|---|---|
Yanmar 1.1L 2-cyl diesel | |
Fuel tank | 6.3 gal
23.8 L |
Engine details ...  | |
Yanmar YM2210 Transmission | |
|---|---|
15-speed partial power shift | |
Transmission details ...  |
Yanmar YM2210 Power | |
|---|---|
Engine | 21.7 hp
16.2 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@2200 |
1000@2200 | |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 61 inches
154 cm |
4WD Wheelbase | 63.2 inches
160 cm |
Weight | 2094 to 2205 pounds |
Front tire | 4.00-15 |
2wD Rear tire | 9.5-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
YM2210(D) published by Yanmar |
Engine
Engine Detail — 69.9 ci / 1.1 L Diesel
Manufacturer | Yanmar 2T90 |
Fuel Type | Diesel |
Configuration | 2-cylinder, liquid-cooled |
Displacement | 69.9 ci
1.1 L |
Bore/Stroke | 3.54x3.54 inches
90 x 90 mm |
Power | 21.7 hp
16.2 kW |
Rated RPM | 2600 |
Starter volts | 12 |

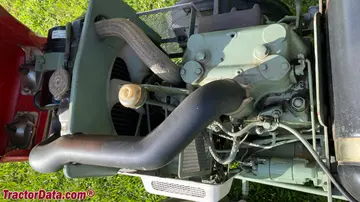

Yanmar YM2210 Engine | |
|---|---|
 | |
Image courtesy of Evan Barber |
Transmission

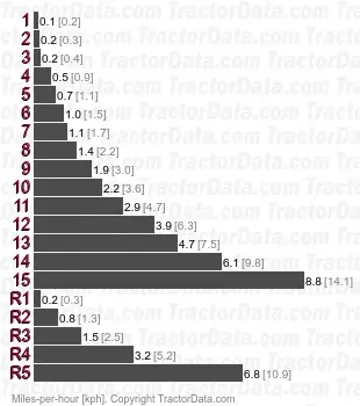

Transmission — 15 forward and 5 reverse partial power shift
Type | partial power shift |
Gears | 15 forward and 5 reverse |
Five ranges with three power shift gears (plus reverse) per range. | |
 | |
Dimensions
Yanmar YM2210 Tires | |
|---|---|
2wD Standard tires (ag) | Front: 4.00-15. Rear: 9.5-24 |
4WD Standard tires (ag) | Front: 6-14. Rear: 9.5-24 |
Dimensions | |
|---|---|
2WD Wheelbase | 61 inches
154 cm |
4WD Wheelbase | 63.2 inches
160 cm |
Length | 109.7 inches
278 cm |
Width | 45.9 inches
116 cm |
2WD Height | 72.6 inches
184 cm |
4WD Height | 72.8 inches
184 cm |
2WD Weight | 2094 lbs
949 kg |
4WD Weight | 2205 lbs
1000 kg |
2WD Ground clearance | 14.2 inches
36 cm |
4WD Ground clearance | 12.6 inches
32 cm |
2WD Front tread | 34.7 inches
88 cm |
4WD Front tread | 36.2 inches
91 cm |
Rear tread | 40.2 inches
102 cm |
Photos
Yanmar YM2210
Yanmar YM2210D.
Recommended Implements & Sizing Guide
Engineering recommendations for Yanmar YM2210 based on its 21.7 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Yanmar YM2210.
Estimated Continuous Field Runtime: 5.6 hrs
Approximately 5.6 hours of continuous field operation at ~75% rated power on a full tank (6.3 gal / 23.8 L).
Estimated 75% Load Fuel Burn~1.1 gal/hr (4.3 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Yanmar YM2210 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Yanmar YM2210.
Converted Equivalents:
Horsepower (HP)21.7 hp
Kilowatts (kW)16.2 kW
Metric Horsepower (PS / CV)22 PS
