yanmar lawn tractors ym146
 | 1983 - 1987
Garden tractor | 1983 - 1987 | Garden tractor |
|---|---|---|---|
1983 - 1987 | |||
Garden tractor | |||
1983 - 1987 | |
|---|---|
Garden tractor |
Engine Detail | |
|---|---|
Yanmar 2T75U-N | |
diesel | |
2-cylinder | |
liquid-cooled | |
Displacement | 635 cc
38.8 ci |
Bore/Stroke | 2.95x2.84 inches
75 x 72 mm |
Power | 14 hp
10.4 kW |
Air cleaner | dry |
Rated RPM | 2600 |
Idle RPM | 1300-2825 |
Starter volts | 12 |
Coolant capacity | 3.7 qts
3.5 L |

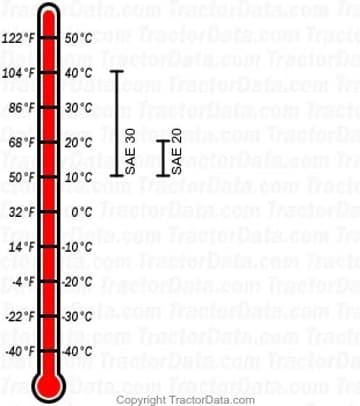

Engine Oil | |
|---|---|
 | |
Oil capacity | 2.1 qts
2.0 L |
Oil change | 100 h |
