Yard Pro GTV-16
The Yard Pro GTV-16 is a tractor produced by Yard Pro Lawn Tractors. The rated power output is 16 hp 11.9 kW. Transmission: Peerless 820-016.
Engine Power
16 hp
11.9 kW
Fuel & Capacities
3.5 gal
13.2 L
Transmission
Peerless 820-016
Yard Pro Lawn Tractors Yard Pro GTV-16 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1991 - 1992 | 1991 - 1992 |
|---|
Production | |
|---|---|
Manufacturer | Yard Pro (a part of AYP) |
Built in Orangeburg, South Carolina, USA | |
Original price was $1,899 in 1992 | |
Yard Pro GTV-16 Engine | |
|---|---|
16HP Briggs & Stratton 2-cyl gasoline | |
Fuel tank | 3.5 gal
13.2 L |
Engine details ...  | |
Yard Pro GTV-16 Transmission | |
|---|---|
6-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Rear tire | 23x9.5-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled |
Power | 16 hp
11.9 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Peerless 820-016
Transmission | Peerless 820-016 |
Type | belt-driven gear |
Gears | 6 forward and 1 reverse |
Dimensions
Yard Pro GTV-16 Tires | |
|---|---|
Lawn/turf rear | 23x9.5-12 |
Dimensions |
|---|
Attachments
44" Mower deck | |
|---|---|
Type | mid-mount Yard Pro |
3-blade | |
Cutting width | 44 inches
111 cm |
Photos

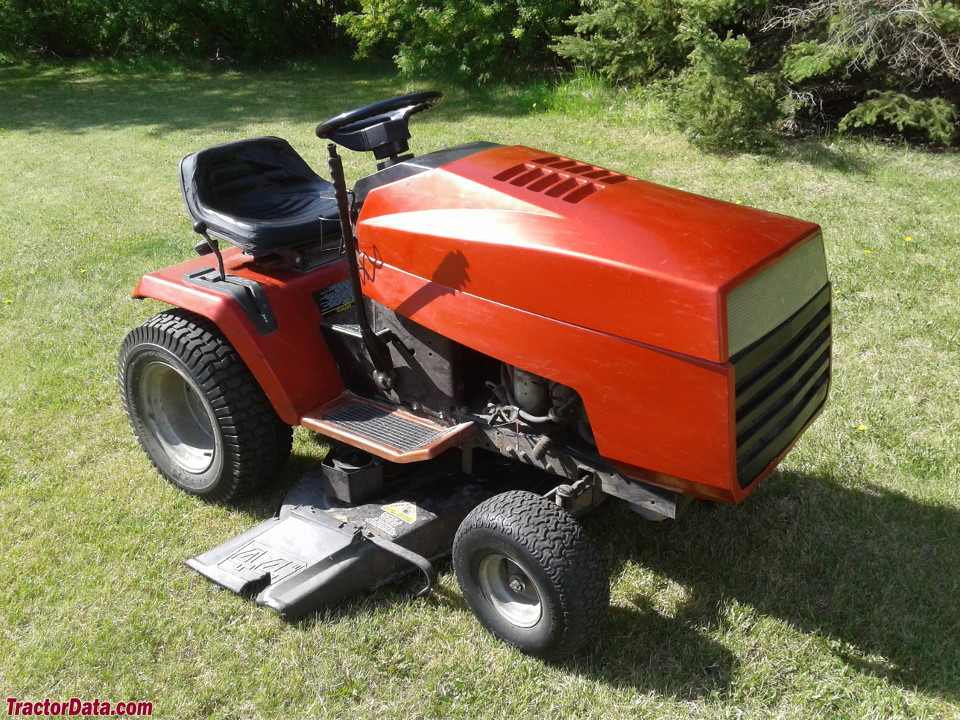

Yard Pro GTV-16

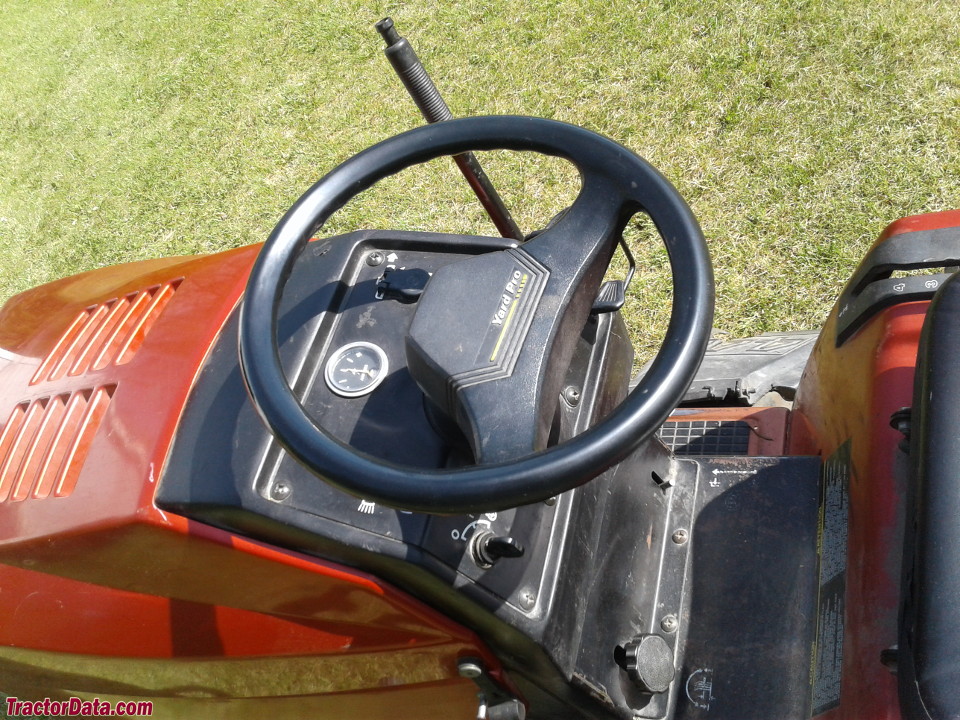

Yard Pro GTV-16 dashboard.
