Zetor 12050
The Zetor 12050 is a tractor produced by Zetor. It is equipped with a 254 ci 4.2 L engine. The rated power output is 114 hp 85.0 kW. Transmission: 24 forward and reverse. Operating weight: 9045 lbs 4102 kg.
Engine Power
114 hp
85.0 kW
Fuel & Capacities
48 gal
181.7 L
Transmission
24 forward and reverse
Operating Weight
9045 lbs
4102 kg
Zetor 12050 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2008 - 2011
Silver Series |
|---|---|
2008 - 2011 | |
Silver Series | |
Production | |
|---|---|
Manufacturer | Zetor |
Built in Brno, Czech Republic | |
Zetor 12050 Engine | |
|---|---|
Zetor 4.2L 4-cyl diesel | |
Fuel tank | 48 gal
181.7 L |
Engine details ...  | |
Zetor 12050 Transmission | |
|---|---|
24-speed three-speed power shift | |
Transmission details ...  |
Zetor 12050 Power | |
|---|---|
Engine (gross) | 120 hp
89.5 kW |
Engine (net) | 114 hp
85.0 kW |
PTO (claimed) | 104 hp
77.6 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | mechanical rear |
limited-slip front | |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with air-condtioning. | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2900 psi
200.0 bar |
Valves | 3 |
SCV flow | 14 gpm
53.0 lpm |
Total flow | 20 gpm
75.7 lpm |
Steering flow | 6 gpm
22.7 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Control | position and draft control |
Rear lift (at ends) | 7600 lbs
3447 kg |
9150 lbsOptOptional
4150 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic wet disc |
Rear PTO Type | 540/1000 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 96 inches
243 cm |
Weight | 9045 lbs
4102 kg |
Front tire | 13.6R24 |
Rear tire | 18.4R34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 95 |
Charging volts | 12 |
Battery CCA | 950 |
Battery volts | 12 |
Engine
Engine Detail — 254 ci / 4.2 L Diesel
Manufacturer | Zetor |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 254 ci
4.2 L |
Bore/Stroke | 4.13x4.72 inches
105 x 120 mm |
Power (net) | 114 hp
85.0 kW |
Power (gross) | 120 hp
89.5 kW |
Rated RPM | 2200 |
Starter | electric |
Starter volts | 12 |
Transmission

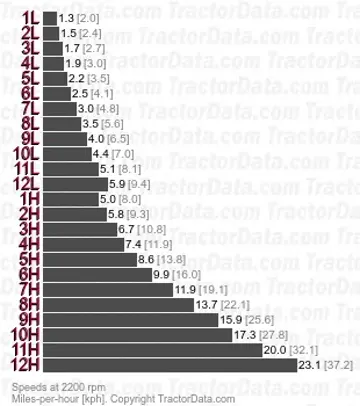

Transmission — 24 forward and reverse three-speed power shift
Type | three-speed power shift |
Gears | 24 forward and reverse |
Clutch | wet disc |
Synchronized transmission with three-speed push-button power shift and power shuttle. Electric declutch button. | |
With 18.4R34 rear tires. Reverse speeds are 6% faster than forward. | |
 | |
Dimensions
Zetor 12050 Tires | |
|---|---|
Standard tires (ag) | Front: 13.6R24. Rear: 18.4R34 |
Dimensions | |
|---|---|
Wheelbase | 96 inches
243 cm |
Length | 157 inches
398 cm |
Width | 78 inches*Minimum width
198 cm |
Height (cab) | 106 inches
269 cm |
Weight | 9045 lbs
4102 kg |
Ground clearance | 18 inches
45 cm |
Front tread | 59 to 77 inches
149 to 195 cm |
Rear tread | 59 to 71 inches
149 to 180 cm |
Attachments
Attachment overview | |
|---|---|
Zetor 120K loader | |
Zetor 120SLi loader |
