Zetor 15

The Zetor 15 is a tractor produced by Zetor. It is equipped with a 96.6 ci 1.6 L engine. The listed engine power is Diesel (listed): 15 hp / 11.2 kW. Transmission: 5 forward and 1 reverse. Operating weight: 3086 lbs 1399 kg.

Overview

	1947 - 1949

Production
Manufacturer	Zetor
Built in Brno, Czechoslovakia
Total built	2,215

Zetor 15 Engine
Zetor 1.6L 1-cyl diesel
Engine details ...

Zetor 15 Transmission
5-speed gear
Transmission details ...

Zetor 15 Power
Engine	15 hp 11.2 kW

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Rear PTO	live
Rear PTO Type	540

Dimensions & Tires
Wheelbase	61.4 inches 155 cm
Weight	3086 lbs 1399 kg
Front tire	5.50-16
Rear tire	9-24
Full dimensions and tires ...

Engine

Engine Detail — 96.6 ci / 1.6 L Diesel

Manufacturer	Zetor
Fuel Type	Diesel
Configuration	1-cylinder, liquid-cooled
Displacement	96.6 ci 1.6 L
Bore/Stroke	4.724x5.512 inches 120 x 140 mm
Power	15 hp 11.2 kW
Rated RPM	1500
Starter volts	6

Transmission

Transmission — 5 forward and 1 reverse gear

Type	gear
Gears	5 forward and 1 reverse
Clutch	dry disc

Dimensions

Zetor 15 Tires
Ag front	5.50-16
Ag rear	9-24

Dimensions
Wheelbase	61.4 inches 155 cm
Length	106.3 inches 270 cm
Width	59.7 inches 151 cm
Height (steering wheel)	61 inches 154 cm
Weight	3086 lbs 1399 kg
Front tread	50 to 56.3 inches 127 to 143 cm
Rear tread	50 to 56.3 inches 127 to 143 cm

Photos

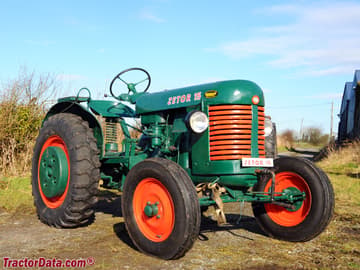

Zetor model 15 tractor.
