Zetor 2011

The Zetor 2011 is a tractor produced by Zetor. It is equipped with a 95.16 ci 1.6 L engine. The listed engine power is Diesel (listed): 25 hp / 18.6 kW. Transmission: 10 forward and 2 reverse. Operating weight: 2866 lbs 1300 kg.

Overview

	1963 - 1967

Production
Manufacturer	Zetor
Built in Brno, Czechoslovakia

Zetor 2011 Engine
Zetor 1.6L 2-cyl diesel
Fuel tank	10.6 gal 40.1 L
Engine details ...

Zetor 2011 Transmission
10-speed gear
Transmission details ...

Zetor 2011 Power
Engine	25 hp 18.6 kW

Mechanical
Two-wheel drive
Open operator station.

Hydraulics
Valves	1
Pump flow	5.3 gpm 20.1 lpm

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540

Dimensions & Tires
Wheelbase	68.1=7 inches 172 cm
Weight	2866 lbs 1300 kg
Front tire	5.50-16
Rear tire	10-28
Full dimensions and tires ...

Engine

Engine Detail — 95.16 ci / 1.6 L Diesel

Manufacturer	Zetor
Fuel Type	Diesel
Configuration	2-cylinder, liquid-cooled
Displacement	95.16 ci 1.6 L
Bore/Stroke	3.74x4.33 inches 95 x 110 mm
Power	25 hp 18.6 kW
Compression	17:1
Rated RPM	2000
Firing order	1-2
Starter volts	12
Oil capacity	6.3 qts 6.0 L
Coolant capacity	7.9 qts 7.5 L

Transmission

Transmission — 10 forward and 2 reverse gear

Type	gear
Gears	10 forward and 2 reverse
Clutch	dry disc
Five gears, plus reverse, in two ranges.
With 10-24 rear tires.

Dimensions

Zetor 2011 Tires
Ag front	5.50-16
Ag rear	10-28

Dimensions
Wheelbase	68.1=7 inches 172 cm
Length	117.3 inches 297 cm
Width	63.8 inches 162 cm
Height (steering wheel)	57.3 inches 145 cm
Weight	2866 lbs 1300 kg
Ballasted weight	4145 lbs 1880 kg
Front tread	50.2/62/67.9 inches 127/157/172 cm
Rear tread	50.2 to 70.9 inches 127 to 180 cm

Photos

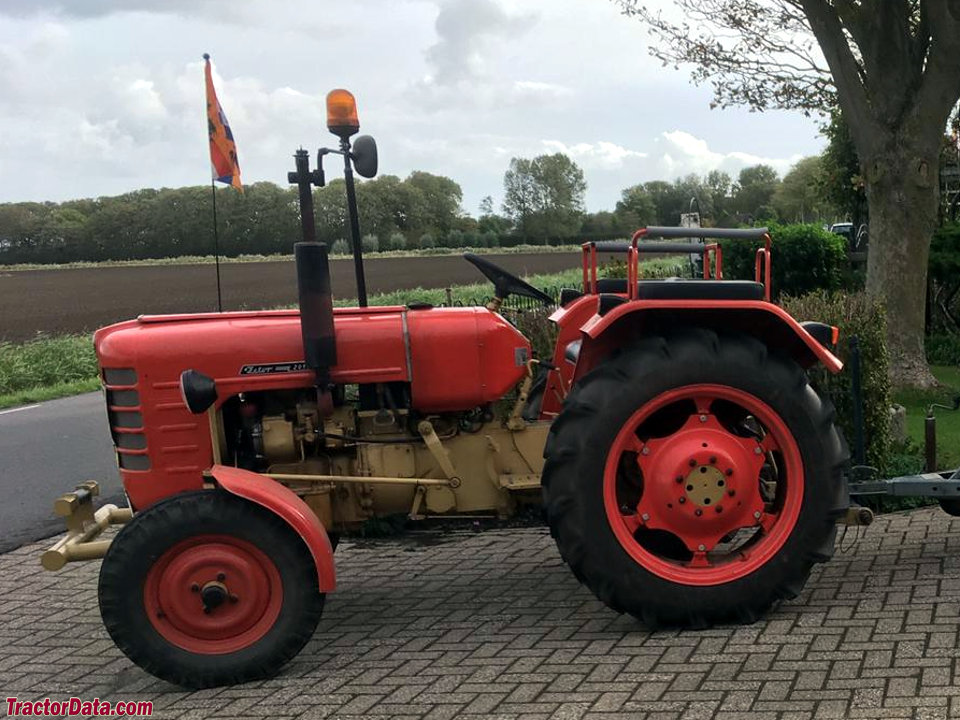

Zetor 2011
