Zetor 7540
The Zetor 7540 is a tractor produced by Zetor. It is equipped with a 253.6 ci 4.2 L engine. The rated power output is 71 hp 52.9 kW. Transmission: 18 forward and 6 reverse. Operating weight: 8,095 lbs 3671 kg.
Engine Power
71 hp
52.9 kW
Fuel & Capacities
Diesel
Transmission
18 forward and 6 reverse
Operating Weight
8,095 lbs
3671 kg
Zetor 7540 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1995 - 1999
Range 3 Series |
|---|---|
1995 - 1999 | |
Range 3 Series | |
Production | |
|---|---|
Manufacturer | Zetor |
Built in Brno, Czech Republic | |
Original price | $34,000 (1995) |
Variants | |
|---|---|
7520 | 2WD |
7540 | 4WD |
Zetor 7540 Engine | |
|---|---|
Zetor 4.2L 4-cyl diesel | |
Engine details ...  |
Zetor 7540 Power | |
|---|---|
Engine | 71 hp
52.9 kW |
PTO (claimed) | 63 hp
47.0 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Hydraulic wet disc brakes | |
Cab standard with heater. | |
Hydraulics | |
|---|---|
Type | open |
Pressure | 2682 psi
184.9 bar |
Valves | 3 |
Total flow | 15.85 gpm
60.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 7,165 lbs
3250 kg |
Front Hitch | optional |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 93.5 inches
237 cm |
Weight | 8,095 lbs
3671 kg |
Front tire | 7.50-20 |
Rear tire | 16.9-34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 55 |
Charging volts | 12 |
Battery volts | 12 |
References | |
|---|---|
 | |
Unified Range 3 published by Zetor |
Engine
Engine Detail — 253.6 ci / 4.2 L Diesel
Manufacturer | Zetor Z 7801 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 253.6 ci
4.2 L |
Bore/Stroke | 4.134x4.724 inches
105 x 120 mm |
Power | 71 hp
52.9 kW |
Rated RPM | 2200 |
Starter volts | 12 |
Starter power | 4.6 hp
3.4 kW |
Transmission
Transmission options | |
|---|---|
16-speed | |
18-speed synchromesh |
Transmission — 16 forward and 4 reverse
Gears | 16 forward and 4 reverse |

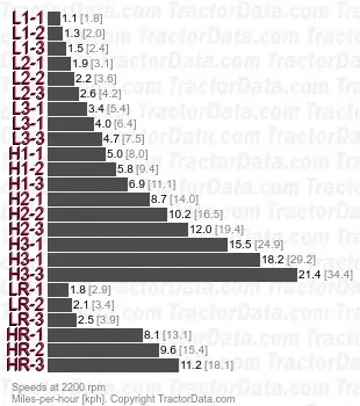

Transmission — 18 forward and 6 reverse synchromesh
Type | synchromesh |
Gears | 18 forward and 6 reverse |
Three gears in high/low/reverse ranges with a three-speed torque multiplier. | |
With 16.9x38 rear tires. | |
 | |
Dimensions
Zetor 7540 Tires | |
|---|---|
Ag front | 7.50-20 |
Ag rear | 16.9-34 |
Ag rear | 13.6-38 |
Dimensions | |
|---|---|
Wheelbase | 93.5 inches
237 cm |
Length | 153.5 inches
389 cm |
Width | 75.9 inches
192 cm |
Height (cab) | 104 inches
264 cm |
Height (exhaust) | 109.2 inches
277 cm |
Weight | 8,095 lbs
3671 kg |
Ground clearance | 14.6 inches
37 cm |
Rear tread | 59.1 to 70.9 inches
150 to 180 cm |
