Zetor 8211
The Zetor 8211 is a tractor produced by Zetor. It is equipped with a 278.4 ci 4.6 L engine. The rated power output is 80 hp 59.7 kW. Transmission: 16 forward and 8 reverse. Operating weight: 8,807 lbs 3994 kg.
Engine Power
80 hp
59.7 kW
Fuel & Capacities
33 gal
124.9 L
Transmission
16 forward and 8 reverse
Operating Weight
8,807 lbs
3994 kg
Zetor 8211 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1990 - 1997
Row-Crop tractor |
|---|---|
1990 - 1997 | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Zetor |
Row-Crop tractor | |
Built in Brno, Czechoslovakia | |
Original price was $22,500 in 1992 | |
Variants | |
|---|---|
8211 | 2WD |
8245 | 4WD |
Zetor 8211 Engine | |
|---|---|
Zetor 4.6L 4-cyl diesel | |
Fuel tank | 33 gal
124.9 L |
Engine details ...  | |
Zetor 8211 Transmission | |
|---|---|
16-speed synchromesh | |
Transmission details ...  |
Zetor 8211 Power | |
|---|---|
Engine | 80 hp
59.7 kW |
PTO (claimed) | 72 hp
53.7 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Hydraulic dry disc brakes | |
Trailer brakes | hydraulic OptOptional |
Cab standard with heat and radio. | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2741 psi
189.0 bar |
Valves | 2 |
Total flow | 11.1 gpm
42.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 7937 lbs
3600 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Weight | 8,807 lbs
3994 kg |
Front tire | 11.5-15 |
Rear tire | 16.9-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 55 |
References | |
|---|---|
 | |
8211 - 8245 published by Zetor |
Engine
Engine Detail — 278.4 ci / 4.6 L Diesel
Manufacturer | Zetor Z 8401.12 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 278.4 ci
4.6 L |
Bore/Stroke | 4.33x4.72 inches
110 x 120 mm |
Power | 80 hp
59.7 kW |
Fuel system | direct injection |
Rated RPM | 2200 |
Coolant capacity | 19 qts
18.0 L |

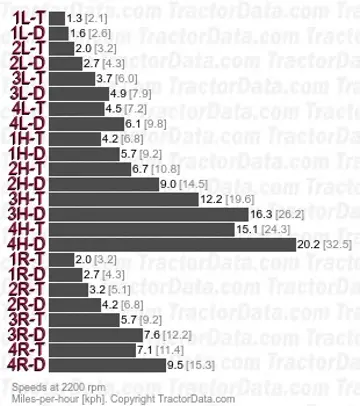

Transmission
Transmission — 16 forward and 8 reverse synchromesh
Type | synchromesh |
Gears | 16 forward and 8 reverse |
Clutch | 350mm hydraulic dry disc |
Four gears in low/high/reverse ranges with two-speed torque multiplier. | |
With 16.9-38 rear tires. | |
 | |
Dimensions
Zetor 8211 Tires | |
|---|---|
Ag front | 11.5-15 |
Ag rear | 16.9-38 |
Dimensions | |
|---|---|
Length | 156.7 inches
398 cm |
Width | 76.8 inches
195 cm |
Height (cab) | 106.7 inches
271 cm |
Height (exhaust) | 111.8 inches
283 cm |
Weight | 8,807 lbs
3994 kg |
Ballasted weight | 10,420 lbs
4726 kg |
Ground clearance | 16.5 inches
41 cm |
Rear tread | 59.1 to 73.8 inches
150 to 187 cm |
