Zetor 8540
The Zetor 8540 is a tractor produced by Zetor. It is equipped with a 253.6 ci 4.2 L engine. The rated power output is 80 hp 59.7 kW. Transmission: 18 forward and 6 reverse. Operating weight: 8,195 lbs 3717 kg.
Engine Power
80 hp
59.7 kW
Transmission
18 forward and 6 reverse
Operating Weight
8,195 lbs
3717 kg
Zetor 8540 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1995 - 1999
Range 3 Series |
|---|---|
1995 - 1999 | |
Range 3 Series | |
Production | |
|---|---|
Manufacturer | Zetor |
Built in Brno, Czech Republic | |
Original price | $34,000 (1995) |
Variants | |
|---|---|
8520 | 2WD |
8540 | 4WD |
Zetor 8540 Engine | |
|---|---|
Zetor 4.2L 4-cyl diesel | |
Engine details ...  |
Zetor 8540 Power | |
|---|---|
Engine | 80 hp
59.7 kW |
PTO (claimed) | 76 hp
56.7 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Hydraulic wet disc brakes | |
Cab standard with heater. | |
Hydraulics | |
|---|---|
Type | open |
Pressure | 2682 psi
184.9 bar |
Valves | 3 |
Total flow | 15.85 gpm
60.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 8,598 lbs
3900 kg |
Front Hitch | optional |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 93.5 inches
237 cm |
Weight | 8,195 lbs
3717 kg |
Front tire | 12.4-24 |
Rear tire | 16.9-34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 55 |
Charging volts | 12 |
Battery volts | 12 |
References | |
|---|---|
 | |
8520-8540-9520-9540 published by Zetor | |
Unified Range 3 published by Zetor |
Engine
Engine Detail — 253.6 ci / 4.2 L Diesel
Manufacturer | Zetor Z 1201 |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 253.6 ci
4.2 L |
Bore/Stroke | 4.134x4.724 inches
105 x 120 mm |
Power | 80 hp
59.7 kW |
Rated RPM | 2200 |
Starter volts | 12 |
Starter power | 4.6 hp
3.4 kW |
Transmission
Transmission options | |
|---|---|
16-speed | |
18-speed synchromesh |
Transmission — 16 forward and 4 reverse
Gears | 16 forward and 4 reverse |

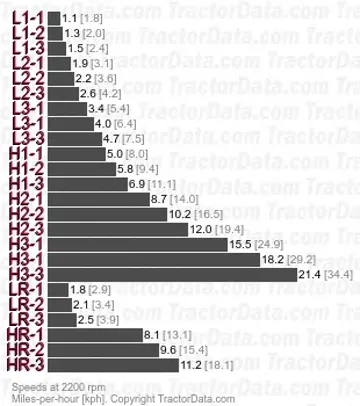

Transmission — 18 forward and 6 reverse synchromesh
Type | synchromesh |
Gears | 18 forward and 6 reverse |
Three gears in high/low/reverse ranges with a three-speed torque multiplier. | |
With 16.9x38 rear tires. | |
 | |
Dimensions
Zetor 8540 Tires | |
|---|---|
Ag front | 12.4-24 |
Ag rear | 16.9-34 |
Ag rear | 13.6-38 |
Dimensions | |
|---|---|
Wheelbase | 93.5 inches
237 cm |
Length | 153.5 inches
389 cm |
Width | 75.9 inches
192 cm |
Height (cab) | 104 inches
264 cm |
Height (exhaust) | 109.2 inches
277 cm |
Weight | 8,195 lbs
3717 kg |
Ground clearance | 14.6 inches
37 cm |
Rear tread | 59.1 to 70.9 inches
150 to 180 cm |
Photos
Zetor 8540 tractor photo
