Zetor 9540

The Zetor 9540 is a tractor produced by Zetor. It is equipped with a 253.6 ci 4.2 L engine. The listed engine power is Diesel (listed): 93 hp / 69.4 kW; Diesel (listed): 4.6 hp / 3.4 kW. Transmission: 18 forward and 6 reverse. Operating weight: 8,426 lbs 3822 kg.

Overview

	1991 - 1999 Range 3 Series

Production
Manufacturer	Zetor
Built in Brno, Czech Republic
Original price was $37,000 in 1995

Variants
9520	2WD
9540	4WD

Zetor 9540 Engine
Zetor 4.2L 4-cyl diesel
Engine details ...

Zetor 9540 Transmission
18-speed synchromesh
Transmission details ...

Zetor 9540 Power
Engine	93 hp 69.4 kW
PTO (claimed)	86 hp 64.1 kW

Mechanical
Four-wheel drive
Power steering
Hydraulic wet disc brakes
Cab standard with heater.

Hydraulics
Type	open
Pressure	2682 psi 184.9 bar
Valves	3
Total flow	15.85 gpm 60.0 lpm

Tractor hitch
Rear Type	II
Rear lift	8,598 lbs 3900 kg
Front Hitch	optional

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	93.5 inches 237 cm
Weight	8,426 lbs 3822 kg
Front tire	12.4-24
Rear tire	16.9-38
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	55
Charging volts	12
Battery volts	12

References
8520-8540-9520-9540 published by Zetor
Unified Range 3 published by Zetor

Engine

Engine Detail — 253.6 ci / 4.2 L Diesel

Manufacturer	Zetor Z 1001
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	253.6 ci 4.2 L
Bore/Stroke	4.134x4.724 inches 105 x 120 mm
Power	93 hp 69.4 kW
Rated RPM	2200
Starter volts	12
Starter power	4.6 hp 3.4 kW

Transmission

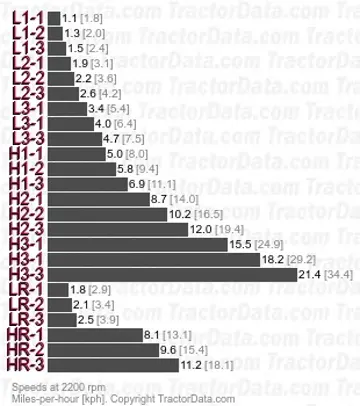

Transmission — 18 forward and 6 reverse synchromesh

Type	synchromesh
Gears	18 forward and 6 reverse
Three gears in high/low/reverse ranges with a three-speed torque multiplier.
With 16.9x38 rear tires.

Dimensions

Zetor 9540 Tires
Ag front	12.4-24
Ag rear	16.9-38
Ag front	14.9-24
Ag rear	18.4-34

Dimensions
Wheelbase	93.5 inches 237 cm
Length	153.5 inches 389 cm
Width	75.9 inches 192 cm
Height (cab)	105.7 inches 268 cm
Height (exhaust)	109.6 inches 278 cm
Weight	8,426 lbs 3822 kg
Ground clearance	19.3 inches 49 cm
Rear tread	59.1 to 70.9 inches 150 to 180 cm

Photos

Zetor 9540, right side.

Zetor 9540, left side.
