Kubota M85D
The Kubota M85D is a tractor produced by Kubota. It is equipped with a 230 ci 3.8 L engine. The rated power output is 83.8 hp 62.5 kW. Transmission: 24 forward and reverse. Operating weight: 7253 lbs 3289 kg.
Engine Power
83.8 hp
62.5 kW
Fuel & Capacities
50.2 gal
190.0 L
Transmission
24 forward and reverse
Operating Weight
7253 lbs
3289 kg
Kubota M85D Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2005 - 2008
Grandom SeriesUtility tractor |
|---|---|
2005 - 2008 | |
Grandom Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Utility tractor | |
Kubota M85D Engine | |
|---|---|
Kubota 3.8L 4-cyl diesel | |
Fuel tank | 50.2 gal
190.0 L |
Engine details ...  | |
Kubota M85D Power | |
|---|---|
Engine | 83.8 hp
62.5 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with air-conditioning. |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and electronic draft control |
Rear lift | 6173 lbs
2800 kg |
8598 lbs*With optional lift cylinder.
3900 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Engine RPM | 540@2205 |
1000@2389 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 95.9 inches
243 cm |
Weight | 7253 lbs
3289 kg |
Front tire | 9.5-24 |
Rear tire | 13.9-36 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 230 ci / 3.8 L Diesel
Manufacturer | Kubota V3800-T |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 230 ci
3.8 L |
Bore/Stroke | 3.94x4.72 inches
100 x 120 mm |
Power | 83.8 hp
62.5 kW |
Fuel system | direct injection |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
16-speed power shift | |
24-speed creeper |

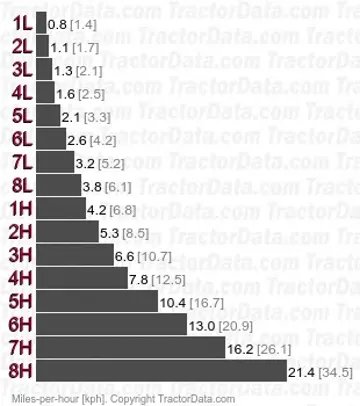

Transmission — 16 forward and reverse power shift
Type | power shift |
Gears | 16 forward and reverse |
Clutch | hydraulic wet disc |
Eight power-shift gears in two ranges with shuttle. | |
 | |
Transmission — 24 forward and reverse creeper
Type | creeper |
Gears | 24 forward and reverse |
Optional creeper adds an additional 8-speed range to the standard transmission. | |
 | |
Dimensions
Kubota M85D Tires | |
|---|---|
Standard tires (ag) | Front: 9.5-24. Rear: 13.9-36 |
Dimensions | |
|---|---|
Wheelbase | 95.9 inches
243 cm |
Length | 159.5 inches
405 cm |
Width | 77.2 inches
196 cm |
Height | 104.3 inches
264 cm |
Weight | 7253 lbs
3289 kg |
Ground clearance | 17.3 inches
43 cm |
Front tread | 52.4 to 59.8 inches
133 to 151 cm |
Rear tread | 52 to 75.6 inches
132 to 192 cm |
