Zetor Zebra 2040
The Zetor Zebra 2040 is a tractor produced by Zetor Zebra. It is equipped with a 69.9 ci 1.1 L engine. The rated power output is 23.46 hp 17.5 kW. Transmission: 6 forward and 3 reverse. Operating weight: 2,508 lbs 1137 kg.
Engine Power
23.46 hp
17.5 kW
Fuel & Capacities
3 gal
11.4 L
Transmission
6 forward and 3 reverse
Operating Weight
2,508 lbs
1137 kg
Zetor Zebra 2040 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 |
|---|
Production | |
|---|---|
Manufacturer | Zetor Zebra |
Zetor Zebra 2040 Engine | |
|---|---|
Slavia 1.1L 2-cyl diesel | |
Engine details ...  |
Zetor Zebra 2040 Transmission | |
|---|---|
6-speed unsynchronized gear | |
Transmission details ...  |
Zetor Zebra 2040 Power | |
|---|---|
Engine | 23.46 hp
17.5 kW |
Drawbar (claimed) | 20 hp
14.9 kW |
PTO (claimed) | 23 hp
17.2 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | foot pedal |
Steering | power |
Mechanical drum brakes | |
ROPS. | |
Capacity | |
|---|---|
Fuel | 3 gal
11.4 L |
Hydraulic system | 1.p gal
3.8 L |
Front diff. | 10.5 qts
9.9 L |
Rear diff. | 10.5 qts
9.9 L |
Hydraulics | |||
|---|---|---|---|
Capacity | 1.p gal
3.8 L | ||
Pump flow | 2.5 gpm
9.5 lpm | ||
Total flow | 2.5 gpm
9.5 lpm | ||
Oil type | SAE10 Hyd oil | SAE10 Hyd oil | |
SAE10 Hyd oil |
|---|
Tractor hitch | |
|---|---|
Rear Type | IN |
Rear lift (at ends) | 2,375 lbs
1077 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 46.45 inches
117 cm |
Weight | 2,508 lbs
1137 kg |
Front tire | 7.50x16 |
Rear tire | 7.50x16 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 69.9 ci / 1.1 L Diesel
Manufacturer | Slavia 2S90A |
Fuel Type | Diesel |
Configuration | 2-cylinder, air-cooled |
Displacement | 69.9 ci
1.1 L |
Bore/Stroke | 3.543x3.543 inches
90 x 90 mm |
Power | 23.46 hp
17.5 kW |
Compression | 17.2:1 |
Rated RPM | 2000 |
Intake valve clearance | 0.006 inches (cold)
0.152 mm |
Exhaust valve clearance | 0.006 inches (cold)
0.152 mm |
Oil capacity | 5.25 qts
5.0 L |
Transmission
Transmission — 6 forward and 3 reverse unsynchronized gear
Type | unsynchronized gear |
Gears | 6 forward and 3 reverse |
Three speeds in two forward ranges, plus reverse. Tractor must be stopped, and clutch used, to shift ranges or gears. | |
With 7.50x16 tires. | |
 | |
Dimensions
Zetor Zebra 2040 Tires | |
|---|---|
Ag front | 7.50x16 |
Ag rear | 7.50x16 |
Dimensions | |
|---|---|
Wheelbase | 46.45 inches
117 cm |
Length | 110.62 inches
280 cm |
Width | 47.2 inches
119 cm |
Height | 45.2 inches
114 cm |
Height (ROPS) | 78.7 inches
199 cm |
Weight | 2,508 lbs
1137 kg |
Ground clearance | 10.2 inches
25 cm |
Photos

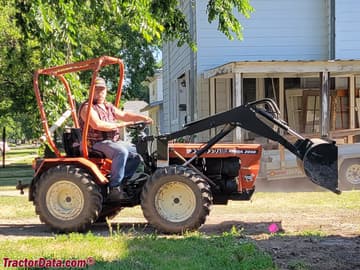

Zetor Zebra 2040, right side.

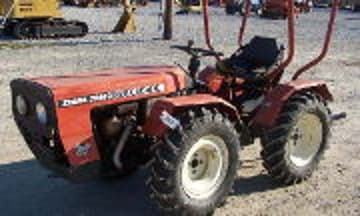

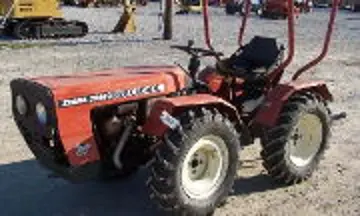

Zetor Zebra 2040, front view.
