Iseki TH215

The Iseki TH215 is a tractor produced by Iseki. It is equipped with a 91.4 ci 1.5 L engine. The rated power output is 21.2 hp 15.8 kW. Transmission: 24 forward and reverse. Operating weight: 1984 lbs 899 kg.

Overview

	2010 - 2016 TH5 SeriesCompact Utility tractor
2010 - 2016
TH5 Series
Compact Utility tractor

2010 - 2016
TH5 Series
Compact Utility tractor

Production
Manufacturer	Iseki
Compact Utility tractor

Iseki TH215 Engine
Iseki 1.5L 3-cyl diesel
Fuel tank	6.6 gal 25.0 L
Engine details ...

Iseki TH215 Transmissions
12-speed gear
24-speed partial power shift
Transmission details ...

Iseki TH215 Power
Engine	21.2 hp 15.8 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post folding ROPS.

Tractor hitch
Rear Type	JIS0

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	523@2500
	783@2500
	1184@2500

Dimensions & Tires
Weight	1984 lbs 899 kg
Front tire	6-14
Rear tire	9.5-22
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	55

References
TH5 Series - Stylish Field Work published in 2016, by Iseki
Operator's Manual TH5 Series (1765-912-011-0) published in 2016

Engine

	2010 - 2016 TH5 SeriesCompact Utility tractor
2010 - 2016
TH5 Series
Compact Utility tractor

2010 - 2016
TH5 Series
Compact Utility tractor

Engine Detail
Iseki E3CD
diesel
3-cylinder
liquid-cooled
Displacement	91.4 ci 1.5 L
Bore/Stroke	3.43x3.31 inches 87 x 84 mm
Power	21.2 hp 15.8 kW
Rated RPM	2500
Starter	electric
Starter volts	12

Transmission

	2010 - 2016 TH5 SeriesCompact Utility tractor
2010 - 2016
TH5 Series
Compact Utility tractor

2010 - 2016
TH5 Series
Compact Utility tractor

Transmission options
12-speed gear
24-speed partial power shift

Transmission
Type	gear
Gears	12 forward and reverse
Clutch	dry disc
Four gears in three ranges with mechanical shuttle.

Speeds

Transmission
Type	partial power shift
Gears	24 forward and reverse
Eight power shift gears in three ranges with power shuttle.

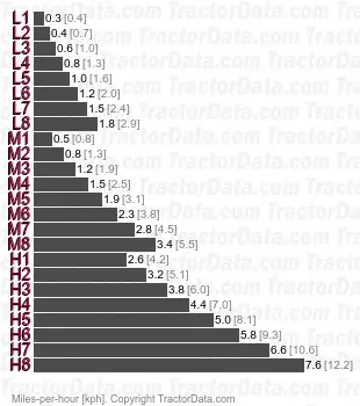

Speeds

Dimensions

	2010 - 2016 TH5 SeriesCompact Utility tractor
2010 - 2016
TH5 Series
Compact Utility tractor

2010 - 2016
TH5 Series
Compact Utility tractor

Iseki TH215 Tires
Standard tires (ag)	Front: 6-14. Rear: 9.5-22
Optional tires (ag)	Front: 7-14. Rear: 9.5-24

Dimensions
Length	106.3 inches 270 cm
Width	46.5 inches 118 cm
Height (ROPS)	77.2 inches 196 cm
Weight	1984 lbs 899 kg
Ground clearance	13 inches 33 cm
Front tread	37.8 inches 96 cm
Rear tread	34.7/40.8 inches 88/103 cm

Photos

Iseki TH215 tractor photo
