AGCO GT75
The AGCO GT75 is a tractor produced by Agco. It is equipped with a 244 ci 4.0 L engine. The listed engine power is Diesel (listed): 83 hp / 61.9 kW. Transmission: synchro-shuttle. Operating weight: 5511 to 6525 pounds.
Engine Power
Diesel (listed): 83 hp / 61.9 kW
Fuel & Capacities
23.7 gal
89.7 L
Transmission
synchro-shuttle
Operating Weight
5511 to 6525 pounds
Overview
 | 2004 - 2007
GT SeriesUtility tractor
GT Series
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | AGCO |
Utility tractor | |
Built in Italy | |
AGCO GT75 Engine | |
|---|---|
SAME Deutz-Fahr 4.0L 4-cyl diesel | |
Fuel tank | 23.7 gal
89.7 L |
Engine details ...  | |
AGCO GT75 Transmission | |
|---|---|
16-speed | |
Transmission details ...  |
AGCO GT75 Power | |
|---|---|
Engine | 83 hp
61.9 kW |
PTO (claimed) | 74 hp
55.2 kW |
PTO (tested) | 76.31 hp
56.9 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Final drives | planetary |
Differential lock | mechanical rear |
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. Cab optional with air-conditioning. | |
Hydraulics | |
|---|---|
Type | open center |
Pump flow | 14 gpm
53.0 lpm |
Total flow | 22.7 gpm
85.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift (at 24"/610mm) | 3520 lbs
1596 kg |
Rear Arms | fixed |
telescopic OptOptional | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@1967 |
1000@2043 | |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 88 inches
223 cm |
4WD Wheelbase | 86 inches
218 cm |
Weight | 5511 to 6525 pounds |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
References | |
|---|---|
 | |
GT Series - Rugged Comfort published in 2003, by AGCO | |
GT Series published in 2003, by AGCO | |
GT Series published in 2004, by AGCO |
Engine
Engine Detail — 244 ci / 4.0 L Diesel
Manufacturer | SAME Deutz-Fahr |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 244 ci
4.0 L |
Bore/Stroke | 4.134x4.547 inches
105 x 115 mm |
Power | 83 hp
61.9 kW |
Air cleaner | dry element |
Compression | 16.0:1 |
Rated RPM | 2200 |
Torque | 237 lb-ft
321.4 Nm |
Torque RPM | 1299 |
Starter volts | 12 |
Transmission
Transmission — synchro-shuttle
Transmission | synchro-shuttle |
Gears | 16 forward and 8 reverse |
Clutch | dry disc |
Dimensions
AGCO GT75 Tires |
|---|
Dimensions | |
|---|---|
2WD Wheelbase | 88 inches
223 cm |
4WD Wheelbase | 86 inches
218 cm |
Length | 151.6 inches
385 cm |
Width | 76.7 inches
194 cm |
Height | 106 inches
269 cm |
2WD Front tread | 54.6 to 66.4 inches
138 to 168 cm |
4WD Front tread | 57.5 to 69.1 inches
146 to 175 cm |
Rear tread | 55.1 to 74.8 inches
139 to 189 cm |
AGCO GT75 Weight | |
|---|---|
2WD ROPS | 5511 lbs
2499 kg |
4WD ROPS | 5996 lbs
2719 kg |
2WD Cab | 6040 lbs
2739 kg |
4WD Cab | 6525 lbs
2959 kg |
Tests
Nebraska Tractor Test 1850 | |
|---|---|
Diesel 16-speed 4WD
May 20 - 26, 2005
Link: Nebraska Tractor Test 1850 file | |
PTO performance | |
Power at rated engine speed | 76.31 hp
56.9 kW |
Fuel use | 4.9 gal/hour
18.5 l/hour |
Power at rated PTO speed | 76.81 hp
57.3 kW |
Fuel use | 4.7 gal/hour
17.8 l/hour |
Photos

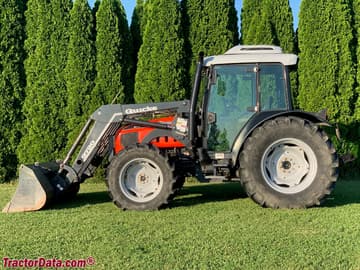

AGCO GT75
Recommended Implements & Sizing Guide
Engineering recommendations for Agco GT75 based on its 83 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Agco GT75.
Estimated Continuous Field Runtime: 5.5 hrs
Approximately 5.5 hours of continuous field operation at ~75% rated power on a full tank (23.7 gal / 89.7 L).
Estimated 75% Load Fuel Burn~4.3 gal/hr (16.3 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Agco GT75 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Agco GT75.
Converted Equivalents:
Horsepower (HP)83 hp
Kilowatts (kW)61.9 kW
Metric Horsepower (PS / CV)84.2 PS
Direct Competitor Comparison
Compare AGCO GT75 against same-era industry alternatives in the same horsepower class.
Current Model
Agco
AGCO GT75
Engine Power:Diesel (listed): 83 hp / 61.9 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 784
Engine Power:74.9
Production Years:1977 - 1984
