AGCO RT115
The AGCO RT115 is a tractor produced by Agco. It is equipped with a 359 ci 5.9 L engine. The listed engine power is 116.2 hp 86.7 kW. Transmission: Quadrashift. Operating weight: 8450 to 12900 pounds.
Engine Power
116.2 hp
86.7 kW
Fuel & Capacities
42 gal
159.0 L
Transmission
Quadrashift
Operating Weight
8450 to 12900 pounds
Overview
 | 2002 - 2004
RT SeriesRow-Crop tractor
RT Series
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | AGCO |
Row-Crop tractor | |
Built in Beauvais, France | |
AGCO RT115 Engine | |
|---|---|
Cummins 5.9L 6-cyl diesel | |
Fuel tank | 42 gal
159.0 L |
59 galOptOptional
223.3 L | |
Engine details ...  | |
AGCO RT115 Transmission | |
|---|---|
32-speed partial power shift | |
Transmission details ...  |
AGCO RT115 Power | |
|---|---|
PTO (claimed) | 115 hp
85.8 kW |
Drawbar (tested) | 104.1 hp
77.6 kW |
PTO (tested) | 121.4 hp
90.5 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Steering | hydrostatic power |
Hydraulic wet disc brakes | |
Two-post ROPS. Cab optional. | |
Hydraulics | |
|---|---|
Type | closed center |
Pressure | 2900 psi
200.0 bar |
Pump flow | 29 gpm
109.8 lpm |
SCV flow | 27.7 gpm
104.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift (at 24"/610mm) | 9,000 lbs
4082 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 112.6 inches
286 cm |
Weight | 8450 to 12900 pounds |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
RT/DT Series - Ready to Rumble published in 2001, by AGCO |
Engine
Engine Detail — 359 ci / 5.9 L Diesel
Manufacturer | Cummins B5.9T |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 359 ci
5.9 L |
Bore/Stroke | 4.016x4.724 inches
102 x 120 mm |
Compression | 17.4:1 |
Rated RPM | 2200 |
Torque | 386.2 lb-ft
523.7 Nm |
Torque RPM | 1547 |
Starter volts | 12 |
Transmission
Transmission — Quadrashift
Transmission | Quadrashift |
Type | partial power shift |
Gears | 32 forward and reverse |
Clutch | wet disc |
Four power shift gears in eight synchronized ranges. | |
Dimensions
AGCO RT115 Tires |
|---|
Dimensions | |
|---|---|
Wheelbase | 112.6 inches
286 cm |
Length | 173 inches
439 cm |
Width | 88 inches
223 cm |
Height (cab) | 109 inches
276 cm |
AGCO RT115 Weight | |
|---|---|
2WD ROPS Shipping | 8,450 lbs
3832 kg |
4WD ROPS Shipping | 9,250 lbs
4195 kg |
2WD Cab Shipping | 10,400 lbs
4717 kg |
4WD Cab Shipping | 11,280 lbs
5116 kg |
Operating | 12,900 lbs
5851 kg |
Tests
OCED Tractor Test 2000 | |
|---|---|
Diesel 32-speed 4WD
April 2002 - June 2002,
Link: OCED Tractor Test 2000 file | |
PTO performance | |
Max power | 121.4 hp
90.5 kW |
Fuel use | 7.1 gal/hour
26.9 l/hour |
Power at rated engine speed | 116.2 hp
86.7 kW |
Fuel use | 7.3 gal/hour
27.6 l/hour |
Power at rated PTO speed | 120.4 hp
89.8 kW |
Fuel use | 7.2 gal/hour
27.3 l/hour |
Drawbar performance | |
Max power | 104.1 hp
77.6 kW |
Fuel use | 7.3 gal/hour
27.6 l/hour |
Gear 2LA used for power test. | |
Max pull | 10,630 lbs
4821 kg |
Gear 2TD used for pull test. | |
Photos

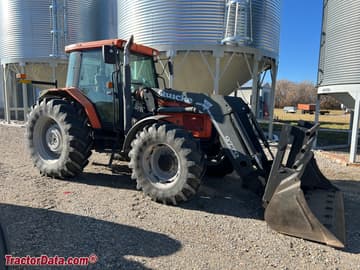

AGCO RT115 row-crop tractor with Quicke Q770 front-end loader.
Recommended Implements & Sizing Guide
Engineering recommendations for Agco RT115 based on its 116.2 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Agco RT115.
Estimated Continuous Field Runtime: 7 hrs
Approximately 7 hours of continuous field operation at ~75% rated power on a full tank (42 gal / 159 L).
Estimated 75% Load Fuel Burn~6 gal/hr (22.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Agco RT115 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Agco RT115.
Converted Equivalents:
Horsepower (HP)116.2 hp
Kilowatts (kW)86.7 kW
Metric Horsepower (PS / CV)117.8 PS
Direct Competitor Comparison
Compare AGCO RT115 against same-era industry alternatives in the same horsepower class.
Current Model
Agco
AGCO RT115
Engine Power:116.2 hp
86.7 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 1056
Engine Power:105
Production Years:1982 - 1985
