Massey Ferguson 1200

The Massey Ferguson 1200 is a tractor produced by Massey Ferguson. It is equipped with a 354 ci 5.8 L engine. The listed engine power is Diesel (listed): 105 hp / 78.3 kW. Transmission: Multi-Power. Operating weight: 11,370 lbs 5157 kg.

Engine Power

Diesel (listed): 105 hp / 78.3 kW

Fuel & Capacities

84 gal 317.9 L

Transmission

Multi-Power

Operating Weight

11,370 lbs 5157 kg

Overview

	1972 - 1979 Four-wheel Drive (4WD) tractor

Production
Manufacturer	Massey Ferguson
Four-wheel Drive (4WD) tractor
Built in Manchester, England

Massey Ferguson 1200 Engine
Perkins 5.8L 6-cyl diesel
Engine details ...

Massey Ferguson 1200 Power
Engine	105 hp 78.3 kW
PTO (claimed)	91.2 hp 68.0 kW

Mechanical
Four-wheel drive
Steering	hydrostatic power
Hydraulic disc brakes
Cab standard, optional heat and air-conditioning.

Capacity
Fuel	84 gal 317.9 L
Hydraulic system	4.8 gal 18.2 L

Hydraulics
Capacity	4.8 gal 18.2 L
Pressure	2900 psi 200.0 bar
Total flow	11.8 gpm 44.7 lpm

Tractor hitch
Rear Type	II
Rear lift	7,500 lbs 3402 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000

Dimensions & Tires
Wheelbase	100.8 inches 256 cm
Weight	11,370 lbs 5157 kg
Front tire	16.9-34
Rear tire	16.9-34
Full dimensions and tires ...

Engine

Engine Detail — 354 ci / 5.8 L Diesel

Manufacturer	Perkins A6.354
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	354 ci 5.8 L
Bore/Stroke	3.875x5.00 inches 98 x 127 mm
Power	105 hp 78.3 kW
Air cleaner	dual dry element
Compression	16:1
Rated RPM	2400
Torque	269.8 lb-ft 365.8 Nm
Torque RPM	1400
Oil capacity	10.8 qts 10.2 L
Coolant capacity	15.6 qts 14.8 L

Transmission

Transmission options
8-speed
12-speed

Transmission — 8 forward and 2 reverse

Gears	8 forward and 2 reverse
Clutch	single dry plate
Oil capacity	19.2 qts 18.2 L

Transmission — Multi-Power

Transmission	Multi-Power
Gears	12 forward and 4 reverse
Clutch	single dry plate
Oil capacity	19.2 qts 18.2 L

Dimensions

Massey Ferguson 1200 Tires
Ag front	16.9-34
Ag rear	16.9-34

Dimensions
Wheelbase	100.8 inches 256 cm
Length	199.6 inches 506 cm
Width	59.8 inches 151 cm
Height (cab)	114.6 inches 291 cm
Weight	11,370 lbs 5157 kg
Ground clearance	15 inches 38 cm

Photos

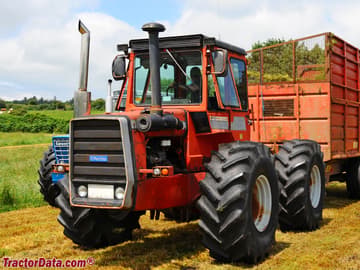

Massey Ferguson 1200 four-wheel drive tractor.

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 1200 based on its 105 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 1200.

Estimated Continuous Field Runtime: 15.4 hrs

Approximately 15.4 hours of continuous field operation at ~75% rated power on a full tank (84 gal / 318 L).

Estimated 75% Load Fuel Burn~5.5 gal/hr (20.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
