AGCO Allis 9670

The AGCO Allis 9670 is a tractor produced by Agco Allis. It is equipped with a 584 ci 9.6 L engine. The rated power output is 175.19 hp 130.6 kW. Transmission: 18 forward and 9 reverse. Operating weight: 16100 to 19400 pounds.

Overview

	1994 - 1995 9600 SeriesRow-Crop tractor
1994 - 1995
9600 Series
Row-Crop tractor

Production
Manufacturer	AGCO Allis (a part of AGCO)
Row-Crop tractor
Original price was $85,000 in 1995

AGCO Allis 9670 Engine
Deutz 9.6L 6-cyl diesel
Fuel tank	97 gal 367.1 L
Engine details ...

AGCO Allis 9670 Transmission
18-speed full power shift
Transmission details ...

AGCO Allis 9670 Power
PTO (claimed)	175 hp 130.5 kW
Drawbar (tested)	152.23 hp 113.5 kW
PTO (tested)	181.12 hp 135.1 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Final drives	inboard planetary
Differential lock	electro-hydraulic rear
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Type	closed center pressure-compensating
Pressure	2500 psi 172.4 bar
Rear valves	3 or 4
Pump flow	23 gpm*Advertised. Actual tested flow was 19.5 GPM. 87.1 lpm

Tractor hitch
Rear Type	III/II
Control	lower-link draft sensing
Rear lift (at 24"/610mm)	8500 lbs*Claimed lift. Lift during testing was 6620 pounds. 3855 kg
	9900 lbs*Claimed lift with optional assist cylinder. Lift during testing was 8172. 4490 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	1000

Dimensions & Tires
2WD Wheelbase	121.5 inches 308 cm
4WD Wheelbase	115 inches 292 cm
Weight	16100 to 19400 pounds
Front tire	11.00-16
2WD Rear tire	20.8R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	105
Batteries	2
Battery CCA	580
Battery volts	12

References
9600/9800 Series Tractors published by AGCO
9600 Series published in 1991, by AGCO

Engine

Engine Detail — 584 ci / 9.6 L Diesel

Manufacturer	Deutz BF6L513R
Configuration	turbocharged diesel, 6-cylinder, air-cooled
Displacement	584 ci 9.6 L
Bore/Stroke	4.92x5.12 inches 125 x 130 mm
Pre-heating	ether injection
Compression	15.8:1
Rated RPM	2300
Starter volts	12
Oil capacity	24 qts 22.7 L

Transmission

Transmission — 18 forward and 9 reverse full power shift

Type	full power shift
Gears	18 forward and 9 reverse
Clutch	hydraulic wet disc

Dimensions

AGCO Allis 9670 Tires
2WD Standard tires (ag)	Front: 11.00-16. Rear: 20.8R38
4WD Standard tires (ag)	Front: 16.9R28. Rear: 20.8R38

Dimensions
2WD Wheelbase	121.5 inches 308 cm
4WD Wheelbase	115 inches 292 cm
Length	200 inches 508 cm
Width	96 inches 243 cm
Height (cab)	120.5 inches 306 cm
2WD Clearance (front axle)	23 inches 58 cm
4WD Clearance (front axle)	22 inches 55 cm
Clearance (drawbar)	17 inches 43 cm
Bar rear axle	3.875 by 96 inches 98 by 2438 mm
Bar rear axle	3.875 by 115 inches 98 by 2921 mm
2WD Front tread	62 to 82 inches 157 to 208 cm
4WD Front tread	61.2 to 87.2 inches 155 to 221 cm
Rear tread	64.1 to 107.1 inches 162 to 272 cm
Rear tread	64.1 to 126 inches 162 to 320 cm

AGCO Allis 9670 Weight
2WD Shipping	16100 lbs 7302 kg
4WD Shipping	18000 lbs 8164 kg
4WD Operating	19400 lbs 8799 kg

Tests

OCED Tractor Test 1683
Diesel 18-speed 4WD October 6 - 21, 1994 Link: OCED Tractor Test 1683 file
PTO performance
Max power	181.12 hp 135.1 kW
Fuel use	10.9 gal/hour 41.3 l/hour
Power at rated engine speed	175.19 hp 130.6 kW
Fuel use	11.5 gal/hour 43.5 l/hour
Power at rated PTO speed	181.12 hp 135.1 kW
Fuel use	10.9 gal/hour 41.3 l/hour
Drawbar performance
Max power	152.23 hp 113.5 kW
Fuel use	11.5 gal/hour 43.5 l/hour
Gear 7 used for power test.
Max pull	18749 lbs 8504 kg
Gear 4 used for pull test.

Photos

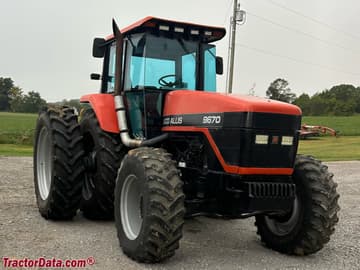

AGCO Allis 9670 row-crop tractor.
