AGCO Allis 9630

The AGCO Allis 9630 is a tractor produced by Agco Allis. It is equipped with a 374 ci 6.1 L engine. The rated power output is 135.76 hp 101.2 kW. Transmission: 18 forward and 9 reverse. Operating weight: 14800 to 17028 pounds.

Overview

	1993 - 1995 9600 SeriesRow-Crop tractor
1993 - 1995
9600 Series
Row-Crop tractor

Production
Manufacturer	AGCO Allis (a part of AGCO)
Row-Crop tractor
Original price was $72,000 in 1995

AGCO Allis 9630 Engine
Deutz 6.1L 6-cyl diesel
Fuel tank	67 gal 253.6 L
Engine details ...

AGCO Allis 9630 Transmission
18-speed full power shift
Transmission details ...

AGCO Allis 9630 Power
PTO (claimed)	135 hp 100.7 kW
Drawbar (tested)	120.01 hp 89.5 kW
PTO (tested)	144.71 hp 107.9 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Final drives	inboard planetary
Differential lock	electro-hydraulic rear
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Type	closed center pressure-compensating
Pressure	2250 psi 155.1 bar
Rear valves	3 or 4
Pump flow	24 gpm*Advertised. Flow during testing was 22.6 GPM. 90.8 lpm

Tractor hitch
Rear Type	III/II
Control	lower-link draft sensing
Rear lift (at 24"/610mm)	7212 lbs*During testing, actual lift was 5913 pounds. 3271 kg
	8544 lbs*Claimed lift with optional assist cylinder. During testing, actual lift was 6962 pounds. 3875 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	540/1000

Dimensions & Tires
2WD Wheelbase	124 inches 314 cm
4WD Wheelbase	116.5 inches 295 cm
Weight	14800 to 17028 pounds
Front tire	11.00-16
2WD Rear tire	18.4R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	105
Batteries	2
Battery CCA	580
Battery volts	12

References
9600/9800 Series Tractors published by AGCO
9600 Series published in 1991, by AGCO

Engine

Engine Detail — 374 ci / 6.1 L Diesel

Manufacturer	Deutz BF6L913C
Configuration	turbocharged intercooled diesel, 6-cylinder, air-cooled
Displacement	374 ci 6.1 L
Bore/Stroke	4.02x4.92 inches 102 x 125 mm
Pre-heating	ether injection
Compression	15.5:1
Rated RPM	2400
Starter volts	12
Oil capacity	17 qts 16.1 L

Transmission

Transmission — 18 forward and 9 reverse full power shift

Type	full power shift
Gears	18 forward and 9 reverse
Clutch	hydraulic wet disc

Dimensions

AGCO Allis 9630 Tires
2WD Standard tires (ag)	Front: 11.00-16. Rear: 18.4R38
4WD Standard tires (ag)	Front: 14.9R28. Rear: 18.4R38

Dimensions
2WD Wheelbase	124 inches 314 cm
4WD Wheelbase	116.5 inches 295 cm
2WD Length	187.5 inches 476 cm
4WD Length	196.5 inches 499 cm
Width	96 inches 243 cm
Height (cab)	119.7 inches 304 cm
2WD Clearance (front axle)	23 inches 58 cm
4WD Clearance (front axle)	22.5 inches 57 cm
Clearance (drawbar)	15.5 inches 39 cm
Bar rear axle	3.875 by 96 inches 98 by 2438 mm
Bar rear axle	3.875 by 115 inches 98 by 2921 mm
2WD Front tread	65 to 89 inches 165 to 226 cm
4WD Front tread	59.7 to 91.4 inches 151 to 232 cm
Rear tread	62 to 107.1 inches 157 to 272 cm
Rear tread	62 to 126 inches 157 to 320 cm

AGCO Allis 9630 Weight
2WD Shipping	14800 lbs 6713 kg
4WD Shipping	16100 lbs 7302 kg
4WD Operating	17028 lbs 7723 kg

Tests

OCED Tractor Test 1674
Diesel 18-speed 4WD April 8 - May 5, 1994 Link: OCED Tractor Test 1674 file
PTO performance
Max power	144.71 hp 107.9 kW
Fuel use	8.5 gal/hour 32.2 l/hour
Power at rated engine speed	135.76 hp 101.2 kW
Fuel use	8.7 gal/hour 32.9 l/hour
Power at rated PTO speed	143.81 hp 107.2 kW
Fuel use	8.6 gal/hour 32.6 l/hour
Drawbar performance
Max power	120.01 hp 89.5 kW
Fuel use	8.7 gal/hour 32.9 l/hour
Gear 7 used for power test.
Max pull	19367 lbs 8784 kg
Gear 3 used for pull test.

Photos

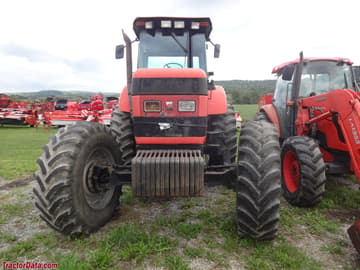

AGCO Allis 9630
