AGCO Allis 9435

The AGCO Allis 9435 is a tractor produced by Agco Allis. It is equipped with a 466 ci 7.6 L engine. The listed engine power is 135.69 hp 101.2 kW. Transmission: 32 forward and reverse. Operating weight: 13800 to 15432 pounds.

Engine Power
135.69 hp 101.2 kW
Fuel & Capacities
76 gal 287.7 L
Transmission
32 forward and reverse
Operating Weight
13800 to 15432 pounds

Overview

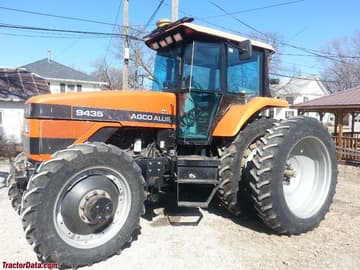

AGCO Allis 9435 tractor photo
1994 - 1997 9400 SeriesRow-Crop tractor 9400 Series Row-Crop tractor
Production
Manufacturer
AGCO Allis (a part of AGCO)
Row-Crop tractor
Original price was $70,000 in 1997
Variants
9435
32-speed semi-powershift
9635
18-speed full powershift
AGCO Allis 9435 Engine
Detroit Diesel 7.6L 6-cyl diesel
Fuel tank
76 gal 287.7 L
Engine details ...
AGCO Allis 9435 Transmission
32-speed four-speed power shift
Transmission details ...
AGCO Allis 9435 Power
PTO (claimed)
135 hp 100.7 kW
Drawbar (tested)
120.26 hp 89.7 kW
PTO (tested)
143.78 hp 107.2 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Final drives
inboard planetary
Differential lock
electro-hydraulic
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning.
Hydraulics
Type
closed center
Pressure
2900 psi 200.0 bar
Valves
3 or 4
Pump flow
27 gpm 102.2 lpm
Tractor hitch
Rear Type
III/II
Control
electronic lower-link draft sensing
Rear lift (at 24"/610mm)
10400 lbs 4717 kg
Rear Arms
extendible lower links
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540/1000
Dimensions & Tires
2WD Wheelbase
123.2 inches 312 cm
4WD Wheelbase
116.5 inches 295 cm
Weight
13800 to 15432 pounds
Front tire
11.00-16
2WD Rear tire
18.4R38
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Battery volts
12
References
9435 references literature
9400 Series published in 1991, by AGCO

Engine

Engine Detail — 466 ci / 7.6 L Diesel

Manufacturer
Detroit Diesel 40
Configuration
turbocharged diesel, 6-cylinder, liquid-cooled inline
Displacement
466 ci 7.6 L
Bore/Stroke
4.30x5.35 inches 109 x 136 mm
Air cleaner
dual dry element
Compression
15.8:1
Rated RPM
2200
Starter volts
12

Transmission

Transmission — 32 forward and reverse four-speed power shift

Type
four-speed power shift
Gears
32 forward and reverse
Four power-shift gears (A-D) in four synchronized ranges (1-4) with additional high-low range shift and synchronized shuttle.

Dimensions

AGCO Allis 9435 Tires
2WD Standard tires (ag)
Front: 11.00-16. Rear: 18.4R38
4WD Standard tires (ag)
Front: 14.9R28. Rear: 18.4R38
Dimensions
2WD Wheelbase
123.2 inches 312 cm
4WD Wheelbase
116.5 inches 295 cm
Rear axle
98 inch length 2489 mm
Rear axle
118 inch length 2997 mm
2WD Front tread
65 to 89 inches 165 to 226 cm
4WD Front tread
59.7 to 91.4 inches 151 to 232 cm
Rear tread
62 to 103 inches 157 to 261 cm
Rear tread
62 to 126 inches 157 to 320 cm (long axle)
AGCO Allis 9435 Weight
2WD Shipping
13800 lbs 6259 kg
4WD Shipping
15400 lbs 6985 kg
Operating
15432 lbs 6999 kg

Tests

OCED Tractor Test 1692
Diesel 32-speed 4WD May 17 - June 5, 1995 Link: OCED Tractor Test 1692 file
PTO performance
Max power
143.78 hp 107.2 kW
Fuel use
8.2 gal/hour 31.0 l/hour
Power at rated engine speed
135.69 hp 101.2 kW
Fuel use
8.3 gal/hour 31.4 l/hour
Power at rated PTO speed
140.86 hp 105.0 kW
Fuel use
8.3 gal/hour 31.4 l/hour
Drawbar performance
Max power
120.26 hp 89.7 kW
Fuel use
8.2 gal/hour 31.0 l/hour
Max pull
15390 lbs 6980 kg

Photos

AGCO Allis 9435

AGCO Allis 9435

Recommended Implements & Sizing Guide

Engineering recommendations for Agco Allis 9435 based on its 135.69 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)Heavy DutyHeavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing
10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼Heavy DutyWide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep
90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机Commercial / Field ScaleDeep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage
15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙Commercial / Field ScaleWide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage
5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机Heavy DutyHigh density baling; requires minimum 85 PTO HP.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Agco Allis 9435.

Estimated Continuous Field Runtime: 10.8 hrs

Approximately 10.8 hours of continuous field operation at ~75% rated power on a full tank (76 gal / 287.7 L).

Estimated 75% Load Fuel Burn~7.1 gal/hr (26.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Agco Allis 9435 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Agco Allis 9435.

Converted Equivalents:

Horsepower (HP)135.7 hp
Kilowatts (kW)101.2 kW
Metric Horsepower (PS / CV)137.6 PS
