Allis Chalmers 10-18

The Allis Chalmers 10-18 is a tractor produced by Allis Chalmers. It is equipped with a 303 ci 5.0 L engine. Transmission: 1 forward and reverse. Drive type: 3x2 2WD. Operating weight: 4650 lbs 2109 kg.

Drive & Traction

3x2 2WD

Fuel & Capacities

17.5 gal 66.2 L

Transmission

1 forward and reverse

Operating Weight

4650 lbs 2109 kg

Overview

	1914 - 1923

Production
Manufacturer	Allis Chalmers
Built in West Allis, Wisconsin, USA
Original price was $750 in 1916

Allis Chalmers 10-18 Engine
Allis Chalmers 5.0L 2-cyl gasoline
Fuel tank	17.5 gal 66.2 L
Engine details ...

Allis Chalmers 10-18 Transmission
1-speed gear
Transmission details ...

Allis Chalmers 10-18 Power
Drawbar (claimed)	10 hp 7.5 kW
Belt (claimed)	18 hp 13.4 kW

Mechanical
Drive	3x2 2WD
Steering	manual
Open operator station.

Dimensions & Tires
Weight	4650 lbs 2109 kg
Rear tire	56x12
Full dimensions and tires ...

Belt Pulley
Diameter	14.5 inches 36 cm
Width	6.5 inches 16 cm

Engine

Engine Detail — 303 ci / 5.0 L Gasoline

Manufacturer	Allis Chalmers
Fuel Type	Gasoline
Configuration	2-cylinder, liquid-cooled
Displacement	303 ci 5.0 L
Bore/Stroke	5.25x7.00 inches 133 x 178 mm
Rated RPM	720
Starter type	hand-crank

Transmission

Transmission — 1 forward and reverse gear

Type	gear
Gears	1 forward and reverse

Dimensions

Allis Chalmers 10-18 Tires
Ag rear	56x12 (steel)

Dimensions
Length	140 inches 355 cm
Width	77 inches 195 cm
Height	75 inches 190 cm
Weight	4650 lbs 2109 kg
Rear axle	2.9375 inch diameter 74 mm

Photos

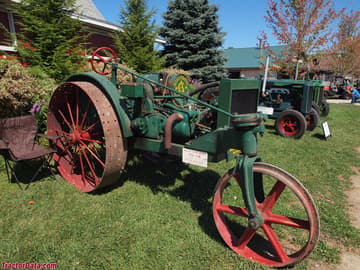

Allis Chalmers 10-18

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Allis Chalmers 10-18.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
