Allis Chalmers 6070

The Allis Chalmers 6070 is a tractor produced by Allis Chalmers. It is equipped with a 200 ci 3.3 L engine. The listed engine power is 70.78 hp 52.8 kW. Transmission: 12 forward and 3 reverse. Drive type: 4x2 2WD. Operating weight: 6100 to 7285 pounds.

Engine Power

70.78 hp 52.8 kW

Drive & Traction

4x2 2WD

Fuel & Capacities

32 gal 121.1 L

Transmission

12 forward and 3 reverse

Operating Weight

6100 to 7285 pounds

Overview

	1984 - 1985 6000 SeriesRow-Crop tractor 6000 Series Row-Crop tractor

Production
Manufacturer	Allis Chalmers
Row-Crop tractor
Built in West Allis, Wisconsin, USA
Total built	972
Original price	$24,225
On December 6, 1985, a model 6070 tractor (serial #1972) was the final tractor to be built on the Allis-Chalmers assembly line in West Allis.

Allis Chalmers 6070 Engine
Allis Chalmers 3.3L 4-cyl diesel
Engine details ...

Allis Chalmers 6070 Transmission
12-speed synchronized
Transmission details ...

Allis Chalmers 6070 Power
Drawbar (tested)	58.35 hp 43.5 kW
PTO (tested)	70.78 hp 52.8 kW
Performance test details ...

Mechanical
Drive	4x2 2WD
	4x4 MFWD 4WD (optional)
Steering	hydrostatic power
Differential hydraulic wet disc brakes
Four-post ROPS canopy. Optional cab and air-conditioning.

Capacity
Fuel	32 gal 121.1 L
Rear diff.	37 qts 35.0 L

Hydraulics
Type	open center
Valves	1
Pump flow	11.4 gpm 43.1 lpm
Total flow	19 gpm 71.9 lpm

Tractor hitch
Rear Type	II
Rear lift (at 24"/610mm)	3,500 lbs 1587 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540

Dimensions & Tires
Wheelbase	93 inches (2WD) 236 cm
	91.9 inches (4WD) 233 cm
Weight	6100 to 7285 pounds
Front tire	7.50-16
Rear tire	16.9-28
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	72
Battery volts	12

References

New 6070 published in 1984, by Allis Chalmers

Engine

Engine Detail — 200 ci / 3.3 L Diesel

Manufacturer	Allis Chalmers 433T
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled inline
Displacement	200 ci 3.3 L
Bore/Stroke	3.875x4.25 inches 98 x 108 mm
Air cleaner	paper element with pre-cleaner
Compression	15.1:1
Rated RPM	2300
Starter volts	12
Oil capacity	10 qts 9.5 L
Coolant capacity	17 qts 16.1 L

Transmission

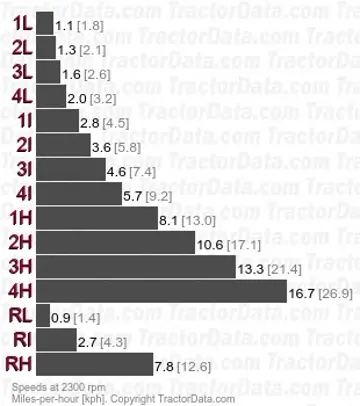

Transmission — 12 forward and 3 reverse synchronized

Type	synchronized
Gears	12 forward and 3 reverse
Oil capacity	12 qts 11.4 L
Four gears, plus reverse, in three ranges. Synchronized shifting with clutch.

Dimensions

Allis Chalmers 6070 Tires
Ag front	7.50-16 (2WD)
	11.2-24 (4WD)
Ag rear	16.9-28 (2WD)
	18.4-28 (4WD)

Dimensions
Wheelbase	93 inches (2WD) 236 cm
	91.9 inches (4WD) 233 cm
Length	146.5 inches 372 cm
Width	68.5 inches 173 cm
Clearance (front axle)	18.1 inches (4WD) 45 cm
	20.4 inches (2WD) 51 cm
Clearance (rear axle)	26.7 inches 67 cm
Front tread	56 to 79 inches 142 to 200 cm
Rear tread	60 to 86 inches 152 to 218 cm

Allis Chalmers 6070 Weight
Shipping	6,100 lbs 2766 kg
Operating	7,285 lbs 3304 kg
Ballasted	10,515 lbs 4769 kg

Allis Chalmers 6070 Height
Hood	69.4 inches 176 cm
ROPS	107.7 inches 273 cm
Cab	103.2 inches 262 cm
Exhaust	110.2 inches 279 cm

Tests

Nebraska Tractor Test 1545
Diesel 12-speed 2WD October 19 - 26, 1984 Link: Nebraska Tractor Test 1545 file
PTO performance
Power at rated engine speed	70.78 hp 52.8 kW
Fuel use	4.4 gal/hour 16.7 l/hour
Power at rated PTO speed	71.01 hp 53.0 kW
Fuel use	4.3 gal/hour 16.3 l/hour
Drawbar performance
Max power	58.35 hp 43.5 kW
Fuel use	4.4 gal/hour 16.7 l/hour
Gear 3I used for power test.
Max pull	7,997 lbs 3627 kg
Gear 1I used for pull test.

Photos

Allis-Chalmers 6070 advertising photo.

Allis-Chalmers 6070, right side.

Recommended Implements & Sizing Guide

Engineering recommendations for Allis Chalmers 6070 based on its 70.78 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Allis Chalmers 6070.

Estimated Continuous Field Runtime: 8.7 hrs

Approximately 8.7 hours of continuous field operation at ~75% rated power on a full tank (32 gal / 121.1 L).

Estimated 75% Load Fuel Burn~3.7 gal/hr (13.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
