Allis Chalmers 5015

The Allis Chalmers 5015 is a tractor produced by Allis Chalmers. It is equipped with a 61.27 ci 1.0 L engine. The rated power output is 18 hp 13.4 kW. Transmission: 9 forward and 3 reverse. Operating weight: 1278 to 1448 pounds.

Overview

	1982 - 1985 Sub-Compact Utility tractorHinomoto built
1982 - 1985
Sub-Compact Utility tractor
Hinomoto built

1982 - 1985
Sub-Compact Utility tractor
Hinomoto built

Production
Distributor	Allis Chalmers
Manufacturer	Hinomoto
Sub-Compact Utility tractor
Built in Osaka, Japan
Original price was $6,549 in 1985

Variants
9518	similar Simplicity model

Allis Chalmers 5015 Engine
Toyosha 1.0L 3-cyl diesel
Engine details ...

Allis Chalmers 5015 Transmission
9-speed gear
Transmission details ...

Allis Chalmers 5015 Power
Engine	18 hp 13.4 kW
PTO (claimed)	15 hp 11.2 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Manual steering
Two post ROPS. Optional ROPS canopy.

Capacity
Fuel	3.7 gal 14.0 L
Hydraulic system	4.5 gal 17.0 L

Hydraulics
Type	open center
Capacity	4.5 gal 17.0 L
Valves	0 or 1

Tractor hitch
Rear Type	I
Control	position control

Power Take-off (PTO)
Rear PTO	continuous
Rear PTO Type	540 (1.375)

Dimensions & Tires
Wheelbase	50.8 inches 129 cm
Weight	1278 to 1448 pounds
Front tire	4-12
2WD Rear tire	8-18
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
1983 Lawn and Garden Line published by Allis-Chalmers
1984 Lawn and Garden Line published by Allis-Chalmers
1985 Lawn and Garden Line published by Allis-Chalmers
5000 Series Attachments published in 1984, by Allis Chalmers
Compact diesels enter new dimensions published in 1983, by Allis Chalmers

Engine

	1982 - 1985 Sub-Compact Utility tractorHinomoto built
1982 - 1985
Sub-Compact Utility tractor
Hinomoto built

1982 - 1985
Sub-Compact Utility tractor
Hinomoto built

Engine Detail — 61.27 ci / 1.0 L Diesel

Manufacturer	Toyosha CS-100
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	61.27 ci 1.0 L
Bore/Stroke	2.874x3.15 inches 73 x 80 mm
Power	18 hp 13.4 kW
Air cleaner	dry
Compression	22.5:1
Rated RPM	2500
Starter	electric
Starter volts	12
Oil capacity	2.3 qts 2.2 L
Coolant capacity	3.2 qts 3.0 L

Transmission

	1982 - 1985 Sub-Compact Utility tractorHinomoto built
1982 - 1985
Sub-Compact Utility tractor
Hinomoto built

1982 - 1985
Sub-Compact Utility tractor
Hinomoto built

Transmission — 9 forward and 3 reverse gear

Type	gear
Gears	9 forward and 3 reverse
Oil capacity	18 qts 17.0 L
With 8-18 R1 rear tires.

Dimensions

	1982 - 1985 Sub-Compact Utility tractorHinomoto built
1982 - 1985
Sub-Compact Utility tractor
Hinomoto built

1982 - 1985
Sub-Compact Utility tractor
Hinomoto built

Allis Chalmers 5015 Tires
2WD Standard tires (ag)	Front: 4-12. Rear: 8-18
4WD Standard tires (ag)	Front: 5-14. Rear: 8-18
Lawn/turf front	20.5x8-10
Lawn/turf rear	29x12-15

Dimensions
Wheelbase	50.8 inches 129 cm
Length	82.7 inches 210 cm
Width	40.9 inches 103 cm
Height (steering wheel)	46.9 inches 119 cm
Height (hood)	40.9 inches 103 cm
Clearance (front axle)	13.7 inches 34 cm
Clearance (rear axle)	14.2 inches 36 cm

Allis Chalmers 5015 Weight
	1387 lbs 629 kg
2WD Shipping	1278 lbs 579 kg
4WD Shipping	1448 lbs 656 kg

Attachments

	1982 - 1985 Sub-Compact Utility tractorHinomoto built
1982 - 1985
Sub-Compact Utility tractor
Hinomoto built

1982 - 1985
Sub-Compact Utility tractor
Hinomoto built

Attachment overview
48" mid-mount mower deck
54" mid-mount mower deck
60" mid-mount mower deck
Snowblower
Blade
Front-end loader

Photos

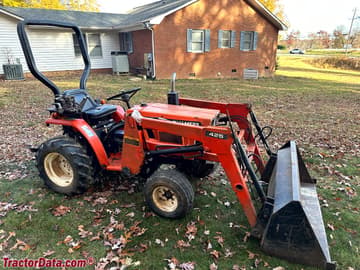

Allis Chalmers 5015

Allis Chalmers 5015

Allis Chalmers 5015
