allis chalmers 190

Allis Chalmers 190 tractor photo
1964 - 1972 Row-Crop tractor
1964 - 1972
Row-Crop tractor
1964 - 1972
Row-Crop tractor
1964 - 1972
Row-Crop tractor
Tractor Tests
NTTL 886: diesel 8-speed 2WD
NTTL 928: gasoline 8-speed 2WD
Nebraska Tractor Test 886

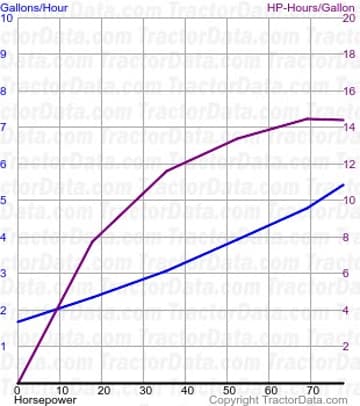

190 fuel use from test 886
190 fuel use from test 886
190 fuel use from test 886
190 fuel use from test 886
Nebraska Tractor Test 886
Diesel 8-speed 2WD April 10 - 16, 1965 Link: Nebraska Tractor Test 886 file
PTO performance
Power at rated engine speed
77.20 hp 57.6 kW
Fuel use
5.4 gal/hour 20.4 l/hour
Power at rated PTO speed
72.33 hp 53.9 kW
Fuel use
5.0 gal/hour 18.9 l/hour
Drawbar performance
Max power
65.33 hp 48.7 kW
Fuel use
5.3 gal/hour 20.1 l/hour
Gear 4 used for power test.
Max pull
8663 lbs 3929 kg
Gear 2 used for pull test.
Nebraska Tractor Test 928

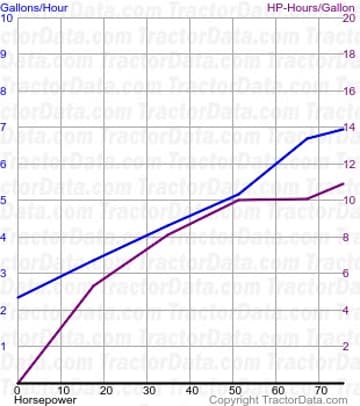

190 fuel use from test 928
190 fuel use from test 928
190 fuel use from test 928
190 fuel use from test 928
Nebraska Tractor Test 928
Gasoline 8-speed 2WD November 9 - 16, 1965 Link: Nebraska Tractor Test 928 file
PTO performance
Power at rated engine speed
75.37 hp 56.2 kW
Fuel use
6.9 gal/hour 26.1 l/hour
Power at rated PTO speed
70.18 hp 52.3 kW
Fuel use
6.2 gal/hour 23.5 l/hour
Drawbar performance
Max power
63.10 hp 47.1 kW
Fuel use
7.2 gal/hour 27.3 l/hour
Gear 4 used for power test.
Max pull
8753 lbs 3970 kg
Gear 2 used for pull test.
