allis chalmers 190
 | 1964 - 1972
Row-Crop tractor | 1964 - 1972 | Row-Crop tractor |
|---|---|---|---|
1964 - 1972 | |||
Row-Crop tractor | |||
1964 - 1972 | |
|---|---|
Row-Crop tractor |
Transmission | |
|---|---|
Transmission | Power Director |
Type | two-speed power shift |
Gears | 8 forward and 2 reverse |
Clutch | dry disc |
Oil capacity | 32 qts
30.3 L |
| 38 qts (S/N 23000 and up)
36.0 L |
The transmission is controlled by means of the gear shift lever and the Power Director lever. The tractor must be stopped, and clutch used, to select one of four forward gears, or reverse. The Power Director lever has high, low, and neutral positions. The Power Director can be shifted on the move without clutching. Placing the Power Director into neutral causes the tractor to stop while keeping the PTO engaged. | |

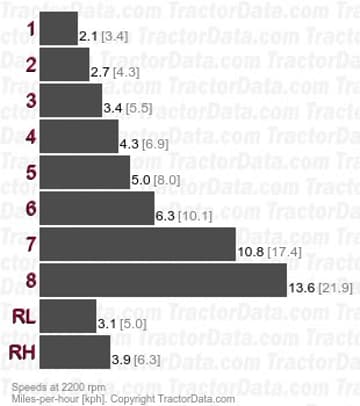

Speeds | |
|---|---|
With 15.5-38 rear tires. | |
 |

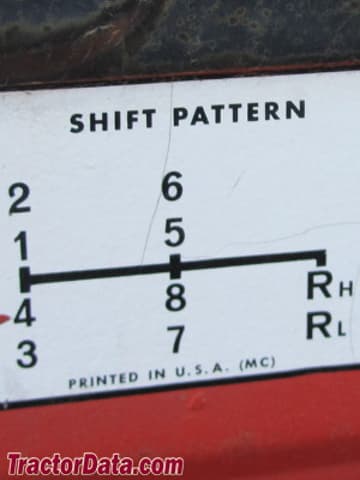

Shift Pattern | |
|---|---|
 |

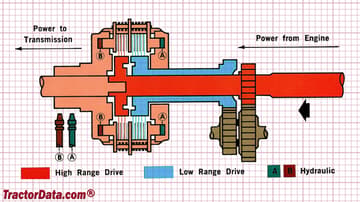

Allis Chalmers 190 Transmission | |
|---|---|
 |
