Allis Chalmers 210

The Allis Chalmers 210 is a tractor produced by Allis Chalmers. It is equipped with a 426 ci 7.0 L engine. The listed engine power is 122.4 hp 91.3 kW. Transmission: 8 forward and 2 reverse. Operating weight: 12425 lbs 5635 kg.

Engine Power

122.4 hp 91.3 kW

Fuel & Capacities

51 gal 193.0 L

Transmission

8 forward and 2 reverse

Operating Weight

12425 lbs 5635 kg

Overview

	1970 - 1973 Row-Crop tractor

Production
Manufacturer	Allis Chalmers
Row-Crop tractor
Built in West Allis, Wisconsin, USA
Total built	1,471
Original price	$11,642

Allis Chalmers 210 Engine
Allis Chalmers 7.0L 6-cyl diesel
Fuel tank	51 gal 193.0 L
Engine details ...

Allis Chalmers 210 Transmission
8-speed sliding gear
Transmission details ...

Allis Chalmers 210 Power
PTO (claimed)	122 hp 91.0 kW
Drawbar (tested)	104.95 hp 78.3 kW
PTO (tested)	122.4 hp 91.3 kW
Performance test details ...

Mechanical
Two-wheel drive
Power steering
Disc brakes
Open operator station. QCS cab optional starting in 1972.

Hydraulics
Type	open center
Valves	2
Pump flow	21.5 gpm 81.4 lpm

Tractor hitch
Rear Type	II OptOptional

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic disc
Rear PTO Type	1000

Dimensions & Tires
Wheelbase	100 inches 254 cm
Weight	12425 lbs 5635 kg
Front tire	11.00-16
Rear tire	18.4-34
Full dimensions and tires ...

Electrical
Charging system	alternator
Batteries	2
Battery volts	12

References

Two-Ten Landhandler Tractor published in 1970, by Allis Chalmers
Two-Ten Landhandler Tractor published in 1972, by Allis Chalmers

Engine

Engine Detail — 426 ci / 7.0 L Diesel

Manufacturer	Allis Chalmers 3500
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled inline
Displacement	426 ci 7.0 L
Bore/Stroke	4.25x5.00 inches 108 x 127 mm
Air cleaner	dry
Compression	16:1
Rated RPM	2200
Idle RPM	650-2400
Starter volts	12
Coolant capacity	21 qts 19.9 L

Allis Chalmers 210 Engine

Transmission

Transmission — 8 forward and 2 reverse sliding gear

Type	sliding gear
Gears	8 forward and 2 reverse
Clutch	355.6mm dry disc
Four gears (1-4) plus reverse (R) in two ranges (low/high).

Dimensions

Allis Chalmers 210 Tires
Ag front	11.00-16
Ag rear	18.4-34
Ag front	10.00-16
Ag rear	23.1-30
	24.5-32
	15.5-38
	18.4-38
	20.8-38

Dimensions
Wheelbase	100 inches 254 cm
Length	164 inches 416 cm
Width	96 inches*Minimum width. 243 cm
Operating weight	12425 lbs 5635 kg
Ballasted weight	18045 lbs 8185 kg
Clearance (front axle)	21.6 inches 54 cm
Clearance (rear axle)	26 inches 66 cm
Bar rear axle	3.625 inch diameter 92 mm

Allis Chalmers 210 Height
Steering wheel	84 inches 213 cm
Hood	70 inches 177 cm
Exhaust	107 inches 271 cm

Tests

Nebraska Tractor Test 1065
Diesel 8-speed 2WD May 3 - 13, 1971 Link: Nebraska Tractor Test 1065 file
PTO performance
Power at rated engine speed	122.4 hp 91.3 kW
Fuel use	8.0 gal/hour 30.3 l/hour
Drawbar performance
Max power	104.95 hp 78.3 kW
Fuel use	8.0 gal/hour 30.3 l/hour
Gear 4L used for power test.
Max pull	14023 lbs 6360 kg
Gear 2L used for pull test.

Photos

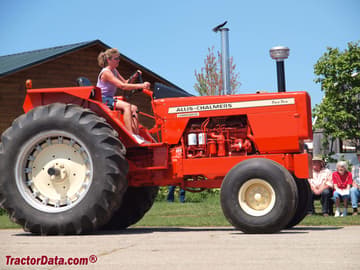

Allis-Chalmers Two-Ten row-crop tractor, right side.

Allis-Chalmers Two-Ten row-crop tractor, left side.

Recommended Implements & Sizing Guide

Engineering recommendations for Allis Chalmers 210 based on its 122.4 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Allis Chalmers 210.

Estimated Continuous Field Runtime: 8 hrs

Approximately 8 hours of continuous field operation at ~75% rated power on a full tank (51 gal / 193.1 L).

Estimated 75% Load Fuel Burn~6.4 gal/hr (24.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
