Allis Chalmers 200

The Allis Chalmers 200 is a tractor produced by Allis Chalmers. It is equipped with a 301 ci 4.9 L engine. The listed engine power is 93.64 hp 69.8 kW. Transmission: 8 forward and 2 reverse. Operating weight: 7,324 lbs 3322 kg.

Engine Power

93.64 hp 69.8 kW

Fuel & Capacities

48 gal 181.7 L

Transmission

8 forward and 2 reverse

Operating Weight

7,324 lbs 3322 kg

Overview

	1972 - 1975 Row-Crop tractor

Production
Manufacturer	Allis Chalmers
Row-Crop tractor
Total built	10,126
Original price	$14,125

Allis Chalmers 200 Engine
Allis Chalmers 4.9L 6-cyl diesel
Engine details ...

Allis Chalmers 200 Transmission
8-speed constant mesh-helical gears
Transmission details ...

Allis Chalmers 200 Power
Drawbar (tested)	79.12 hp 59.0 kW
PTO (tested)	93.64 hp 69.8 kW
Performance test details ...

Mechanical
Two-wheel drive
Power steering
Ball actuated disc brakes
Open operator station. QCS cab optional starting in 1972.

Capacity
Fuel	48 gal 181.7 L
Hydraulic system	7 gal 26.5 L

Hydraulics
Type	open center
Capacity	7 gal 26.5 L
Pressure	2300 psi 158.6 bar
Valves	2
Pump flow	17.2 gpm 65.1 lpm
Total flow	21.02 gpm 79.6 lpm

Tractor hitch
Rear Type	II
Rear lift	4,600 lbs 2086 kg

Power Take-off (PTO)
Rear PTO	transmission
	independent OptOptional
Rear PTO Type	540
	540/1000 OptOptional

Dimensions & Tires
Wheelbase	105.75 inches 268 cm
Weight	7,324 lbs 3322 kg
Front tire	7.50-16
Rear tire	16.9-34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	32
	55 *Optional with cab.
Batteries	1
	2
Battery volts	12

References

Loaders - picking up where the others leave off published in 1979, by Allis Chalmers
200 Tractor published in 1965, by Allis Chalmers

Engine

Engine Detail — 301 ci / 4.9 L Diesel

Manufacturer	Allis Chalmers
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	301 ci 4.9 L
Bore/Stroke	3.875x4.25 inches 98 x 108 mm
Compression	16.25:1
Rated RPM	2200
Firing order	1-5-3-6-2-4
Starter volts	12
Oil capacity	15 qts 14.2 L
Coolant capacity	18 qts 17.0 L

Transmission

Transmission — 8 forward and 2 reverse constant mesh-helical gears

Type	constant mesh-helical gears
Gears	8 forward and 2 reverse
Oil capacity	38 qts 36.0 L
With 18.4-38 rear tires.

Dimensions

Allis Chalmers 200 Tires
Ag front	7.50-16
Ag rear	16.9-34
Ag front	10.00-16
	6.50-20
	7.50-20
	9.5L-15
	11L-15
Ag rear	23.1-30
	18.4-34
	13.6-38
	15.5-38
	16.9-38
	18.4-38
	12.4-42

Dimensions
Wheelbase	105.75 inches 268 cm
Length	175.5 inches 445 cm
Width	87.625 inches 222 cm
Weight	7,324 lbs 3322 kg
Clearance (front axle)	25.3 inches 64 cm
Clearance (rear axle)	27.1 inches 68 cm
Rear axle	3.25 inch diameter 82 mm

Allis Chalmers 200 Height
Steering wheel	89.5 inches 227 cm
Hood	65.8 inches 167 cm
Exhaust	117.5 inches 298 cm

Tests

Nebraska Tractor Test 887
Diesel 8-speed 2WD April 10 - 16, 1965 Link: Nebraska Tractor Test 887 file
PTO performance
Power at rated engine speed	93.64 hp 69.8 kW
Fuel use	5.7 gal/hour 21.6 l/hour
Power at rated PTO speed	89.71 hp 66.9 kW
Fuel use	5.3 gal/hour 20.1 l/hour
Drawbar performance
Max power	79.12 hp 59.0 kW
Fuel use	5.7 gal/hour 21.6 l/hour
Gear 4 used for power test.
Max pull	8,917 lbs 4044 kg
Gear 3 used for pull test.

Photos

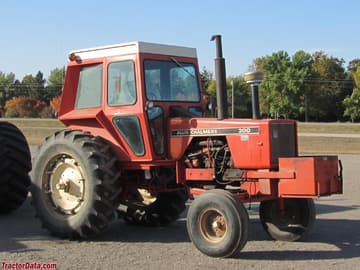

Allis-Chalmers 200 with cab.

Allis-Chalmers 200 hitch and PTO.

Allis-Chalmers 200 operator station.

Open-station Allis-Chalmers 200.

Recommended Implements & Sizing Guide

Engineering recommendations for Allis Chalmers 200 based on its 93.64 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Allis Chalmers 200.

Estimated Continuous Field Runtime: 9.9 hrs

Approximately 9.9 hours of continuous field operation at ~75% rated power on a full tank (48 gal / 181.7 L).

Estimated 75% Load Fuel Burn~4.9 gal/hr (18.4 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
