Allis Chalmers 5030

The Allis Chalmers 5030 is a tractor produced by Allis Chalmers. It is equipped with a 90.1 ci 1.5 L engine. The rated power output is 31 hp 23.1 kW. Transmission: 12 forward and 3 reverse. Operating weight: 2100 to 2530 pounds.

Overview

	1979 - 1985 Compact Utility tractorHinomoto built
1979 - 1985
Compact Utility tractor
Hinomoto built

1979 - 1985
Compact Utility tractor
Hinomoto built

Production
Distributor	Allis Chalmers
Manufacturer	Hinomoto
Compact Utility tractor
Built in Osaka, Japan
Original price was $9,230 in 1985

Variants
E280	similar Hinomoto model
9528	similar Simplicity model

Allis Chalmers 5030 Engine
Toyosha 1.5L 2-cyl diesel
Engine details ...

Allis Chalmers 5030 Power
Engine	31 hp 23.1 kW
Drawbar (claimed)	22.4 hp 16.7 kW
PTO (claimed)	26 hp 19.4 kW
Plows	2 *12-inch
Drawbar (tested)	22.47 hp 16.8 kW
PTO (tested)	26.42 hp 19.7 kW
Performance test details ...

Mechanical
Two-wheel drive
Manual steering
Differential mechanical drum and shoe brakes
Two-post ROPS, optional ROPS canopy

Capacity
Fuel	7 gal 26.5 L
Hydraulic system	6.7 gal 25.4 L

Hydraulics
Type	open center
Capacity	6.7 gal 25.4 L
Valves	0 or 1
Pump flow	5.44 gpm 20.6 lpm

Tractor hitch
Rear Type	I

Power Take-off (PTO)
Rear PTO	transmission
	live OptOptional
Rear PTO Type	540
Engine RPM	540@2320

Dimensions & Tires
Wheelbase	61.8 inches 156 cm
Weight	2100 to 2530 pounds
Front tire	5.00-15
Rear tire	12.4-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	12
Battery volts	12
Battery AH	70

References
1983 Lawn and Garden Line published by Allis-Chalmers
1984 Lawn and Garden Line published by Allis-Chalmers
1985 Lawn and Garden Line published by Allis-Chalmers
5000 Series Attachments published in 1984, by Allis Chalmers
5020/5030 The Diesel Force published in 1979, by Allis Chalmers
Compact diesels enter new dimensions published in 1983, by Allis Chalmers
Operator's Manual 5020-5030 9523-9528 (2097132) published in 1978
5030 - The powerful answer to multi-job profitability. published in 1978, by Allis Chalmers

Engine

	1979 - 1985 Compact Utility tractorHinomoto built
1979 - 1985
Compact Utility tractor
Hinomoto built

1979 - 1985
Compact Utility tractor
Hinomoto built

Engine Detail — 90.1 ci / 1.5 L Diesel

Manufacturer	Toyosha S148
Fuel Type	Diesel
Configuration	2-cylinder, liquid-cooled
Displacement	90.1 ci 1.5 L
Bore/Stroke	3.82x3.94 inches 97 x 100 mm
Power	31 hp 23.1 kW
Air cleaner	dry
Compression	23:1
Rated RPM	2500
Idle RPM	750-2750
Firing order	1-2
Starter	electric
Starter volts	12
Coolant capacity	5.3 qts 5.0 L
Oil capacity	5 qts 4.7 L
Oil change	100 h

Transmission

	1979 - 1985 Compact Utility tractorHinomoto built
1979 - 1985
Compact Utility tractor
Hinomoto built

1979 - 1985
Compact Utility tractor
Hinomoto built

Transmission options
8-speed unsynchronized gear
12-speed unsynchronized gear

Transmission — 8 forward and 2 reverse unsynchronized gear

Type	unsynchronized gear
Gears	8 forward and 2 reverse
Clutch	215mm dry disc
Oil capacity	26.8 qts 25.4 L

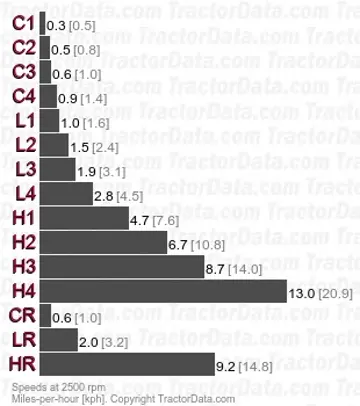

Four gears (1-4) in two ranges (low/high). Tractor must be stopped, and clutch used, to shift gears or range.
With 12.4x24 rear tires.

Transmission — 12 forward and 3 reverse unsynchronized gear

Type	unsynchronized gear
Gears	12 forward and 3 reverse
Clutch	215mm dry disc
Oil capacity	22 qts 20.8 L
Four gears, plus reverse, with high, low, and creeper ranges.
With 12.4x24 rear tires.

Dimensions

	1979 - 1985 Compact Utility tractorHinomoto built
1979 - 1985
Compact Utility tractor
Hinomoto built

1979 - 1985
Compact Utility tractor
Hinomoto built

Allis Chalmers 5030 Tires
Ag front	5.00-15
Ag rear	12.4-24
Lawn/turf front	20x8.00-10
Lawn/turf rear	13.6-16
	20x8.00-10

Dimensions
Wheelbase	61.8 inches 156 cm
Length	100.4 inches 255 cm
Width	53.5 inches 135 cm
Clearance (front axle)	14.5 inches 36 cm
Clearance (rear axle)	15.6 inches 39 cm
Front tread	40.9 to 51.1 inches 103 to 129 cm
Rear tread	40.9 to 62.5 inches 103 to 158 cm

Allis Chalmers 5030 Weight
Shipping	2100 lbs 952 kg
Operating	2530 lbs 1147 kg
Ballasted	3876 lbs 1758 kg

Allis Chalmers 5030 Height
Steering wheel	53.7 inches 136 cm
Hood	45.1 inches 114 cm
ROPS	86 inches 218 cm
Exhaust	81.9 inches 208 cm

Tests

	1979 - 1985 Compact Utility tractorHinomoto built
1979 - 1985
Compact Utility tractor
Hinomoto built

1979 - 1985
Compact Utility tractor
Hinomoto built

Nebraska Tractor Test 1271
Diesel 8-speed 2WD April 6 - 21, 1978 Link: Nebraska Tractor Test 1271 file
PTO performance
Power at rated engine speed	26.42 hp 19.7 kW
Fuel use	2.0 gal/hour 7.6 l/hour
Power at rated PTO speed	25.61 hp 19.1 kW
Fuel use	1.9 gal/hour 7.2 l/hour
Drawbar performance
Max power	22.47 hp 16.8 kW
Fuel use	1.9 gal/hour 7.2 l/hour
Gear 1H used for power test.
Max pull	3,389 lbs 1537 kg
Gear 3L used for pull test.

Attachments

	1979 - 1985 Compact Utility tractorHinomoto built
1979 - 1985
Compact Utility tractor
Hinomoto built

1979 - 1985
Compact Utility tractor
Hinomoto built

Attachment overview
Matching equipment listed for the Allis 5030 included 60-inch rear mount mowers and a 50-inch tiller. A 72-inch rear blade or 66-inch box scraper were specified.

Photos

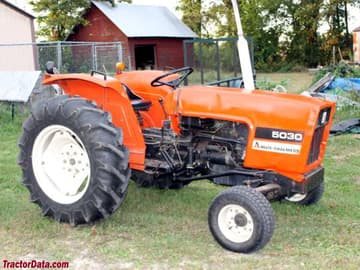

Allis Chalmers 5030
