Allis Chalmers 7010

The Allis Chalmers 7010 is a tractor produced by Allis Chalmers. It is equipped with a 301 ci 4.9 L engine. The rated power output is 106.72 hp 79.6 kW. Transmission: Allis-Chalmers Power Shift. Operating weight: 11,260 lbs 5107 kg.

Overview

	1980 - 1981 7000 SeriesRow-Crop tractor
1980 - 1981
7000 Series
Row-Crop tractor

Production
Manufacturer	Allis Chalmers
Row-Crop tractor
Built in West Allis, Wisconsin, USA
Total built	2,436
Original price	$35,311

Allis Chalmers 7010 Engine
Allis Chalmers 4.9L 6-cyl diesel
Engine details ...

Allis Chalmers 7010 Power
Drawbar (tested)	89.10 hp 66.4 kW
PTO (tested)	106.72 hp 79.6 kW
Performance test details ...

Mechanical
Two-wheel drive
Final drives	inboard planetary
Differential lock	power
Steering	hydrostatic power
Differential hydraulic wet disc brakes
Accousta cab standard with heat. Optional air-conditioning, radio, and 8-track player. Four-post ROPS canopy optional.

Capacity
Fuel	54 gal 204.4 L
	13 gal (optional tank) 49.2 L
Rear diff.	66.8 qts 63.2 L

Hydraulics
Type	closed center
Valves	2
Pump flow	22 gpm 83.3 lpm
	13.5 gpm (transmission) 51.1 lpm
Total flow	45 gpm 170.3 lpm
Steering flow	9.5 gpm 36.0 lpm

Tractor hitch
Rear Type	III/II
Rear lift (at 24"/610mm)	6,680 lbs 3030 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 1000

Dimensions & Tires
Wheelbase	106 inches 269 cm
Weight	11,260 lbs 5107 kg
Front tire	10.00-16
Rear tire	18.4-38
Full dimensions and tires ...

Electrical
Charging system	alternator
Battery volts	12

References
Loaders - picking up where the others leave off published in 1979, by Allis Chalmers
7080/7060/7045/7020/7010 - The Power Squadron published in 1981, by Allis Chalmers
New 7010 Feature Attraction published in 1980, by Allis Chalmers

Engine

Engine Detail — 301 ci / 4.9 L Diesel

Manufacturer	Allis Chalmers 649T
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled inline
Displacement	301 ci 4.9 L
Bore/Stroke	3.875x4.25 inches 98 x 108 mm
Air cleaner	dual paper elements
Compression	16.25:1
Rated RPM	2300
Firing order	1-5-3-6-2-4
Starter volts	12
Oil capacity	20 qts 18.9 L
Coolant capacity	26 qts 24.6 L

Transmission

Transmission options
16-speed partial power shift
20-speed partial power shift
12-speed partial power shift

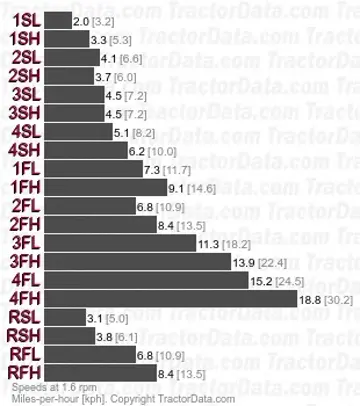

Transmission — Allis-Chalmers Power Director

Transmission	Allis-Chalmers Power Director
Type	partial power shift
Gears	16 forward and 4 reverse
Oil capacity	29.6 qts 28.0 L
Four gears plus reverse with Slow and Fast ranges. Two-speed power shift (low/high) controlled by foot buttons.
With 18.4x38 rear tires.

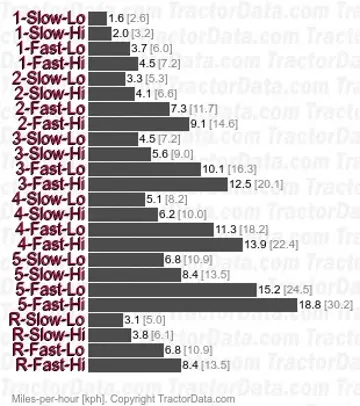

Transmission — Allis-Chalmers Power Director

Transmission	Allis-Chalmers Power Director
Type	partial power shift
Gears	20 forward and 4 reverse
Oil capacity	29.6 qts 28.0 L
Five gears in two ranges (slow/fast) with two-range power shift. Power shift controlled by foot buttons.
With 18.4x38 rear tires.

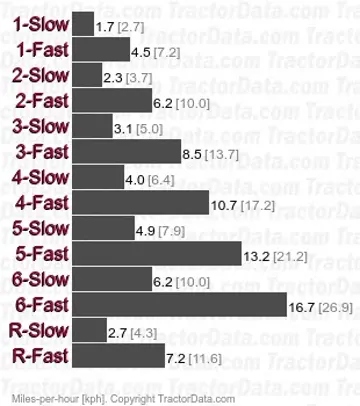

Transmission — Allis-Chalmers Power Shift

Transmission	Allis-Chalmers Power Shift
Type	partial power shift
Gears	12 forward and 2 reverse
Oil capacity	29.6 qts 28.0 L
Six gears in two ranges. Power shift between gears in range.
With 15.5x38 rear tires.

Dimensions

Allis Chalmers 7010 Tires
Ag front	10.00-16
Ag rear	18.4-38
Ag front	11.00-16
	14L-16
	18.4x16
Ag rear	24.5-32
	30.5-32
	20.8-34
	20.8-38
	23.1-30
	18.4-42

Dimensions
Wheelbase	106 inches 269 cm
Width	92.6 inches 235 cm
	118.7 inches (long axle) 301 cm
Operating weight	11,260 lbs 5107 kg
Ballasted weight	12,790 lbs 5801 kg
Clearance (front axle)	21 inches 53 cm
Clearance (rear axle)	28 inches 71 cm
Rear axle	3.625 inch diameter 92 mm
Rear axle	3.75 inch diameter 95 mm
Front tread	60 to 88 inches 152 to 223 cm
Rear tread	64 to 89 inches 162 to 226 cm

Allis Chalmers 7010 Height
Steering wheel	87 inches 220 cm
Hood	68 inches 172 cm
Exhaust	116 inches 294 cm

Tests

Tractor Tests
NTTL 1345: diesel 20-speed 2WD
NTTL 1346: diesel 12-speed 2WD

Nebraska Tractor Test 1345
Diesel 20-speed 2WD May 1 - 13, 1980 Link: Nebraska Tractor Test 1345 file
PTO performance
Power at rated engine speed	106.53 hp 79.4 kW
Fuel use	7.0 gal/hour 26.5 l/hour
Power at rated PTO speed	107.52 hp 80.2 kW
Fuel use	6.9 gal/hour 26.1 l/hour
Drawbar performance
Max power	87.83 hp 65.5 kW
Fuel use	7.0 gal/hour 26.5 l/hour
Gear 5SL used for power test.
Max pull	9,426 lbs 4275 kg
Gear 1FL used for pull test.

Nebraska Tractor Test 1346
Diesel 12-speed 2WD May 2 - 14, 1980 Link: Nebraska Tractor Test 1346 file
PTO performance
Power at rated engine speed	106.72 hp 79.6 kW
Fuel use	7.0 gal/hour 26.5 l/hour
Power at rated PTO speed	106.33 hp 79.3 kW
Fuel use	6.9 gal/hour 26.1 l/hour
Drawbar performance
Max power	89.10 hp 66.4 kW
Fuel use	7.2 gal/hour 27.3 l/hour
Gear 2F used for power test.
Max pull	9,516 lbs 4316 kg
Gear 3S used for pull test.

Photos

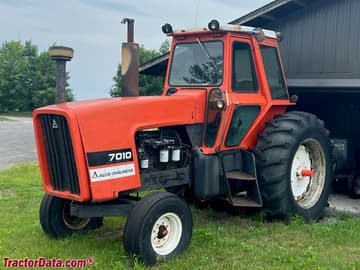

Allis-Chalmers 7010 row-crop tractor.
