John Deere 3130

The John Deere 3130 is a tractor produced by John Deere. It is equipped with a 329 ci 5.4 L engine. The listed engine power is Diesel (net): 87.2 hp / 65.0 kW; Diesel (gross): 96.5 hp / 72.0 kW. Transmission: Hi-Lo. Operating weight: 8200 lbs 3719 kg.

Overview

	1973 - 1979 Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany
The John Deere 3130 saw a redesign in 1975 at tractor serial number 182150. The front, hood, and decals were changed to a more rounded appearance. The 3130 was sold as the 2840 in the United States.

Variants
3130LS	12-speed

John Deere 3130 Engine
John Deere 5.4L 6-cyl diesel
Engine details ...

John Deere 3130 Power
Engine (gross)	96.5 hp 72.0 kW
Engine (net)	87.2 hp 65.0 kW
PTO (claimed)	75.1 hp 56.0 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Differential lock	mechanical rear
Power steering
Wet disc brakes
Open operator station. Cab optional.

Capacity
Fuel	28 gal 106.0 L
Hydraulic system	15 gal 56.8 L

Hydraulics
Type	closed center
Capacity	15 gal 56.8 L
Pump flow	23 gpm 87.1 lpm

Tractor hitch
Rear Type	II
Control	position control and lower-link draft sensing
Rear lift	7452 lbs 3380 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@2200
	1000@2200

Dimensions & Tires
Wheelbase	96.9 inches 246 cm
Weight	8200 lbs 3719 kg
Front tire	7.50-18
2WD Rear tire	18.4-34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	28
	55
Charging volts	14
Batteries	2
Battery volts	12
Battery AH	88

References
Tractors 1130, 2030, 2130, 3130 published in 1976, by John Deere
Tractors 40 to 80 hp published in 1978, by John Deere
Product Information Manual published in 1975, by John Deere
Product Information Manual published in 1977, by John Deere

Engine

Engine Detail — 329 ci / 5.4 L Diesel

Manufacturer	John Deere
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled, The 3130 engine could be ordered with an optional turbocharger (TA 3401) as an altitude compensator.
Displacement	329 ci 5.4 L
Bore/Stroke	4.02x4.33 inches 102 x 110 mm
Power (net)	87.2 hp 65.0 kW
Power (gross)	96.5 hp 72.0 kW
Fuel system	direct injection
Air cleaner	dry
Compression	16.2:1
Rated RPM	2500
Idle RPM	650-2660
Operating RPM	1300-2500
Torque	218.3 lb-ft 296.0 Nm
Torque RPM	1300
Starter	electric
Starter volts	12
Oil capacity	10.9 qts 10.3 L
Coolant capacity	20 qts 18.9 L

Transmission

Transmission options
12-speed two-speed power shift
6-speed sliding gear

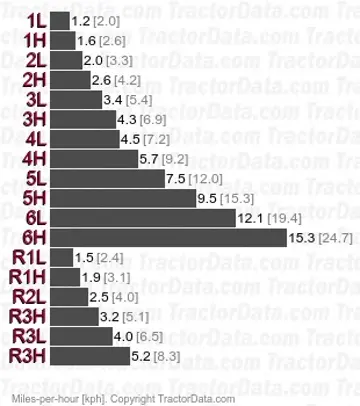

Transmission — Hi-Lo

Transmission	Hi-Lo
Type	two-speed power shift
Gears	12 forward and 6 reverse
Three gears in two ranges, plus reverse range. Two-speed hydraulic high-low shift.
With 16.9/14-38 rear tires.

Transmission — 6 forward and 3 reverse sliding gear

Type	sliding gear
Gears	6 forward and 3 reverse
Three gears in two ranges, plus reverse range.

Dimensions

John Deere 3130 Tires
2WD Standard tires (ag)	Front: 7.50-18. Rear: 18.4-34
2WD Standard tires (ag)	Front: 7.50-20. Rear: 16.9-38
4WD Standard tires (ag)	Front: 12.4-24. Rear: 16.9-38

Dimensions
Wheelbase	96.9 inches 246 cm
Length	157.5 inches 400 cm
Width	81.8 inches*Minimum width. 207 cm
Height	103.5 inches 262 cm
Weight	8200 lbs 3719 kg
Flange rear axle
Rack-and-pinion rear axle
Front tread	56.9 to 77 inches 144 to 195 cm
Rear tread	63 to 78.7 inches 160 to 199 cm (flange)
Rear tread	63 to 99 inches 160 to 251 cm (rack-and-pinion)
