Ford 7600
The Ford 7600 is a tractor produced by Ford. It is equipped with a 267.9 ci 4.4 L engine. The rated power output is 91 hp 67.9 kW. Transmission: Dual-Power. Operating weight: 5580 to 7440 pounds.
Overview
 | 1975 - 1981
Utility tractor |
|---|---|
1975 - 1981 | |
Utility tractor | |
1975 - 1981 | |
|---|---|
Utility tractor |
Production | |
|---|---|
Manufacturer | Ford |
Utility tractor | |
Original price was $13,300 in 1981 | |
Variants | |
|---|---|
7600 | utility chassis |
7700 | row-crop chassis |
Ford 7600 Engines | |
|---|---|
Ford 4.2L 4-cyl diesel | |
Ford 4.4L 4-cyl diesel | |
Fuel tank | 20 gal (main)
75.7 L |
16 gal (auxiliary)
60.6 L | |
Engine details ...  | |
Ford 7600 Transmissions | |
|---|---|
16-speed two-speed power shift | |
8-speed gear | |
Transmission details ...  |
Ford 7600 Power | |
|---|---|
Engine (gross) | 96.7 hp
72.1 kW |
Engine (net) | 91 hp
67.9 kW |
PTO (claimed) | 84 hp
62.6 kW |
Drawbar (tested) | 65.33 hp
48.7 kW |
PTO (tested) | 84.79 hp
63.2 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Final drives | outboard planetary |
Differential lock | mechanical rear |
Power steering | |
Differential wet disc brakes | |
Open operator station. Two-post fixed ROPS available. Cab optional with available heat and air-conditioning. | |
Photos | |
|---|---|
 | |
Ford 7600 photos...  |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2100 psi
144.8 bar |
Pump flow | 9.7 gpm
36.7 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift (at 24"/610mm) | 4435 lbs
2011 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | hydraulic |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@1900 |
1000@1900 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 88 inches
223 cm |
Weight | 5580 to 7440 pounds |
Front tire | 7.50-16 |
Rear tire | 16.9-30 |
Full dimensions and tires ...  | |
Ford 7600 attachments | |
|---|---|
front-end loader | |
Attachment details ...  |
7600 Serial Numbers | |
|---|---|
1975 | C450700 |
1976 | C490300 |
1977 | C527300 |
1978 | C560500 |
1979 | C595800 |
1980 | C635700 |
1981 | C660700 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 51 |
Battery volts | 12 |
Battery AH | 128 |
References | |
|---|---|
 | |
7600 published in 1975, by Ford | |
7600 published in 1976, by Ford | |
7600 published in 1977, by Ford | |
Blue Power Specials published in 1980, by Ford | |
Ford now offer tractor from 37 to 295 horsepower published in 1979* | |
*Publication contains known errors. |
Engine
| 1975 - 1981
Utility tractor |
|---|---|
1975 - 1981 | |
Utility tractor | |
1975 - 1981 | |
|---|---|
Utility tractor |
Engine options | |
|---|---|
Ford 4.2L 4-cyl diesel | |
Ford 4.4L 4-cyl diesel |
Engine Detail | |
|---|---|
Ford | |
turbocharged diesel | |
4-cylinder | |
liquid-cooled | |
Displacement | 256 ci
4.2 L |
Bore/Stroke | 4.4094x4.2126 inches
112 x 107 mm |
Power (net) | 91 hp
67.9 kW |
Power (gross) | 96.7 hp
72.1 kW |
Air cleaner | paper element with precleaner |
Compression | 15.6:1 |
Rated RPM | 2100 |
Torque | 272 lb-ft
368.8 Nm |
Torque RPM | 1600 |
Starter volts | 12 |
Oil capacity | 9 qts
8.5 L |
Coolant capacity | 14 qts
13.2 L |
Engine Detail | |
|---|---|
Ford | |
turbocharged diesel | |
4-cylinder | |
liquid-cooled inline | |
The larger Blue Power Special engine was available in 1981 only. Advertised power performance was the same as the 4.2L. | |
Displacement | 267.9 ci
4.4 L |
Bore/Stroke | 4.4094x4.4094 inches
112 x 112 mm |
Rated RPM | 2100 |
Transmission
| 1975 - 1981
Utility tractor |
|---|---|
1975 - 1981 | |
Utility tractor | |
1975 - 1981 | |
|---|---|
Utility tractor |
Transmission options | |
|---|---|
16-speed two-speed power shift | |
8-speed gear |

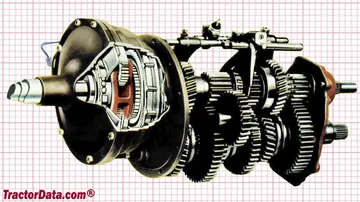

Transmission | |
|---|---|
Transmission | Dual-Power |
Type | two-speed power shift |
Gears | 16 forward and 4 reverse |
Clutch | dry disc |

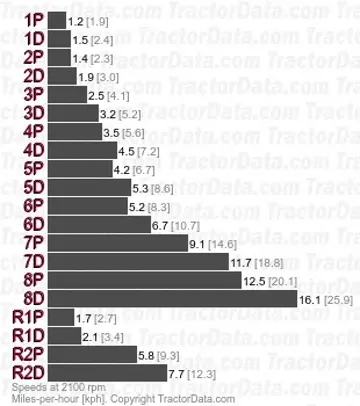

Speeds | |
|---|---|
With 16.9x30 rear tires. | |
 |
Ford 7600 Transmission | |
|---|---|
 |
Transmission | |
|---|---|
Type | gear |
Gears | 8 forward and 2 reverse |
Clutch | 330mm dry disc |
Speeds | |
|---|---|
 |
Dimensions
| 1975 - 1981
Utility tractor |
|---|---|
1975 - 1981 | |
Utility tractor | |
1975 - 1981 | |
|---|---|
Utility tractor |
Ford 7600 Tires | |
|---|---|
Ag front | 7.50-16 |
Ag rear | 16.9-30 |
15.5-38 | |
Dimensions | |
|---|---|
Wheelbase | 88 inches
223 cm |
Length | 145.3 inches
369 cm |
Width | 73.2 inches*With over fender with factory cab.
185 cm |
Height (hood) | 68.5 inches
173 cm |
Height (cab) | 106.6 inches
270 cm |
Clearance (front axle) | 18.2 inches
46 cm |
24 inches*Optional high-clearance front axle.
60 cm | |
Front tread | 52.5 to 80.5 inches
133 to 204 cm |
Rear tread | 52 to 80 inches
132 to 203 cm |
Rear tread | 66 to 90 inches
167 to 228 cm (power-adjust) |
Ford 7600 Weight | |
|---|---|
Shipping | 5580 lbs
2531 kg |
Operating | 7440 lbs (with cab)
3374 kg |
Ballasted | 10760 lbs
4880 kg |
Tests
| 1975 - 1981
Utility tractor |
|---|---|
1975 - 1981 | |
Utility tractor | |
1975 - 1981 | |
|---|---|
Utility tractor |
Nebraska Tractor Test 1225 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1225 | |
|---|---|
Diesel 16-speed 2WD
September 22 - October 8, 1976
Link: Nebraska Tractor Test 1225 file | |
PTO performance | |
Power at rated engine speed | 84.79 hp
63.2 kW |
Fuel use | 5.4 gal/hour
20.4 l/hour |
Power at rated PTO speed | 85.16 hp
63.5 kW |
Fuel use | 5.3 gal/hour
20.1 l/hour |
Drawbar performance | |
Max power | 65.33 hp
48.7 kW |
Fuel use | 5.3 gal/hour
20.1 l/hour |
Gear 8 used for power test. | |
Max pull | 7,779 lbs
3528 kg |
Gear 5 used for pull test. | |
Attachments
| 1975 - 1981
Utility tractor |
|---|---|
1975 - 1981 | |
Utility tractor | |
1975 - 1981 | |
|---|---|
Utility tractor |
Attachment overview | |
|---|---|
Ford 772 loader | |
Ford 774 loader | |
Ford 772QT loader |
Photos

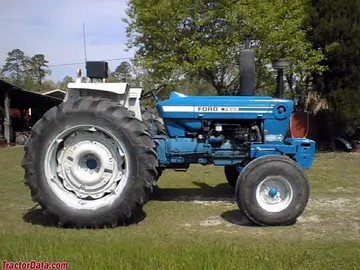

Open station Ford 7600.
Ford 7600 used as a rocket launcher by Argentine troops during the Falkland Islands War.
European Ford 7600 with cab.
