Allis Chalmers 7060

The Allis Chalmers 7060 is a tractor produced by Allis Chalmers. It is equipped with a 426 ci 7.0 L engine. The listed engine power is Diesel (listed): 192 hp / 143.2 kW. Transmission: Allis-Chalmers Power Shift. Operating weight: 11530 to 14645 pounds.

Engine Power

Diesel (listed): 192 hp / 143.2 kW

Fuel & Capacities

51 gal 193.0 L

Transmission

Allis-Chalmers Power Shift

Operating Weight

11530 to 14645 pounds

Overview

	1974 - 1981 7000 SeriesRow-Crop tractor 7000 Series Row-Crop tractor

Production
Manufacturer	Allis Chalmers
Row-Crop tractor
Built in West Allis, Wisconsin, USA
Total built	7,796
Original price	$48,696
In 1978, serial number 6001, the Allis Chalmers model 7060 received the new Accousta Cab II with console shift, new seating, and new lighting. The tractor's color changed from an orange chassis to black.

Allis Chalmers 7060 Engine
Allis Chalmers 7.0L 6-cyl diesel
Fuel tank	51 gal 193.0 L
	13 gal (optional auxiliary tank) 49.2 L
Engine details ...

Allis Chalmers 7060 Power
Engine	192 hp 143.2 kW
PTO (claimed)	161 hp 120.1 kW
Drawbar (tested)	141.67 hp 105.6 kW
PTO (tested)	161.51 hp 120.4 kW
Performance test details ...

Mechanical
Two-wheel drive
Final drives	inboard planetary
Steering	hydrostatic power
Differential power wet disc brakes
Accousta cab standard, A/C optional. Accousta cab II available in 1978.

Hydraulics
Type	closed center
Valves	2 or 3
Pump flow	22 gpm 83.3 lpm
Total flow	45 gpm 170.3 lpm
Steering flow	9.5 gpm 36.0 lpm

Tractor hitch
Rear Type	3/2
Rear lift (at 24"/610mm)	6,680 lbs 3030 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000
	540/1000 (optional)

Dimensions & Tires
Wheelbase	106 inches 269 cm
Weight	11530 to 14645 pounds
Front tire	11.00x16
Rear tire	18.4x38
Full dimensions and tires ...

Electrical
Ground	negative
Batteries	2
	4 (optional)
Battery volts	12

References

Loaders - picking up where the others leave off published in 1979, by Allis Chalmers
7040/7060/7080 - The Rising Power in Farming published in 1976, by Allis Chalmers
7080/7060/7045/7020 - All Four, Big Power published in 1978, by Allis Chalmers
7080/7060/7045/7020 - The Power Squadron published in 1980, by Allis Chalmers
7080/7060/7045/7020/7010 - The Power Squadron published in 1981, by Allis Chalmers
Operator's Manual 7060 (271395) published in 1977

Engine

Engine Detail — 426 ci / 7.0 L Diesel

Manufacturer	Allis Chalmers 670I
Configuration	intercooled turbocharged diesel, 6-cylinder, liquid-cooled Inline
Displacement	426 ci 7.0 L
Bore/Stroke	4.25x5.00 inches 108 x 127 mm
Power	192 hp 143.2 kW
Air cleaner	dry with pre-cleaner
Compression	16:1
Rated RPM	2300
Firing order	1-5-3-6-2-4
Starter volts	12
Coolant capacity	32 qts 30.3 L
Intake valve clearance	0.015 inches (hot) 0.381 mm
Exhaust valve clearance	0.015 inches (hot) 0.381 mm
Oil capacity	25 qts 23.7 L

Transmission

Transmission options
20-speed partial power shift
12-speed partial power shift

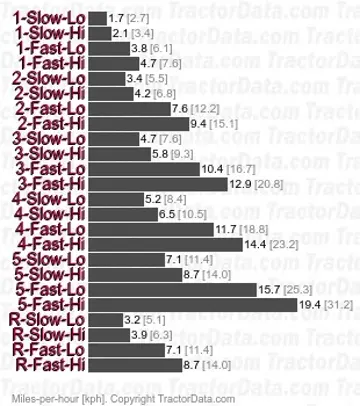

Transmission — Allis-Chalmers Power Director

Transmission	Allis-Chalmers Power Director
Type	partial power shift
Gears	20 forward and 4 reverse
Oil capacity	29.6 qts 28.0 L
Oil type	Allis-Chalmers Power Fluid 821
The Power Director uses a gear shift, range shift, and the two-speed Power Director. The gear shift lever selects one of five forward gears, or reverse. The range shift lever selects between high and low ranges. The tractor must be stopped, and the clutch pedal used, to change the gear or range. Once in motion, the Power Director is operated by means of two foot switches that can be switched, on the move, without the clutch.
With 18.4x38 rear tires.

	Allis-Chalmers Power Fluid 821

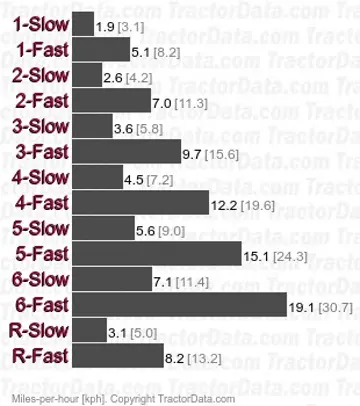

Transmission — Allis-Chalmers Power Shift

Transmission	Allis-Chalmers Power Shift
Type	partial power shift
Gears	12 forward and 2 reverse
Oil capacity	28 qts 26.5 L
Oil type	Allis-Chalmers Power Fluid 821
The power shift transmission uses a gear shift and range shift. The range shift lever selects one of two ranges. The tractor must be stopped, and the clutch used, to change the range. The gear shift selects one of six forward gears, and reverse. The gears can be shifted while the tractor is in motion, simply by moving the lever. The clutch is needed to switch from a forward gear to reverse.
With 18.4x38 rear tires.

	Allis-Chalmers Power Fluid 821

Dimensions

Allis Chalmers 7060 Tires
Ag front	11.00x16
Ag rear	18.4x38
Ag front	10.00x16
	14Lx16
Ag rear	23.1x30
	24.5x32
	30.5x32
	15.5x38
	16.9x38
	20.8x38
	18.4x42

Dimensions
Wheelbase	106 inches 269 cm
Length	163 inches 414 cm
Width	95.5 inches 242 cm
	119.5 inches (optional long axle) 303 cm
Ground clearance	22 inches (front axle) 55 cm
	28 inches (rear axle) 71 cm
Rear axle	3.75 inch diameter 95 mm
Rear axle	4.00 inch diameter 101 mm

Allis Chalmers 7060 Weight
Shipping	11,530 lbs 5230 kg
Operating	13,990 lbs (Power Director) 6345 kg
	14,645 lbs (Power shift) 6642 kg
Ballasted	20,560 lbs 9326 kg

Allis Chalmers 7060 Height
Steering wheel	87 inches 220 cm
Hood	69 inches 175 cm
Exhaust	117 inches 297 cm

Tests

Tractor Tests
NTTL 1167: diesel Power Director 2WD
NTTL 1197: diesel Power Shift 2WD

Nebraska Tractor Test 1167
Diesel Power Director 2WD October 30 - November 11, 1974 Link: Nebraska Tractor Test 1167 file
PTO performance
Power at rated engine speed	161.51 hp 120.4 kW
Fuel use	10.2 gal/hour 38.6 l/hour
Power at rated PTO speed	160.44 hp 119.6 kW
Fuel use	10.0 gal/hour 37.9 l/hour
Drawbar performance
Max power	136.12 hp 101.5 kW
Fuel use	10.0 gal/hour 37.9 l/hour
Gear 4-Slow-Hi used for power test.
Max pull	17,370 lbs 7879 kg
Gear 1-Slow-Hi used for pull test.

Nebraska Tractor Test 1197
Diesel Power Shift 2WD November 5 - 19, 1975 Link: Nebraska Tractor Test 1197 file
PTO performance
Power at rated engine speed	161.42 hp 120.4 kW
Fuel use	10.2 gal/hour 38.6 l/hour
Power at rated PTO speed	161.65 hp 120.5 kW
Fuel use	10.1 gal/hour 38.2 l/hour
Drawbar performance
Max power	141.67 hp 105.6 kW
Fuel use	10.3 gal/hour 39.0 l/hour
Gear 1-High used for power test.
Max pull	17,851 lbs 8097 kg
Gear 2-Low used for pull test.

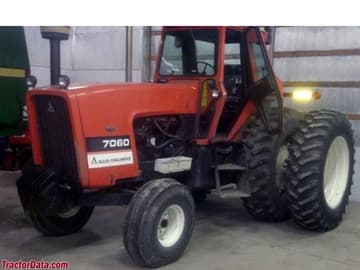

Photos

Allis Chalmers 7060

Recommended Implements & Sizing Guide

Engineering recommendations for Allis Chalmers 7060 based on its 192 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	5 to 7 Bottom (18")5 - 7 铧 (45 cm)	Commercial / Field Scale	Large acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Allis Chalmers 7060.

Estimated Continuous Field Runtime: 5.1 hrs

Approximately 5.1 hours of continuous field operation at ~75% rated power on a full tank (51 gal / 193.1 L).

Estimated 75% Load Fuel Burn~10 gal/hr (37.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
