CaseIH MXM175 Maxxum

The CaseIH MXM175 Maxxum is a tractor produced by Caseih. It is equipped with a 456.5 ci 7.5 L engine. The listed engine power is Diesel (listed): 174 hp / 129.8 kW. Transmission: 19 forward and 6 reverse. Operating weight: 15795 lbs 7164 kg.

Engine Power

Diesel (listed): 174 hp / 129.8 kW

Fuel & Capacities

105 gal 397.4 L

Transmission

19 forward and 6 reverse

Operating Weight

15795 lbs 7164 kg

Overview

	2002 - 2007 Maxxum SeriesRow-Crop tractor Maxxum Series Row-Crop tractor

Production
Manufacturer	CaseIH
Row-Crop tractor
Built in Basildon, England
The Case IH MXM175 is similar to the New Holland TM175.

CaseIH MXM175 Engine
CNH 7.5L 6-cyl diesel
Engine details ...

CaseIH MXM175 Transmission
19-speed full power shift
Transmission details ...

CaseIH MXM175 Power
Engine	174 hp 129.8 kW
PTO (claimed)	145 hp 108.1 kW
Drawbar (tested)	123.6 hp 92.2 kW
PTO (tested)	160.8 hp 119.9 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Differential hydraulic wet disc brakes
Cab standard with air-conditioning.

Capacity
Fuel	105 gal 397.4 L
Hydraulic system	23.75 gal 89.9 L

Hydraulics
Type	closed-center load sensing
Capacity	23.75 gal 89.9 L
Pressure	2750 psi 189.6 bar
Valves	4 to 5
Pump flow	31.7 gpm 120.0 lpm
SCV flow	26 gpm 98.4 lpm
Total flow	48.7 gpm 184.3 lpm
Steering flow	17 gpm 64.3 lpm

Tractor hitch
Rear Type	III/II
Control	electronic lower-link sensing
Rear lift (at 24"/610mm)	17,085 lbs 7749 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/1000 (1.375)

Dimensions & Tires
2WD Wheelbase	111.8 inches 283 cm
4WD Wheelbase	112.5 inches 285 cm
Weight	15795 lbs 7164 kg
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	120
Battery CCA	1300
Battery volts	12
Battery AH	176

References

MXM Series Maxxum Tractors published in 2004, by Case IH

Engine

Engine Detail — 456.5 ci / 7.5 L Diesel

Manufacturer	CNH
Configuration	turbocharged intercooled diesel, 6-cylinder, liquid-cooled
Displacement	456.5 ci 7.5 L
Bore/Stroke	4.40x5.00 inches 112 x 127 mm
Power	174 hp 129.8 kW
Air cleaner	dual paper elements
Compression	17.0:1
Rated RPM	2200
Starter volts	12
Oil capacity	20 qts 18.9 L
Coolant capacity	27.6 qts 26.1 L

Transmission

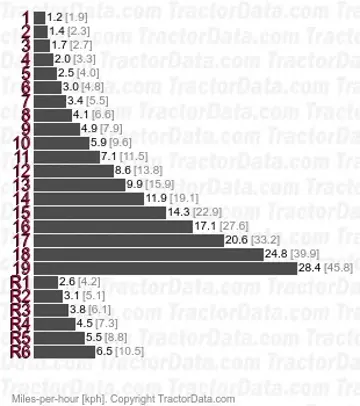

Transmission — 19 forward and 6 reverse full power shift

Type	full power shift
Gears	19 forward and 6 reverse

Dimensions

CaseIH MXM175 Tires

Dimensions
2WD Wheelbase	111.8 inches 283 cm
4WD Wheelbase	112.5 inches 285 cm
2WD Length	184.2 inches 467 cm
4WD Length	189.4 inches 481 cm
Height (cab)	113.4 inches 288 cm
	118.9 inches (suspended cab) 302 cm
4WD Operating weight	15795 lbs 7164 kg
Rear axle	4.13 by 112 inches 104 by 2844 mm
4WD Front tread	60 to 88 inches 152 to 223 cm
Rear tread	60 to 88 inches 152 to 223 cm

Tests

OCED Tractor Test 2143
Diesel 19-speed 4WD September 1, 2003 - April 1, 2004 Link: OCED Tractor Test 2143 file
PTO performance
Max power	160.8 hp 119.9 kW
Fuel use	9.0 gal/hour 34.1 l/hour
Power at rated engine speed	151.3 hp 112.8 kW
Fuel use	9.5 gal/hour 36.0 l/hour
Power at rated PTO speed	154.2 hp 115.0 kW
Fuel use	9.4 gal/hour 35.6 l/hour
Drawbar performance
Max power	123.6 hp 92.2 kW
Fuel use	9.5 gal/hour 36.0 l/hour
Gear 9 used for power test.

Photos

CaseIH MXM175 Maxxum

Recommended Implements & Sizing Guide

Engineering recommendations for Caseih MXM175 Maxxum based on its 174 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	5 to 7 Bottom (18")5 - 7 铧 (45 cm)	Commercial / Field Scale	Large acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih MXM175 Maxxum.

Estimated Continuous Field Runtime: 11.6 hrs

Approximately 11.6 hours of continuous field operation at ~75% rated power on a full tank (105 gal / 397.5 L).

Estimated 75% Load Fuel Burn~9 gal/hr (34.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
